Floating Aqua Solar Systems

Fixed flat panel installation, using matrix cell flotation system

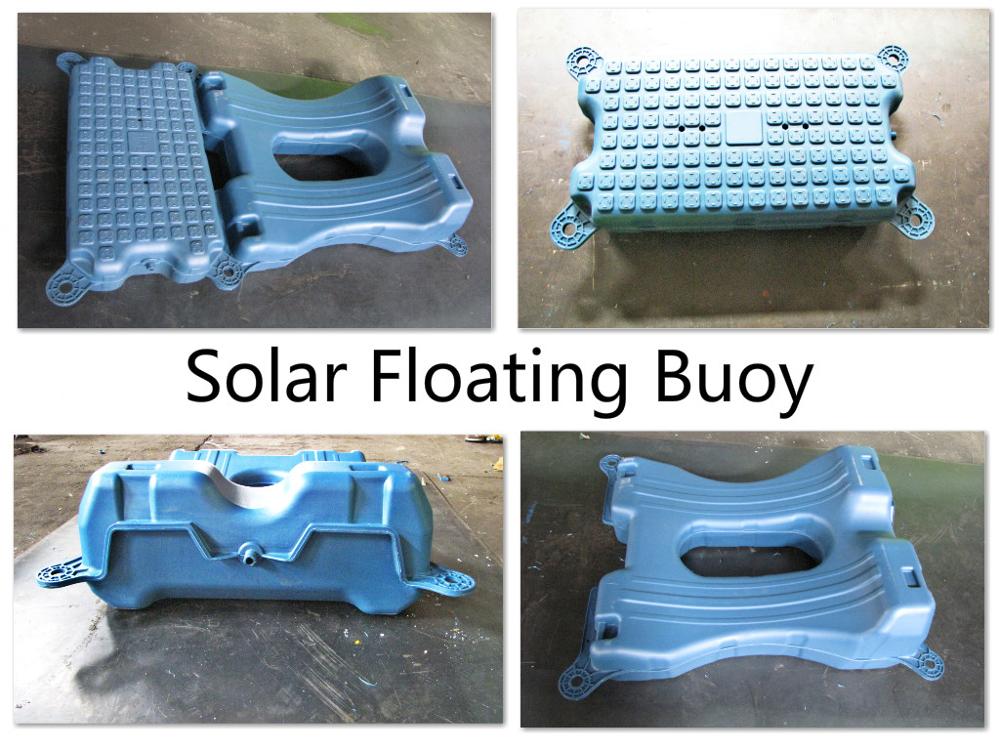

Float Asseblly.

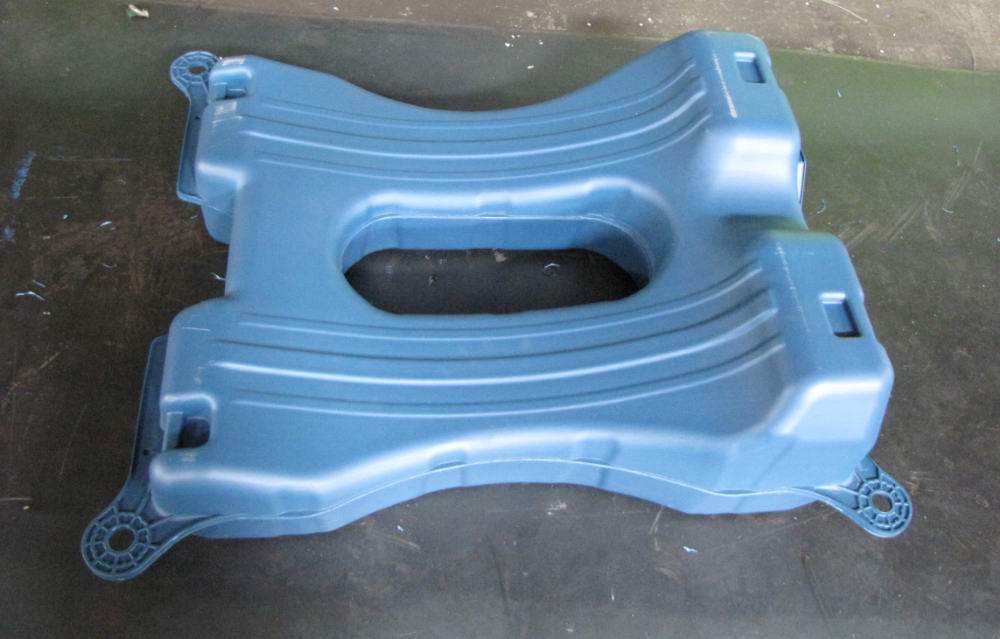

The Tilt Float.

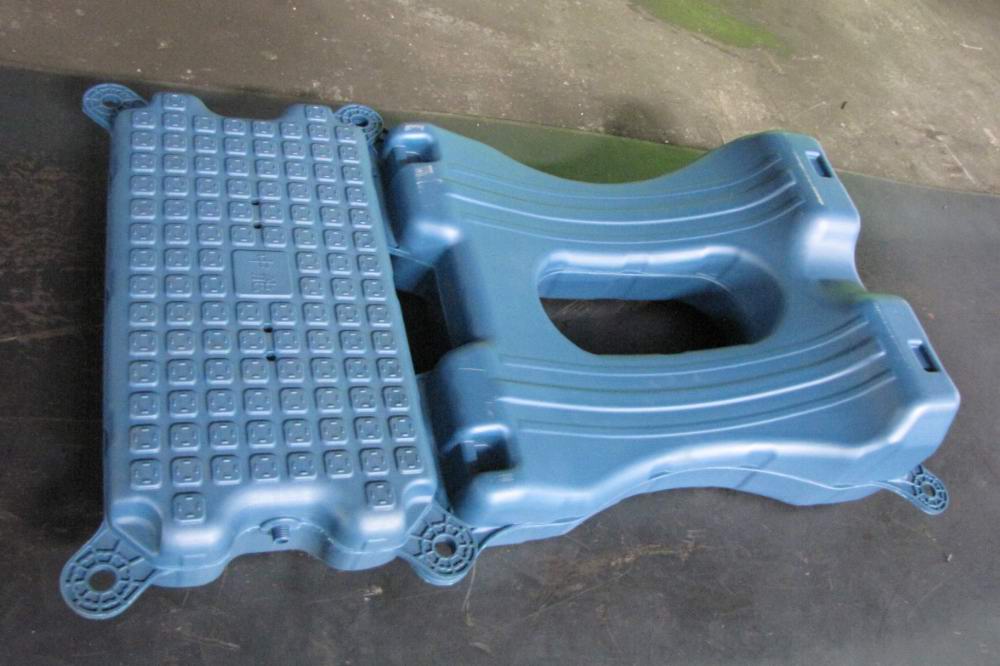

Walking Platform & Tilt Float.

Float

Float

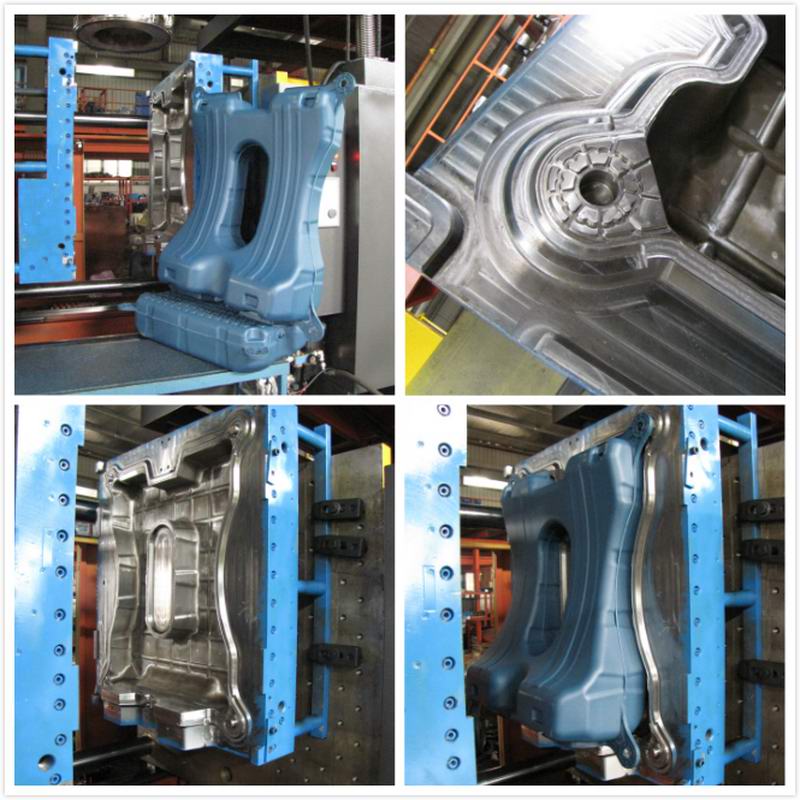

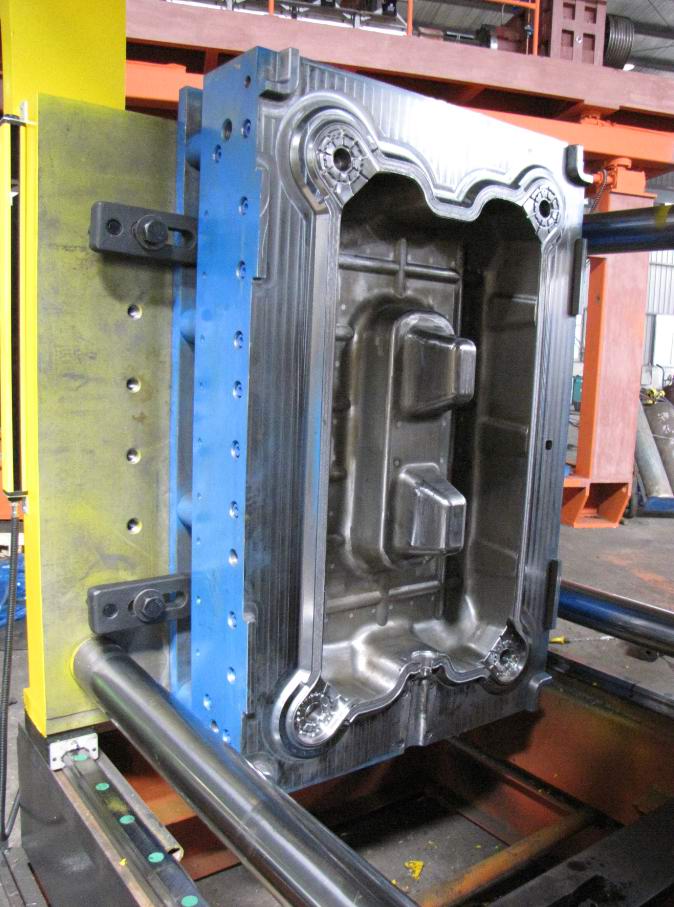

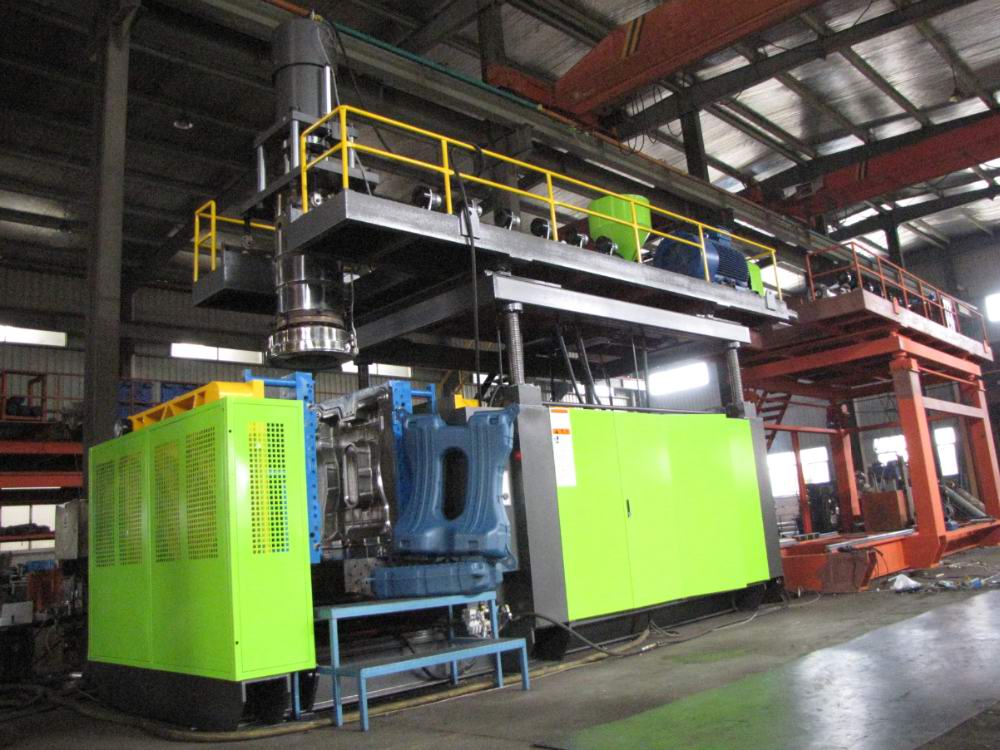

Float Machine.

The Advantages of Floating Solar Array;

  • No land occupation.
  • Reduce dust/soil pollution.
  • Modular design, easy install and maintain.
  • Water cooling effect on modules to generate more power.
  • Modules Floating on water face.
  • Floating array can be assembled on foreshore, then floated and anchored into position.
  • Tethered to weights or mooring lines as required.
  • Modules can be walked on safely during assembly & maintenance.
  • Light coloured modules, suited for BiFacial solar panels to increase energy harvesting.

Floating Solar Array method save cost of site foundation and trench work.

Main Cell Floating Body 1100x1000x450 mm
Buoyancy Module-1 160 ±5kg
Weight 11.3 ±0.4kg
Aux Floating Body 1000 x 500 x 200 mm
Buoyancy Moduel-2 75 ±5kg
Weight 5.3 ±0.4kg
Groove floating body 1100 x 500 x 200 mm
Buoyancy Moduel-3 85 ±5kg
Weight 5.7 ±0.4kg
Floating body (6 brackets) 1100 x 500 x 200 mm
Buoyancy Moduel-4 85 ±5kg
Weight  6± 0.4kg

------ / ------

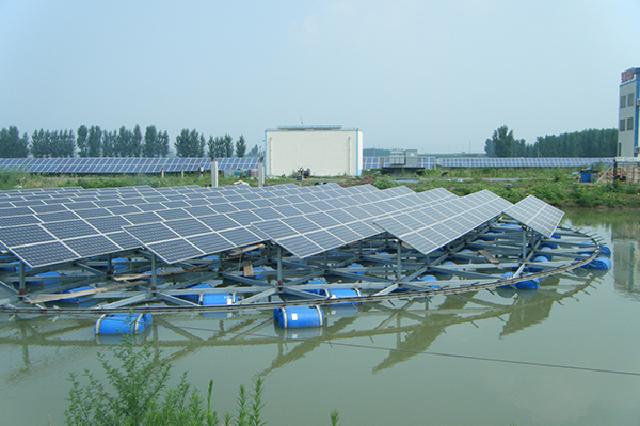

Single-Axis_Aqua_Racking

The above is a steel Fixed Tilted floating solar array, this unit can also be converter to a Tilted Single Axis Tracking array (SAT) to increase the generating capacity by 20%~25%, compared with that of the stationary type.

Our solar tracker uses high-precision astronomy algorithm to calculate the angle of the sun, combined with high-performance micro controller (DSP core), making the system accurate and reliable, not rainy days interference, using international first-line brand tilt sensor, real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.

Project

Reference values



Project

Reference values

Control mode:

time control

Material:

hot dip zinc steel

Tracking precision:

《1°

Communicating Protocol:

RS485-MODBUS

Power supply:

90~264VAC,47~63HZ

Electricity Consumption:

≤0.25(KWh)

Azimuth tracking range:

-45°~+45°

Design life:

>25 years

Power consumption every:

1Kwh

Working temperature:

-25°C~65o°

Standard:

GBT 29320-2012

Certification:

CE,CQC, ISO9001, ISO14001, OHSAS18001

Floating Modules are ordered on a supply & demand basis, as per project, if interested in Costing an AQUA Solar Farm click here and supply the dimensions and depth of your dam or water catchment area & any questions you have.

Depending on the array design, one 6mt (20') shipping container provides approx. 80~100m2 Aqua Array, 11mt  (40') shipping container will provide approx. 160~200m2 Aqua Array.
