6kWh Gen-Power Silenced Diesel GenSet

INFORMATION:

NB: We recommend all Gen-Set be used in conjunction with a Energy Storage & Hybrid Inverter! Largely due to Fuel savings made as when a Hybrid Inverter is notified of low battery voltage, then the Gen-Set will only need be operated for shorter periods (as programmed) until the battery voltage either reaches a programmed voltage or time period to simply top up the battery's until the Sun rise, where Solar array takes over again.

This GenSet has 74db @7mt sound level, and is backed by an *Australian 500 hour/ 1 year warranty.

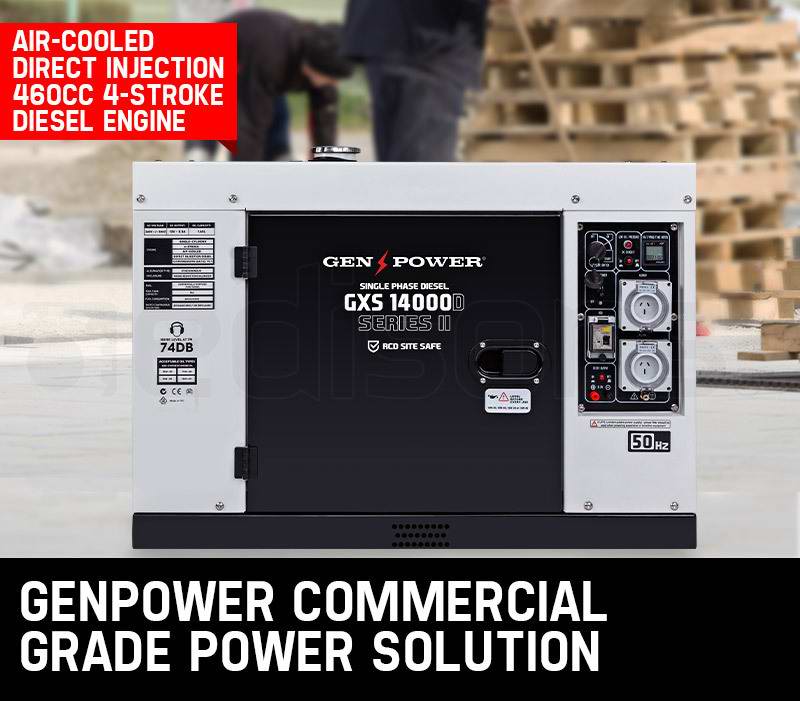

The latest Gen-Power is the Series II GXS1400D Single Phase, Air cooled, direct injection 460cc, 4 stroke Diesel Generator, capable of producing a seriously high 8400W maximum/6000W continuous output of power.  It features dual heavy-duty IP66 rated 15A 240V power outlets, as well as an 8.3A 12V DC outlet to accommodate charging a battery or battery bank, depending on your requirements.  This new Series II, features an RCD safety switch for additional OH&S assurance.  The unit’s user-friendly design is facilitated by its electric key start, overload protection, low oil indicator and multifunctional LCD monitor.

The GXS1400D has been purpose built with dual swing doors for easy-access, aiding its minimal service requirements.  The dual swing access doors not only carry the thick sound insulation to provide super-quiet operating, they've been made extra-large for hassle free internal system access.  Internally, the generator features an oversized 36Ah dry battery, air cooled fanning, an extra-large 16L fuel tank, and an easy-flow oil drain drip tray.

Externally, it’s built with a quality 3mm high tensile powder coated steel enclosure, secured with an assembly of heavy-duty bolts, and includes optional roller wheels for when transporting is required.  Furthermore, following on from the Series I, Gen-Power has designed the Series II to be one of the only generators certified to run on diesel, bio-diesel and accept blended natural plant based fuels*.  This amazing eco-friendly technology produces exactly the same power outputs as conventional gensets, but with up to 85% less harmful emissions.

The Gen-Power diesel generator is perfect for home, farm and Industrial use as a portable power supply or where mains power is temporarily unavailable. Its heavy-duty, high-performance nature delivers an abundance of energy for all kinds of applications.

Rated continuous operation is 4hrs (100% load) 6 hours (50% load). Please refer to the Service Schedule included in the Manual for more information.

Imagery:

10kWh GenSet

10kWh GenSet

10kWh GenSet

10kWh GenSet

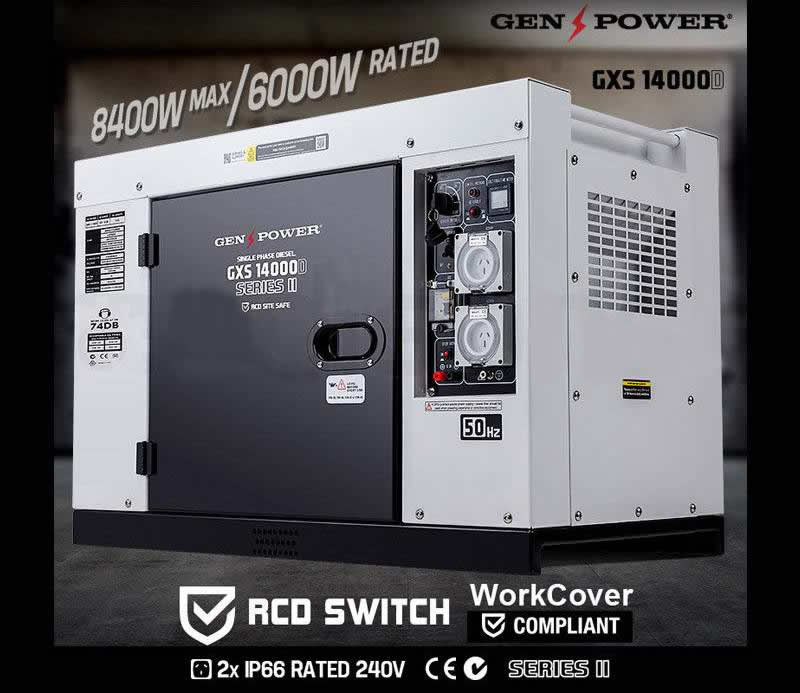

Sales Brochure.

6'000W (8'400W Peak)

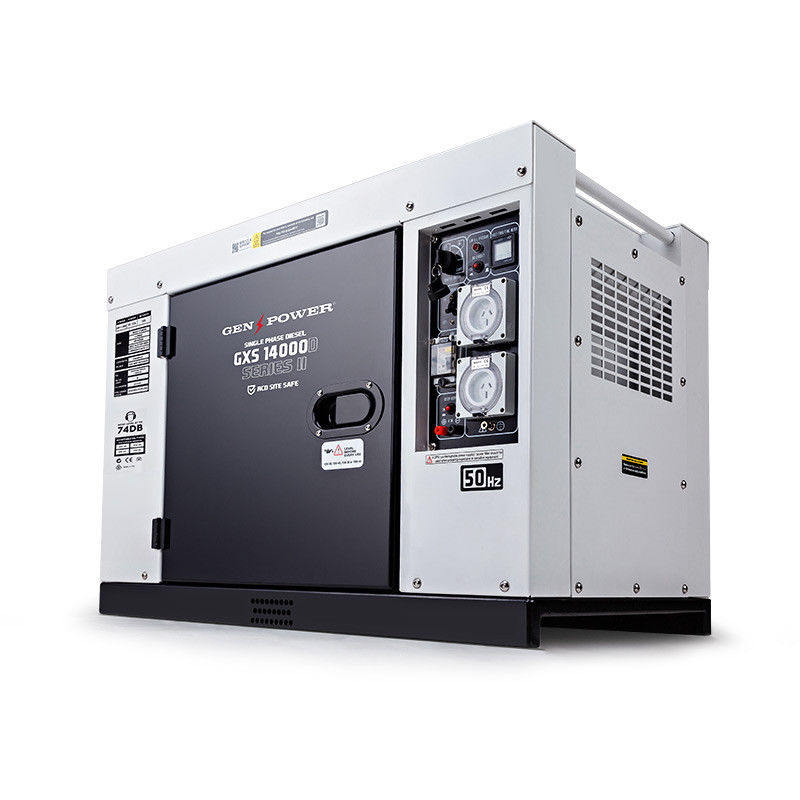

Side view.

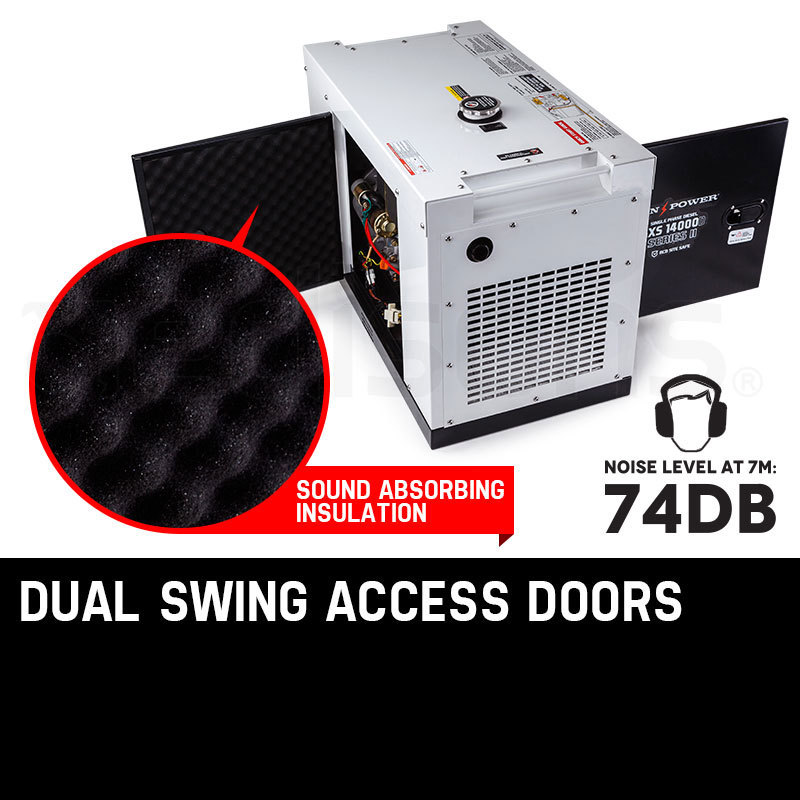

Dual Door Access.

10kWh GenSet

10kWh GenSet

10kWh GenSet

10kWh GenSet

Side view.

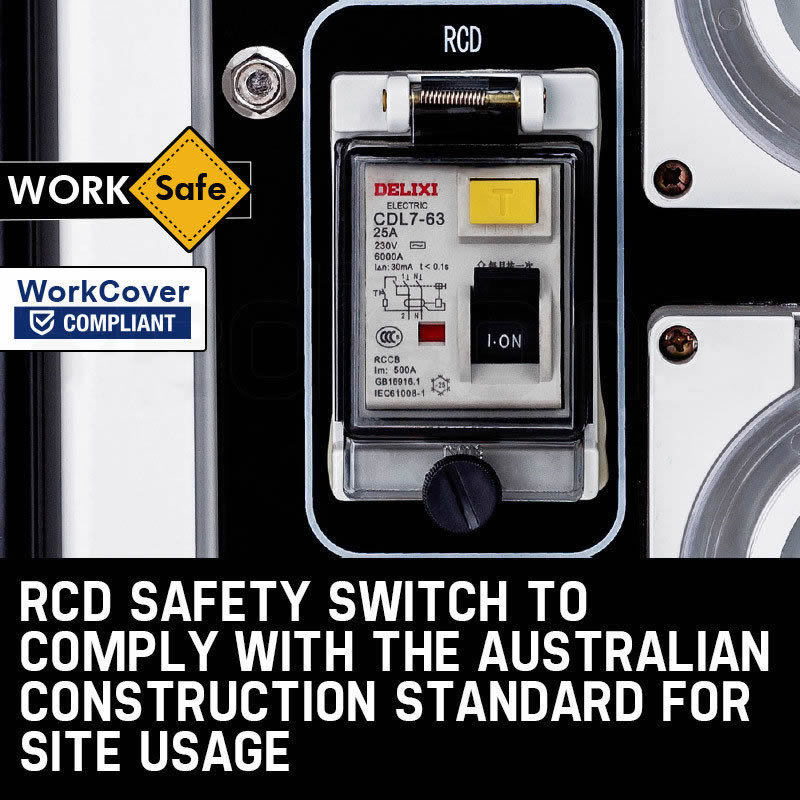

Safety cut-off Switch.

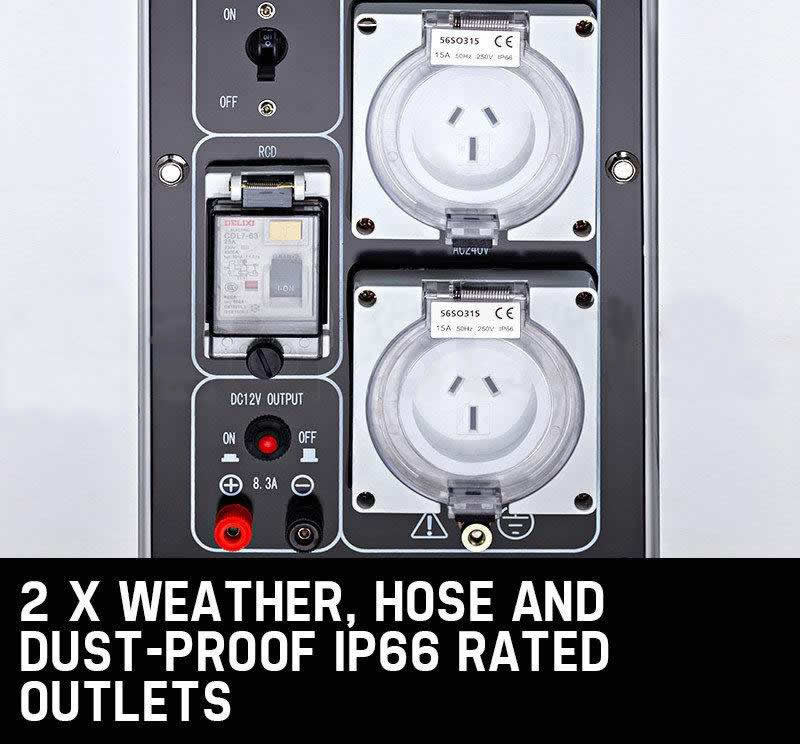

Output Panel.

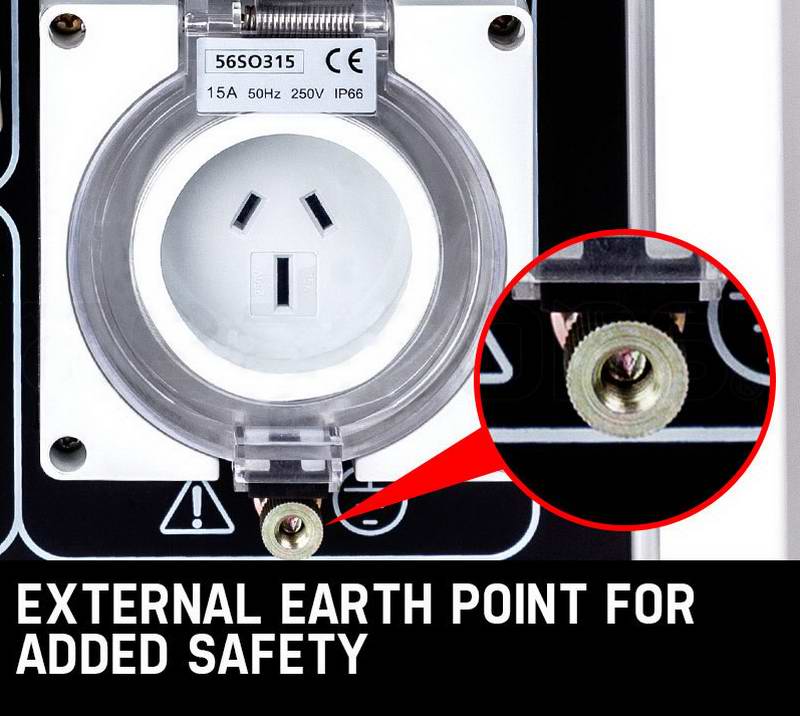

Earth Safety point.

10kWh GenSet

10kWh GenSet

10kWh GenSet

10kWh GenSet

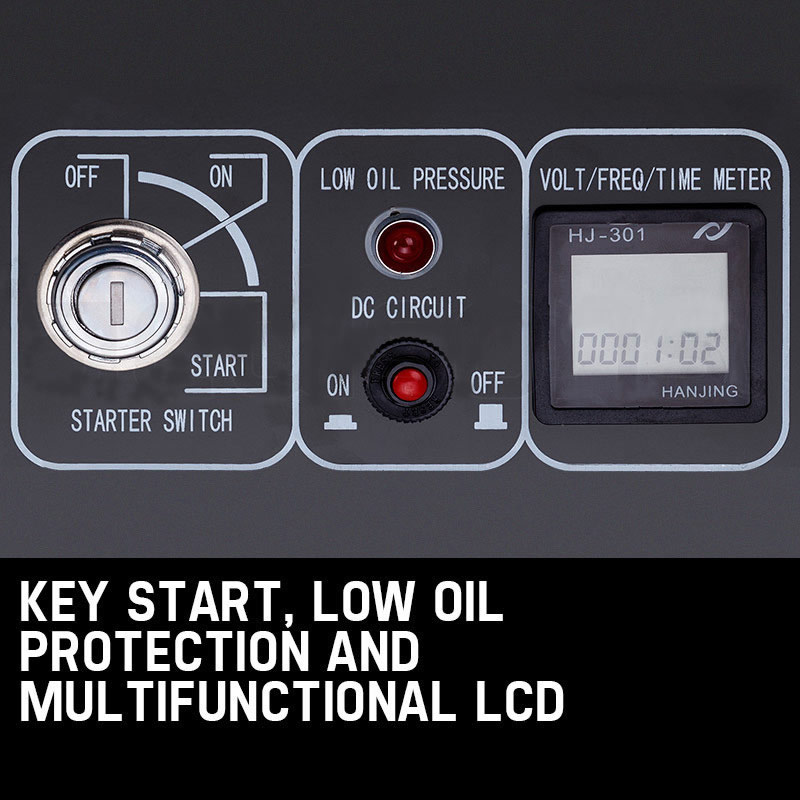

Start/Protection panel.

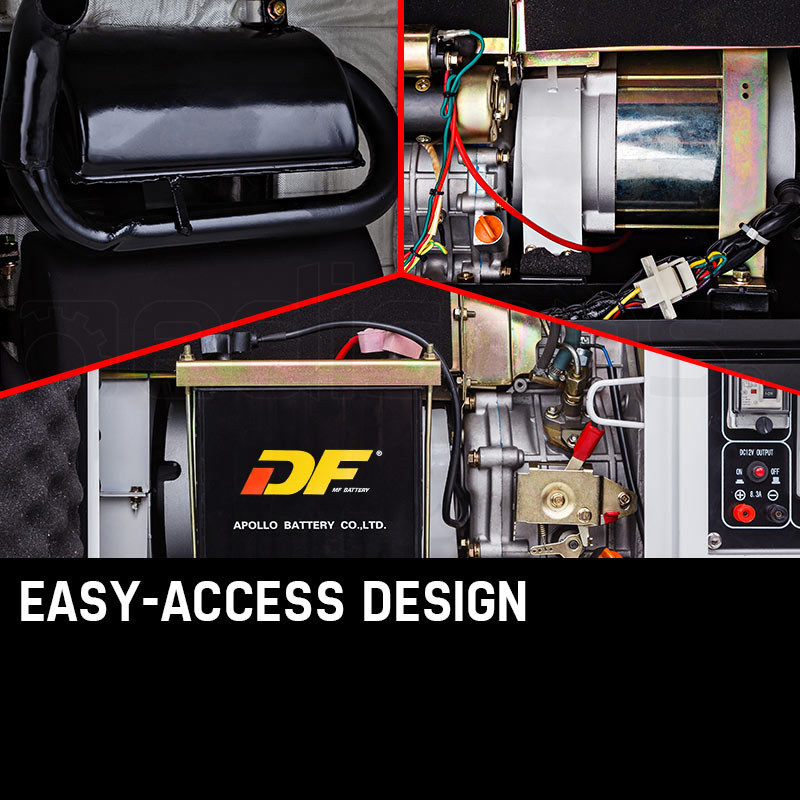

Unit Design.

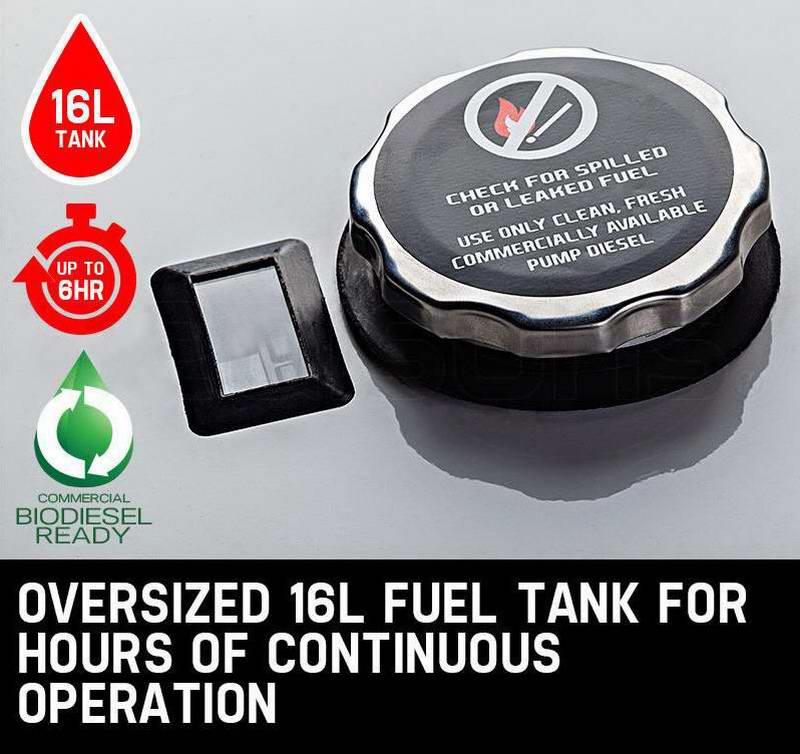

Fuel Cap & Guage.

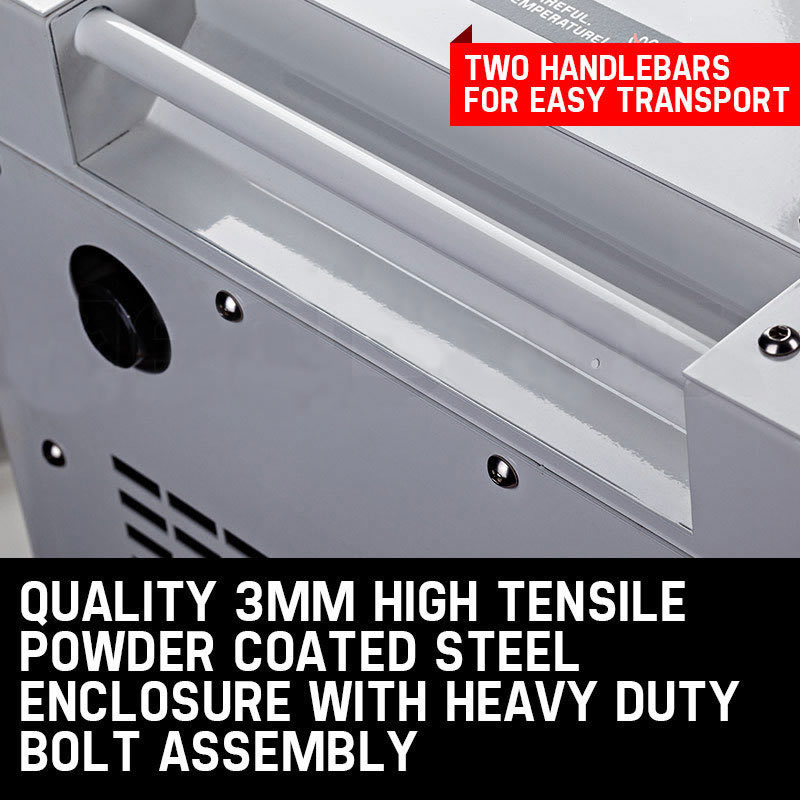

Carry Handel.

10kWh GenSet

10kWh GenSet

10kWh GenSet

10kWh GenSet

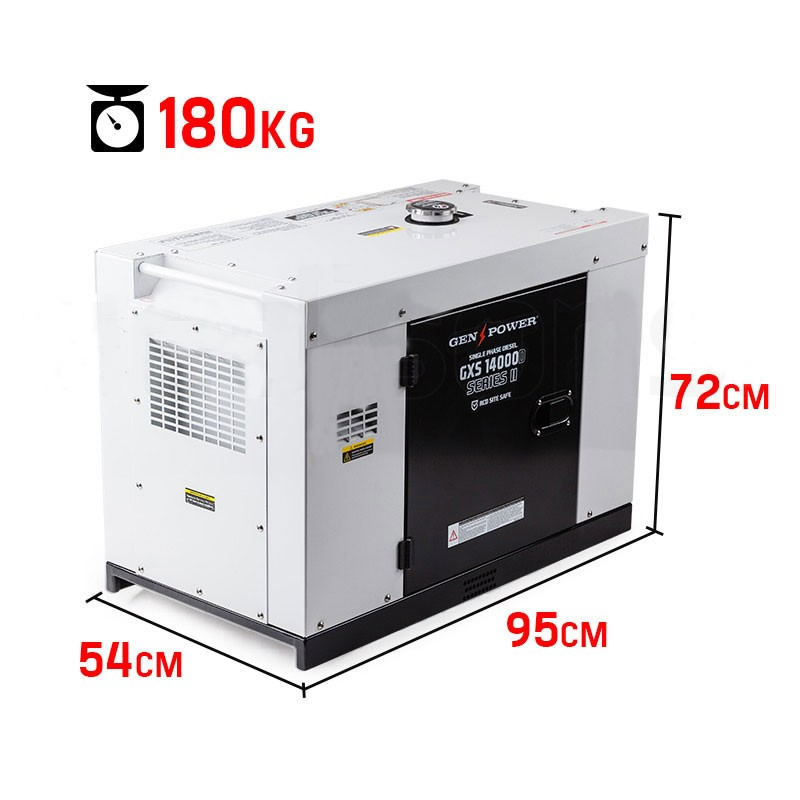

GenSet Dimensions.

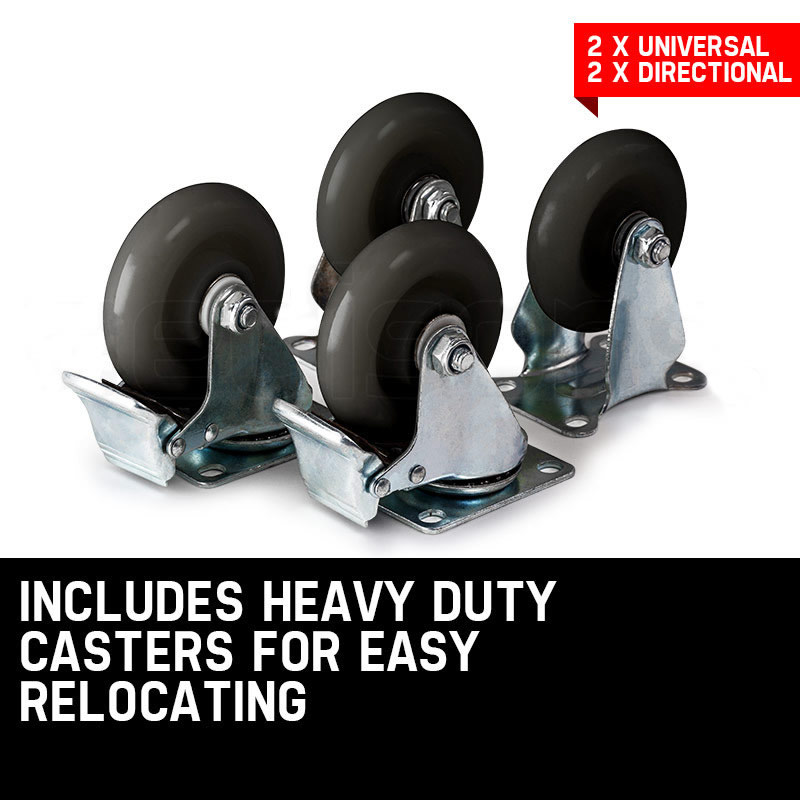

Wheels & Casters.

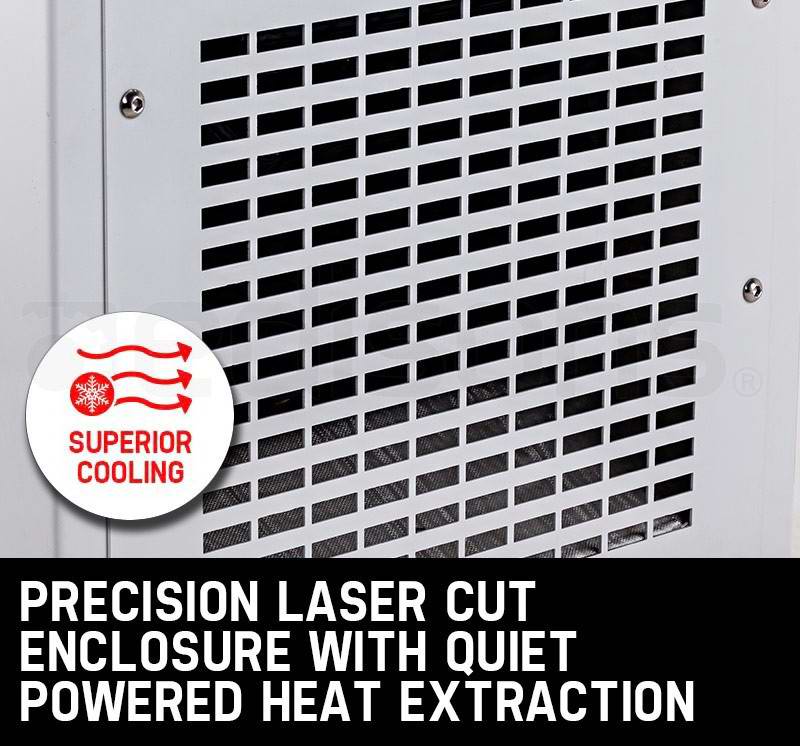

Ventilation panel.

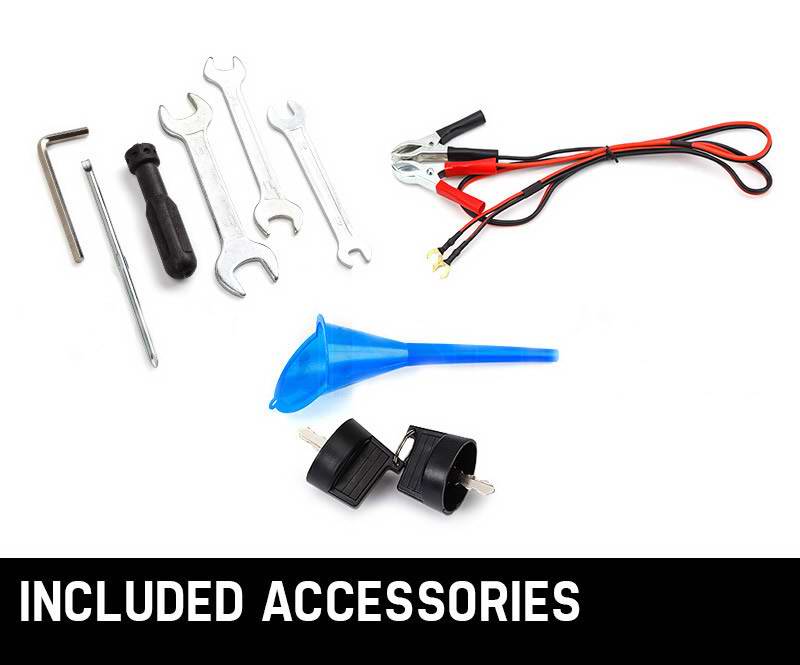

Accessories.

10kWh GenSet

10kWh GenSet

10kWh GenSet

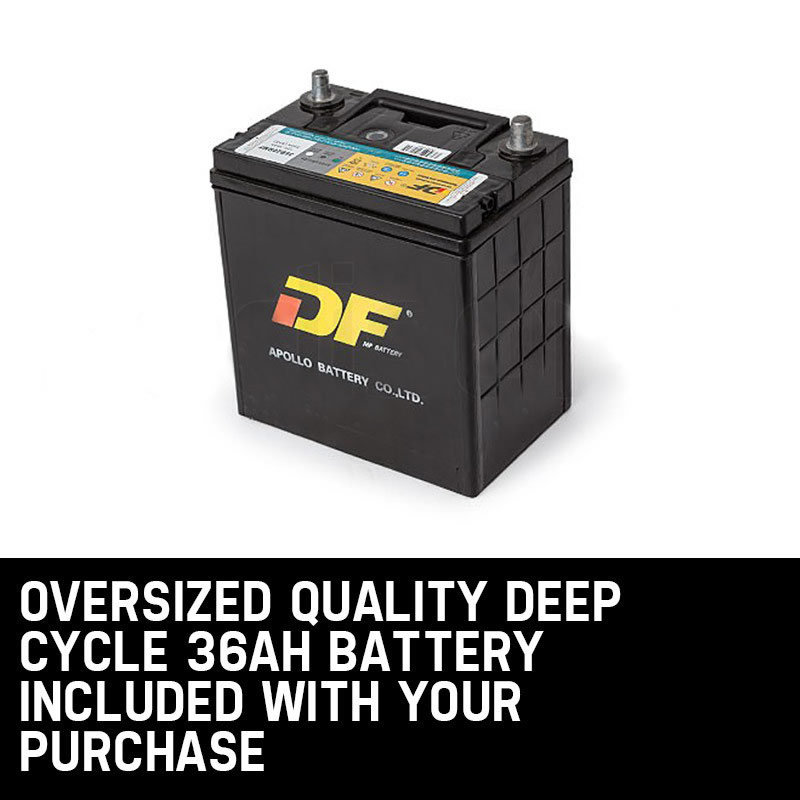

36Ah Battery.

Engine protections.



If the Gen-Power GXS1400D Series II Diesel Generator suit your power needs Order it now!

Specifications:

  • Max Output: 8400W / 8.4kW / 8.4kVA
  • Continuous Rated Output: 6000W / 6kW / 6kVA
  • PLEASE NOTE: 'Continuous Rated Output' is the power this generator consistently and reliably provides.
  • We strongly recommend that you consider this figure when determining whether this model suits your requirements.
  • Power Outlets: Dual IP66 rated 15A 240V
  • AC Voltage: 240V 50Hz
  • DC Output: 12V - 8.3A
  • Battery: 36Ah dry battery
  • Safety Switch: Residual-Current Device
  • Alternator Type: Permanent brush magnet
  • Dual IP66 rated 15A 240V power outlets
  • 8.3A 12V DC outlet
  • RCD safety switch
  • Reliable single chip digital AVR - automatic voltage regulation
  • Electric key start
  • Overload protection
  • Low oil indicator
  • Multifunctional LCD monitor
  • Extra-large dual swing access doors
  • Sound insulation
  • Air cooled internal fanning
  • Easy-flow oil drain drip tray
  • Quality 3mm high tensile powder coated steel enclosure
  • Heavy-duty bolt assembly
  • Bonus roller wheels
  • Certified to run on diesel, bio-diesel and accepts blended natural plant based fuels*
  • Up to 85% less harmful emissions
  • Note: Power produced by generators can fluctuate +/- 8%. Do not attempt to connect any sensitive electronic devices without a suitable surge protector, or sending the power through a pure-sine inverter first.
  • ENGINE
  • Electric key start
  • Type: Single-cylinder, 4-stroke
  • Air-cooled, direct injection diesel
  • Engine Oil Type: 10W-30 / 10W-40 / 15W-30 / 15W-40 non-synthetic engine oil (not included with purchase)
  • Displacement: 460cc single
  • Engine Output: 13hp/ 3600rpm
  • Compression Ratio: 19:1
  • Fuel Consumption: 280 (g/kWh)
  • Fuel: Commercially available diesel
  • Fuel Tank Capacity: 16L
  • Rated Continuous Operation: 4hrs (100% load) 6 hours (50% load)
  • Oil Capacity: 1.65L
  • Noise Level at 7m: 74db
  • Enclosure: Sound insulated 3mm high tensile powder coated steel
  • **Fuels must be qualified commercially available
  • SKU: GEN1DSGPRA14K

IN THE BOX

  • 1x Gen-Power GXS1400D Series II Single Phase Diesel Generator
  • 2x Electric Ignition Keys
  • 1x Fuel Funnel
  • 1x Set Alligator Jumper Leads
  • 1x Set Roller Wheels
  • 1x Flue
  • 1x Tool Kit

SIZE & WEIGHT

  • Carton Weight: 190 kg
  • Carton Dimensions (W x D x H): 98 x 57 x 72 cm
  • Product Weight: 180 kg
  • Product Dimensions (W x D x H): 95 x 54 x 72 cm
