6kW Silenced Solar Generator with 5.376kWh LiFePO4 Battery.

ORDER this All-In-One *$2'695 Portable Inverter & Battery Micro Power Grid that will have no trouble operating a full size Single Phase Home, as this powerhouse unit comes with a reliable 6kW pure sine wave inverter (12kW Peak), makes it one of the Toughest & Best Portable Micro Power Grid on the market !

NB: 6kW Power supply is well above Australian Single Phase Power of 3.6kW (3'600W) supplied to Australian homes !

This 75kg portable Solar Generator includes an internal 5.37kWh LiFePO4 Battery, the Energy Storage can easily be increased to 172kWh by adding up to as additional 31 x 5.37kWh Weatherproof Battery modules !

This Solar Generator comes with an impressive 5 year Warranty !

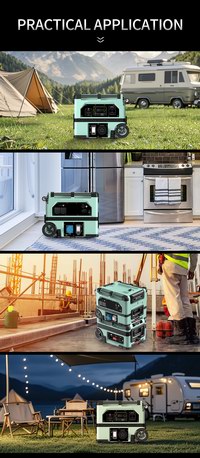

This unit will Easily Power a home, cabin, camp-site, caravan or motorhome, so you can enjoy air-conditioner, lighting, fresh food, cold drinks, and all your electronic gadgets for the kids or to simply check a your emails etc...

A perfect energy supply unit you can rely on to Power your Home permanently, or wherever you just want to use it to go away for the weekend, the night, or working on an off-grid site/project, this 6kW Generator will easily provide all the energy you need.

This Solar Generator can be Charged using a maximum 6kW Solar Array, or just a Few Solar Panels from 10VDC~150VDC (Max. 2'000W) Solar Array, with the Purchase of an optional Low Solar Circuit Board.

Two of these Solar generator can be Paralleled to provide 12kW Power for more demanding use and can be turned On & Off Manually or Automatically using the Gen-Mate APP, as well as Remotely controlled if there is an internet connection.

Alternatively, if you are running low on Solar Power you can Charge the Solar Generator using this made to match 4.5kW Fuel Generator, this 4.5kW Fuel Generator can be Ordered with an Automatic Start Function if the Batteries connected the Solar Generator get Low, and the Solar Generator.

This Solar Generator also has an Optional to add a Wind Turbine Charge Circuit Board, as well as an add-on Option to use Low-Voltage Solar Charging (10~150VDC, Max 2000W) Circuit Board !

To better understand your Power needs, use this Generator Buying Guide & Testing Calculator, as it cuts out the guesswork by explaining what you need to take into consideration. Furthermore there is a table of common appliances, so you can get a clear idea of what Power is required for your needs.

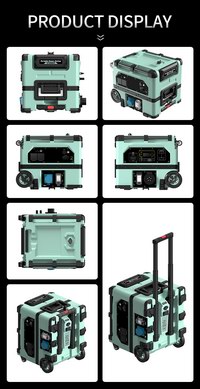

Solar Generator Imagery:


DP6000iL Silent Operation.	Front Control Panel.	Rear Charging Panel.

Side Output Panel.	Energy Storage Expansion.	Manual & Automatic APP Control.

Australian Control Panel.	Australian Plugs.	240V, 30A Output.

You can Charge an Electric Vehicle.	The Strong Chassis with 6kW Inverter and 5.37kWh Battery.	Connect additional 31x 5.376kWh 105Ah Energy Storage Batteries.

Parallel up to max. 172kWh Energy Storage with up to 31 additional 5.376kWh Batteries.	Parallel Battery Connection Cable. Parallel Battery Manual.	5.37kWh Prismatic Battery Cell packs sitting at the Factory.

Type-2 EV Input Charging Plug.	Type-2 EV Charging Lead.	DP6000iL Circuit Board.
	Video-1	Video-2
105Ah LiFePO4 Battery Cell.

Portable Power Station:

Comes with Built in 5.367kWh (5367Wh) LiFePO4 battery with professional bidirectional Solar inverter, support for 6kW charging and discharging.
Support various quick charging methods such as utility, solar, EV charger and wind turbine.
Up to 31 extra batteries can be connected in Parallel, providing a total capacity of 172kWh.
Built in maximum 450V PV MPPT controller, can be used as an integrated up-to 6kW household photovoltaic energy storage power station.
Unprecedented portability with "zero gravity" & all-terrain roller device.
Built in minimum 10V MPPT controller for portable solar panel, can be used as a portable solar power station.
The system is TT Earthed.
IP23 protection grade & dust-proof kit.

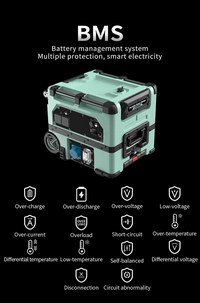

Multiple system security protection.
The intelligent control and monitor by smart-phone APP.
Conformed to EU and US security certification.
Better quality with 5 years warranty.

If this Solar Generator suit your needs Order it Here !

PRODUCT SPECIFICATIONS

Model	DP6000iL
Dimensions / New Weight	650 x 475 x 550mm, 75kg.
Battery	LiFePO4, 5376Wh (5.37kWh), 105Ah, 51.2V, >3'000 Cycles to 80%+ Capacity.
Operating Temperature	Discharging Temperature: -20°C~50°C, Charging Temperature: 0°C~45°C
Transfer Tie	≤10ms (UPS Mode), ≤20ms (Appliance Mode)
Interactive Interface	LCD Panel / APP
Optional Functions	Charging Input: Low Voltage Solar ? EV Charging / Wind Turbine.

OUTPUT

AC Output	Rated Power	6000VA@220~240V, 5000VA@100~120V
	Peak Power	12000VA / 10000VA
	Output Wave Form	Pure-Sine Wave, THD <3%
	Rated Voltage	100V/110V/120V, 220V/230V/240V
	Rated Frequency	50/60Hz
DC Output	Cigarette Lighter Port	12V / 10A
	5521 Port	12V / 6A
	USB	5V/3.1A, QC3.0 (5V/3.4A, 9V/2A, 12V/1.5A)
	Type-C	PD60W/100W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, 20V/5A)

CHARGING INPUT

AC	Wall Outlet & AC Generator	220~240VAC Output	110~120VAC@Appliances Mode, 180~250VAC@UPS Mode 16A MAX, Max. 3600W, 2 hours fully Charged
		110~120VAC Output	90~130VAC 16A MAX, Max. 1800W, 4 hours fully Charged
Hi-Voltage Solar	MPPT Control System	220~240VAC Output	80~450VDC 27A MAX, Max 6000W, 1 hour fully Charged Solar Energy can be fed to the Grid
		110~120VAC Output	120~450VDC 22A MAX, Max 5000W, 1.5 hour fully Charged Solar Energy can be fed to Grid
Low Voltage Solar (1)	MPPT Control System		10~150VDC, Max 2000W, 3 hour fully Charged
EV Charger (1)	Mennekes IEC 62196 (Type 2) SAE J1772 (Type 1) GB/T 20234	220~240VAC Output	110~250VAC@Appliances Mode, 180~250VAC@UPS Mode 32A MAX, Max. 6000W, 1 hours fully Charged
		110~120VAC Output	90~130VAC 50A MAX, Max. 5000W, 1.5 hours fully Charged
Wind (1)	3AC Port		3AC 48~60V, Max 2000W, 3 hours fully Charged

OPTIONAL EXTRAS (Sold Separately)

Extra Batteries	51.2V, 5.57kWh, Up to 31 Units (Total 172kWh)
SC Series Smart Inverter Generator	100~240VAC, 1.8~3.7kW
DW Series Wind Turbine Input & Circuit Board	48VAC, 600~2000W
DSF Series Solar Panels Input & Circuit Board	41V~82V, 200~600W, IP66
DVC Series EV AC Charger & Circuit Board	100~240VAC, 25~50A MAX

NOTES

(1) These Charging Functions are Optional. The Low-voltage Solar Charger, EV Charger, and Wind Charger are Optional equipment, which can Charge the Power Station at the same time.

(2) Whether the product can be Charged or Discharged depends on the actual temperature of the Battery pack. The maximum Charging or Discharging power is related to the ambient temperature and SOC of the Battery.

POWER & ENERGY:

Power Output: 6kW (12kW Peak for short time)
Energy Type: 5.376kWh LiFePO4 Battery.
Rated Continuous Operation: Depends on the Power Load.

IN THE BOX

1x 4500 Series Single Phase Generator.
Set Roller Wheels fitted.
1x Tool Kit.

SIZE & WEIGHT

Product Weight: 75kg (Dry)
Product Dimensions (W x D x H): 65 x 48x 55cm
Crated Weight: 78kg.
Crated Dimensions (W x D x H): 62x 50x 60cm

* Approx. Cost @$0.66 Exchange Rate +Delivery.
