11kW (Single Phase) or 12kW (3 Phase) Solar Generator with 7.68kWh LiFePO4 Battery.

Order this All-In-One *$3'995 Portable Inverter & Battery Power Station, that will have no trouble operating a full size Single Phase Property or Home, as this powerhouse unit comes with a reliable 12kW pure sine wave inverter (24kW Peak), makes it one of the Toughest & Best Portable Micro Power Grid on the market !

NB: 12kW Power supply is well above Australian Single Phase Power of 3.6kW (3'600W) supplied to Australian homes !

This 100kg portable Solar Generator includes an internal 7.68kWh LiFePO4 Battery, the Energy Storage can easily be increased to 245kWh by adding up to as additional 31 x 11.776kWh Weatherproof Battery modules !

This Solar Generator comes with an impressive 5 year Warranty !

This unit will Easily Power a home, cabin, camp-site, caravan or Motorhome, so you can enjoy air-conditioner, lighting, fresh food, cold drinks, and all your electronic gadgets for the kids or to simply check a your emails etc...

A perfect energy supply unit you can rely on to Power your Home permanently, or wherever you just want to use it to go away for the weekend, the night, or working on an off-grid site/project, this 12kW Generator will easily provide all the energy you need.

This Solar Generator can be Charged using a maximum 2x 9kW Solar Arrays, or just a Few Solar Panels from 80VDC~650VDC (Single Phase Max. 2x 5kW - Three Phase Max. 2x 9kW) Solar Arrays, the Purchase of an optional Low Solar Circuit Board allows for 12VDC~150VDC Max. 1'200W~2'00W Solar Array.

Two of these Solar generator can be Paralleled to provide 24kW Power for more demanding use and can be turned On & Off Manually or Automatically using the Gen-Mate APP, as well as Remotely controlled if there is an internet connection.

Alternatively, if you are running low on Solar Power you can Charge the Solar Generator using this 4.2kW Fuel Generator, this 4.5kW Fuel Generator can be Ordered with an Automatic Start Function if the Batteries connected the Solar Generator get to Low Voltage.

This Solar Generator has an Option to add a Wind Turbine Charge Circuit Board !

To better understand your Power needs, use this Generator Buying Guide & Testing Calculator, as it cuts out the guesswork by explaining what you need to take into consideration. Furthermore there is a table of common appliances, so you can get a clear idea of what Power is required for your needs.

Solar Generator Imagery:


1x EP12000iL Unit Silent Operation.	2x EP12000iL Units Stacked in Parallel to provide = 24kW Power.	1x EP12000iL Unit & 1x Additional 11.77kWh Batteries Stack beneath.

Gen-Mate WiFi Operation.	AC Battery Charging.	Low Voltage Solar Optional.

Bi-Direction Solar Inverter.	Twin Wireless Charging Station.	Zero Gravity Wheels & Tow Handle.

Output Ports.	Station Cooling Vents.

System & Battery Configurations.	Type-2 EV Input Charging Plug.	Type-2 EV Charging Unit & Lead.

EP12000iL Portable Power Station:

Comes with Built in 7.68kWh (7680Wh) LiFePO4 battery with professional bi-directional Solar inverter.

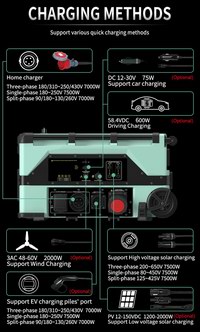

Support various quick charging methods such as utility, solar, EV charger and wind turbine.
Up to 31 extra 11.77kWh batteries can be connected in Parallel, providing a total capacity of 365kWh.
Built in maximum 450V PV MPPT controller, can be used with two 5kW Solar Arrays.
Unprecedented portability with "zero gravity" & all-terrain roller device.
IP43 protection grade & dust-proof kit.
Multiple system security protection.
The intelligent control and monitor by smart-phone APP.
Conformed to EU and US security certification.
Better quality with 5 years warranty.

If this Solar Generator suit your needs Order it Here !

PRODUCT SPECIFICATIONS

Model	EP12000iL	EP12000B (Extra Battery)
Dimensions / New Weight	840 x 670 x 490mm, 100kg.	840 x 610 x 345mm, 90kg
Battery	LiFePO4, 5376Wh (7.68kWh), 105Ah, 51.2V, >3'000 Cycles to 80%+ Capacity.	LiFePO4, 11776Wh, 105Ah, 51.2V, >3'000 Cycles to 80%+ Capacity.
Operating Temperature	Discharging Temperature: -20°C~50°C, Charging Temperature: 0°C~45°C
Transfer Time	≤10ms (Typical)	N/A
Interactive Interface	LCD Panel / APP	LCD Panel
Optional Functions	Low Voltage Solar / EV Charger Input / AC Output Parallel / Wind Charging / EV Charger Output / Driving Charger / DC Charger.	DC Quick Charge

OUTPUT

AC Output (16~15A x 6) + (63A x 1/50A x 2 for Parallel Output) + (50A x 1 For EV Charger AC Output)	Rated Power	12000VA @Three-Phase 220~415V, 11000VA @Single-Phase 220~240V, 12000VA @Split-Phase 100~240V,	N/A
	Peak Power	24000VA @Three-Phase 220~415V, 22000VA @Single-Phase 220~240V, 20000VA @Split-Phase 100~240V,	N/A
	Output Wave Form	Pure-Sine Wave, THD <3%	N/A
	Three-Phase Rated Voltage	220V/380V, 230V/400V, 240V/415V	N/A
	Single-Phase Rated Voltage	220V/230V/240V	N/A
	Split-Phase Rated Voltage	100V/200V, 110V/220V, 120V/240V	N/A
	Rated Frequency	50/60Hz	N/A
DC Output	XT90 (x1)	12V / 30A	N/A
	Cigarette Lighter Port (x1)	12V / 10A	N/A
	5521 Port (x2)	12V / 6A	N/A
USB Output	USB (x2)	5V/3.1A,	N/A
	QC3.0 (x2)	QC3.0 (5V/3.4A, 9V/2A, 12V/1.5A)	N/A
	Type-C (x2)	PD 140W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A)	N/A
Wireless Output		2 x 15W	N/A

CHARGING INPUT

AC	Wall Outlet & AC Generator	Three-Phase	180/310~250 / 430VAC AC Input 32A MAX, Max. 7000W To Battery Charging, 70 minutes Fully Charged.	N/A
		Single-Phase	180~250VAC AC Input 16/32A MAX, Max. 7500W To Battery Charging, 70 minutes Fully Charged.	N/A
		Split-Phase	90/180~130/260VAC AC Input 16/32A MAX, Max. 7500W To Battery Charging, 70 minutes Fully Charged.	N/A
Hi-Voltage Solar	MPPT Control System	Three-Phase	200~650VDC, 2x 22A MAX, PV Input Max. 2x 9000W, Max. 7'500W To Battery Charging, 70 minutes to Fully Charged.	N/A
		Single-Phase	80~450VDC, 2x 20A MAX, PV Input Max. 2x 5500W, Max. 7'500W To Battery Charging, 70 minutes to Fully Charged.	N/A
		Split-Phase	125~425VDC, 2x 22A MAX, PV Input Max. 2x 5500W, Max. 7'500W To Battery Charging, 70 minutes to Fully Charged.	N/A
EV Charger (1)	Mennekes IEC 62196 (Type 2) SAE J1772 (Type 1) GB/T 20234	Three-Phase	180/310~250 / 430VAC AC Input 32A MAX, Max. 7000W To Battery Charging, 70 minutes Fully Charged.	N/A
		Single-Phase	180~250VAC AC Input 50A MAX, Max. 7500W To Battery Charging, 70 minutes Fully Charged.	N/A
		Split-Phase	90/180~130/260VAC AC Input 50A MAX, Max. 7000W To Battery Charging, 70 minutes Fully Charged.	N/A
Low-voltage Solar (1)	MPPT Control System		12~150VDC MAX, Max. 1200~2000W, 7 hours Fully Charged.	N/A
Driving Charging (1)	Driving Charger With XT60 Plug		58.4VDC, Max. 600W, 13 hours Fully Charged.	N/A
DC (1)	Driving Charger With Car Cigarette Lighter Input Plug		12~30V, Max. 75W, 105 hours Fully Charged.	N/A
Wind (1)	Wind Charger Inside		3VAC 48~60V, Max. 2000W, 4 hours Fully Charged.	N/A
DC Quick (1)	DC Quick Charger		N/A	N/A

ADD-ONS (Sold Separately)

EP12000B Extra Batteries	51.2V, 11.776kWh, Up to 31 Units (Total 365kWh)	N/A
SE Series Smart Inverter Generator	100~240VAC, Max. 1.8~4.5kW	N/A
DW Series Wind Turbine Input	48VAC, Max. 600~2000W	N/A
DSF Series Solar Panels Input	41V~82V, Max. 7500W	N/A
DVC Series EV AC Charger	100~240/415VAC, Max. 22000W	N/A
DDC Series Driving Charger	58.4VAC, Max. 600W	N/A
DDC Series DC Charger	58.4VAC, Max. 75W	N/A
DDC Series DC Quick Charger	58.4VAC, Max. 7000W	N/A

NOTES

(1) These Charging Input Functions are Optional. The EV Charger, Low-voltage Solar Charger, Driving Charger, DC Charger, Wind Charger, and DC Quick Charger are Optional equipment, which can Charge the Power Station at the same time.

(2) EP12000iL can support AC out-parallel function (optional). Two EP12000iL that have the same rated voltage and frequency can be operated in parallel to increase the total available output power react to max. 24kVa.

(3) Whether the product can be Charged or discharged depends on the actual temperature of the battery pack. The maximum charging or discharging power is related to the ambient temperature and SOC of battery.

POWER & ENERGY:

Power Output: 11kW or 12kW Three Phase
Energy Type: 7.68kWh LiFePO4 Battery.
Rated Continuous Operation: Depends on the Power Load.

IN THE BOX

1x EP1200iL Solar Generator.
Set Roller Wheels fitted.
1x Tool Kit.

SIZE & WEIGHT

EP12000iL Weight: 100kg (Dry)
Product Dimensions: 840 x 670 x 490mm (W x D x H)
Crated Weight: 105kg.
Crated Dimensions:: 880x 720x 550mm (W x D x H)
EP12000B 11.776kWh Extra Battery Weight: 90kg
Product Dimensions: 840 x 610 x 345mm (W x D x H)

* Approx. Size or Cost @$0.66 Exchange Rate +Delivery.
