These Lithium Iron Phosphate Batteries (LiFePO4) have many advantages:
Longer Cycle Life: Offers up to 15 times longer cycle life and 5 times longer float/calendar life than lead acid battery.
Lighter Weight: About 40% weight of a comparable lead acid battery, save
up to 60% in weight.
Quick Charge: Short charge time compared with lead acid battery.
Low Self-Discharge: Lower self-discharge compared with lead acid battery,
longer storage time without recharging.
Superior Safety: Multi-protection methods built inside to protect the battery
from overcharge, over discharge and short circuit situation.
High Efficient: Higher round-trip energy efficiency of the average (92%)
than lead acid battery 80% (discharge from 100% to 0% and back to 100%
charged).
15.36kW Wall Battery Dimension: 919mm±2mm x 525±2mm x 255±2mm (HWD), Weight: 120kg inc. Metal Casing.
15.36kWh Stackable Battery Dimension: 770±2mm x 480±2mm x 262±2mm (LDH), Weight: 120kg inc. Metal Casing.
32.77kWh Free-standing Battery Dimension: 895±2mm x 791±2mm x 268±2mm (WHD), Weight: 215kg inc. Metal Casing.
Class A prismatic EVE LiFePO4 cells.
Perfect for Off-Grid or On-Grid Solar Household, RV or Marine Applications.

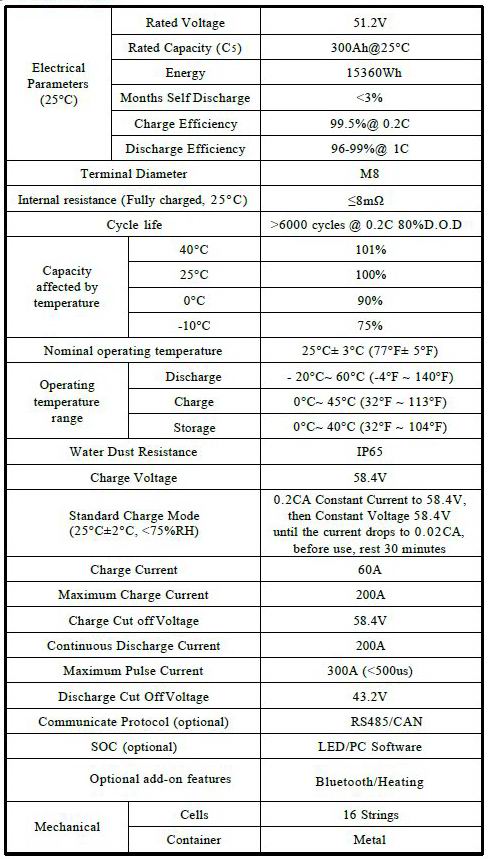

15.36kWh, 300Ah LiFePO4 Battery Specifications:
15.36kWh WALL MOUNTED BATTERY
15.36kWh, 51.2V, 300Ah LiFePO4 Energy Storage Batteries !
15.36kWh Wall Battery comes with Wheels.

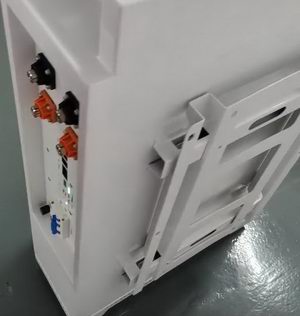

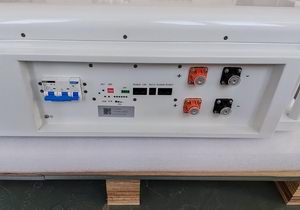

Wall Battery Side Panel.
15.36kWh Wall Bracket.

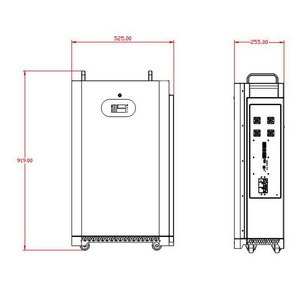

Dimensions of Wall Mountable Battery:
92cm x 53cm x 26cm (HWD)

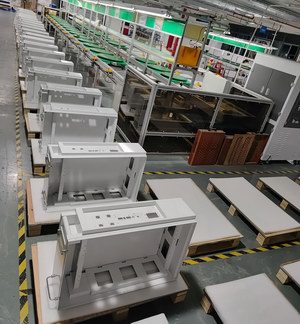

Wall Battery Cells in Production Line.

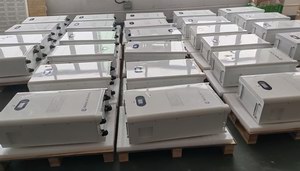

Wall Batteries ready for Shipping.
15.36kWh STACKABLE BATTERY
15.36kWh, 51.2V, 300Ah LiFePO4 Energy Storage Batteries !

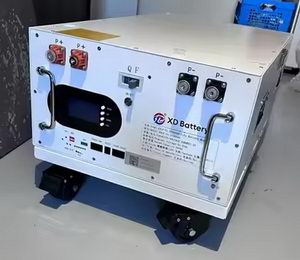

August 2025 15.36kWh Stackable model now comes with Colour Touch Screen, WiFi, Bluetooth & DC circuit breaker.

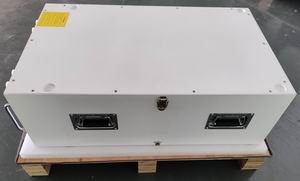

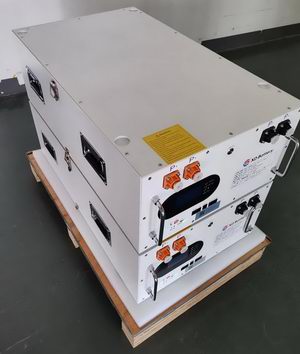

Battery on Shipping Skid.
Dimensions: 77cm x 48cm x 27cm (LWH)
Four Side Carry Handles = Two on each side.
Purchase 2 Batteries & get a FREE Heavy Duty Steel Trolley with 4 Lockable Wheels.

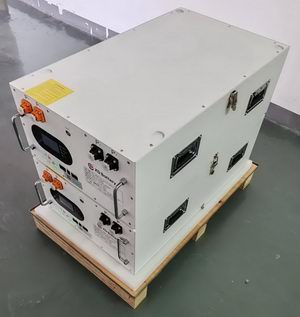

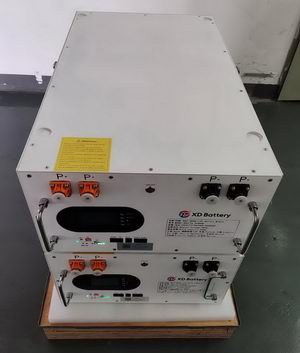

30.72kWh Stack of Batteries.
30.72kWh Stack of Batteries.

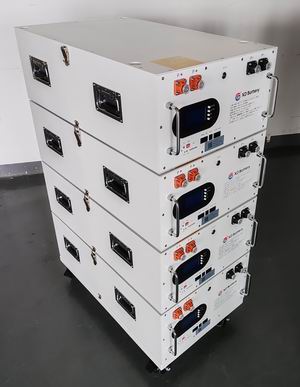

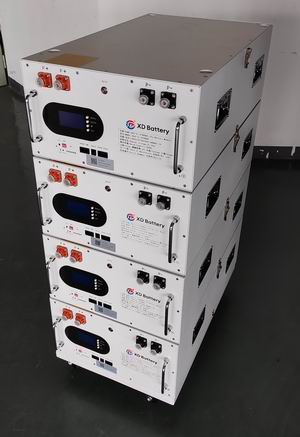

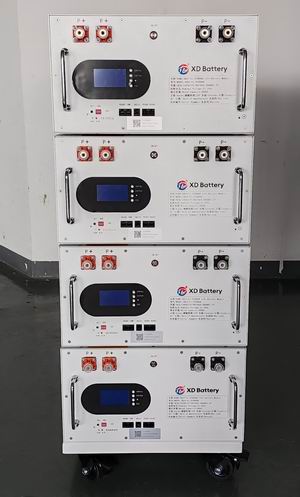

61.44kWh Stack of Batteries with Trolley.
Left Side of Batteries.
Right Side of Batteries.

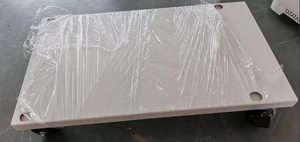

FREE Stackable Battery Trolley with Two plus Battery purchase.

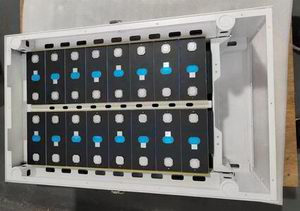

16 x 306Ah Cells = 15.36kWh that Adopts the well-known EVE304 cell from EVE Energy.

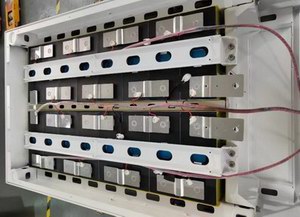

16 x 306Ah Cells = 15.36kWh that Adopts the well-known EVE304 cell from EVE Energy.

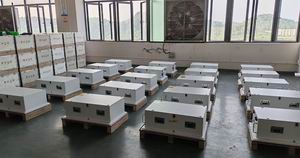

Stackable Batteries ready to Ship.

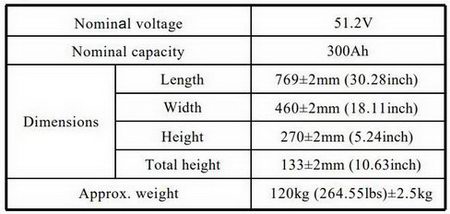

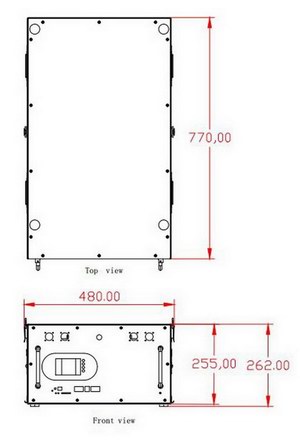

Dimensions of the Stackable Battery:
26cm x 48cm x 77cm (HWD)

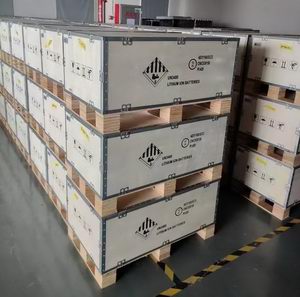

Plywood Crated Batteries on Export Skids.
Crate Dimensions for either: 85x54x41cm.
Crated Weight is: 130kg.

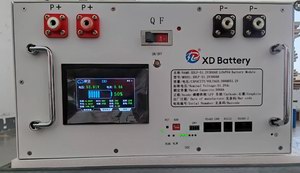

15.36kWh Touch Screen Stackable Battery.
15.36kWh Touch Screen Wall Battery.
32.77kWh Touch Screen Free-standing Battery.
32.77kWh FREESTANDING BATTERY
32.77kWh, 51.2V, 600Ah LiFePO4 Energy Storage Batteries !

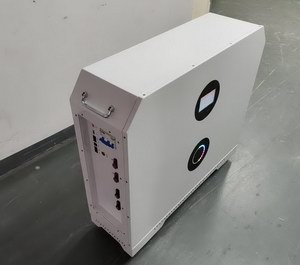

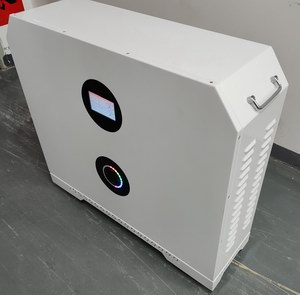

32.77kWh Free-standing Battery.

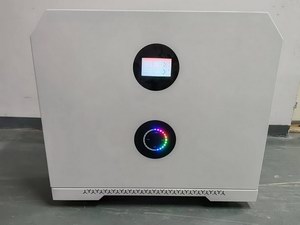

32.77kWh Free-standing Battery.
Unit Weighs 214kg ±2.5kg.
Crated Shipping Weight: 230kg

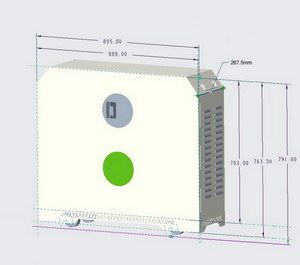

32.77kWh Battery dimentions.

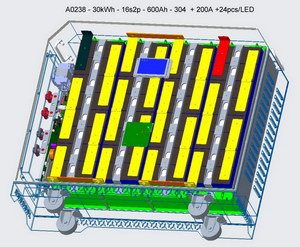

32.77kWh Battery has 16x 340Ah REPT Cells.
The 15.36kWh Battery Adopts 16 x 306Ah well-known EVE 304Ah Cells from EVE Energy, the 32.77kWh Battery Adopts 16x 340Ah REPT Cells, both providing excellent quality and performance, ensuring a long lifespan and high stability of the battery Cells.
Download the 15.53MB EasyBMS-Tools_V1.09.zip Software, to access the BMS in the XD Batteries.
