MERITSUN POWERWALL-1 BATTERYS

Installing Multiple Modules requires more Wall/Storage area, but that allows you to remove a Module if maintenance or repairs are needed, without disrupting your Power Supply.

Meritsun LiFePO4 batteries come with a minimum 3 year warranty based on;

• 3'600 Cycle Life @80% DOD (±10 years).
• 6'000+ Cycle Life (±16+ years) at 60% DOD, depending on usage!

So, the more Energy Storage you have, the longer it will Power you Premises.

LiFePO4 batteries are Lightweight, Affordable & sold in Single units or large capacity Tower Cabernet's.

The 26kWh and 52kWh towers are recommended by the Manufacturer to use 10~30kW inverter.

User Manual;

• Download Meritsun 10.24kWh and 5.12kWh LiFePo4 Battery User Manual.
  We recommend everyone invest in Energy Storage equal to at least One Days Energy Consumption !

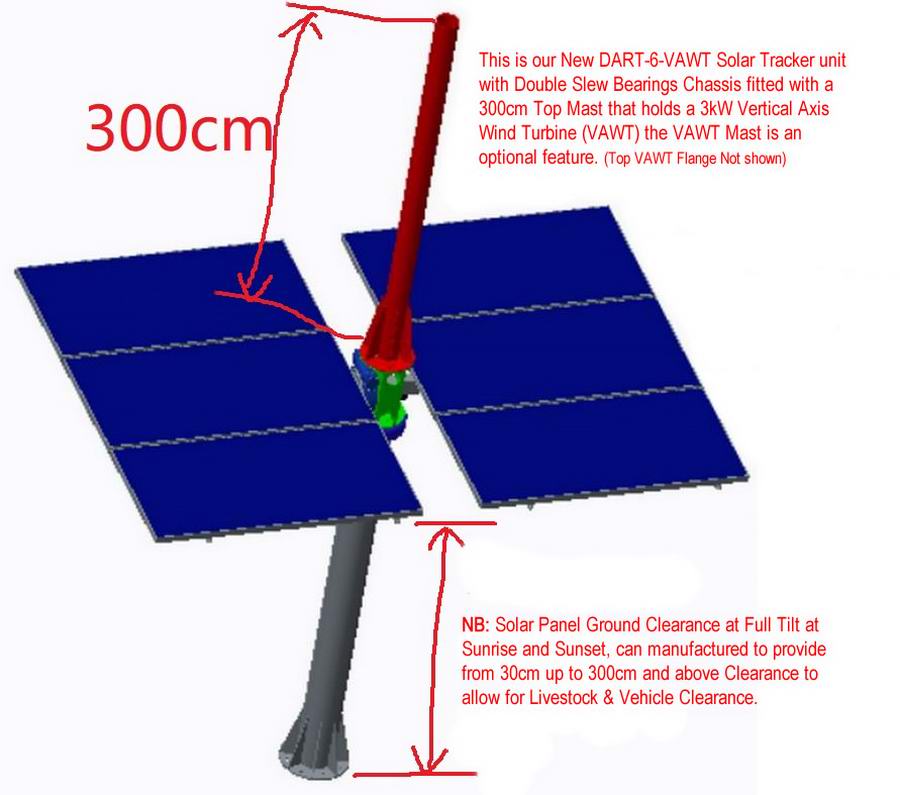

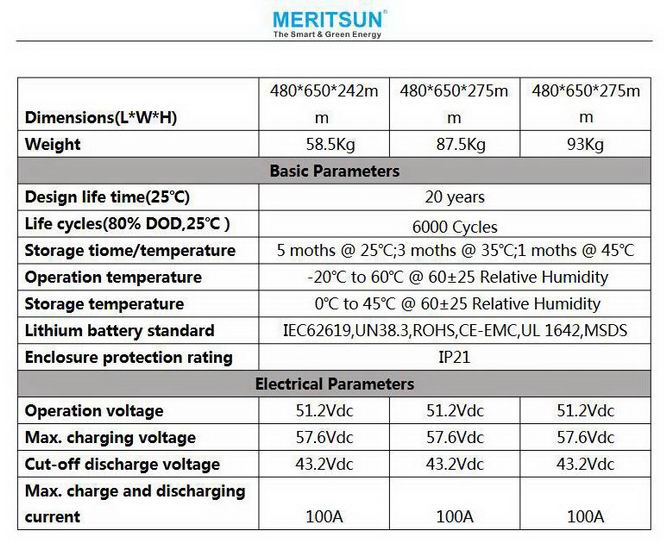

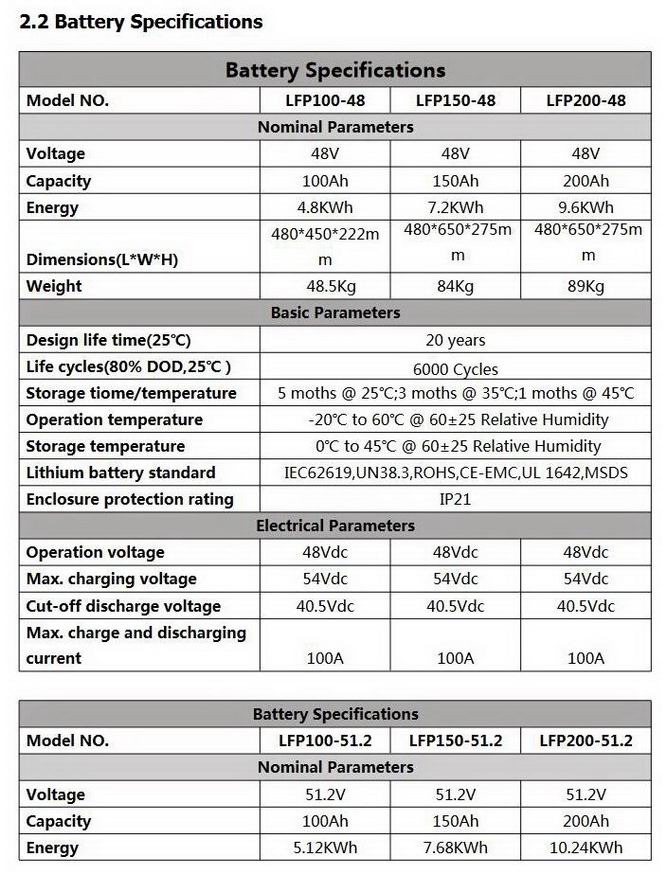

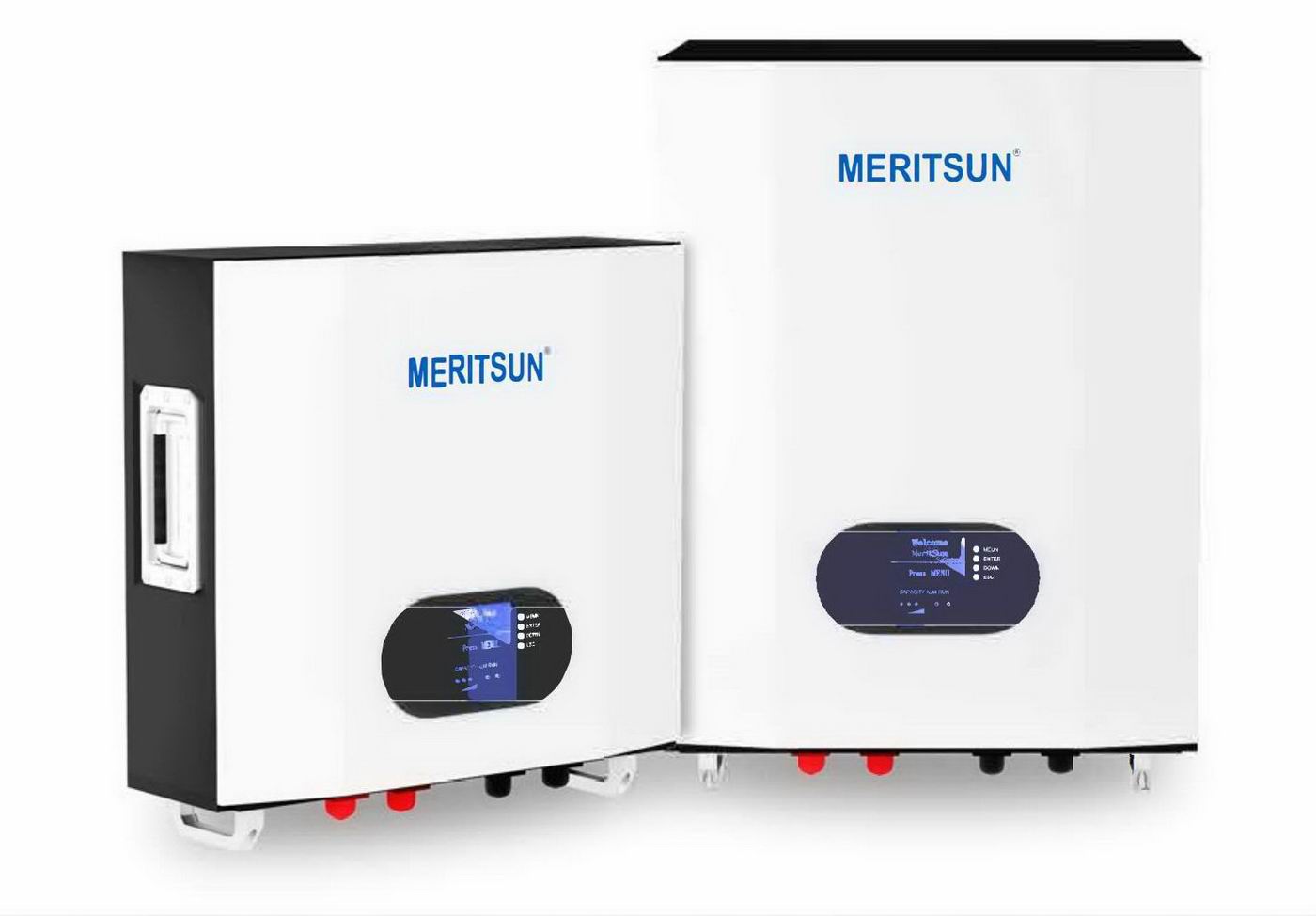

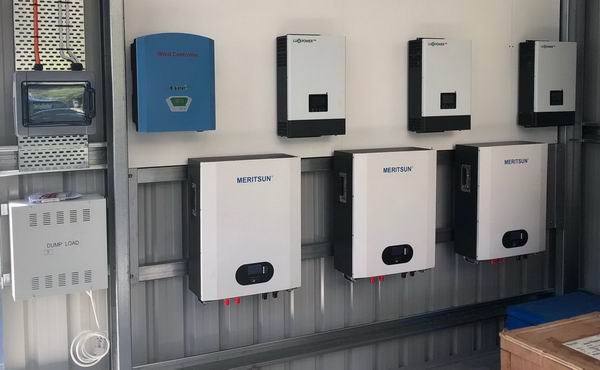

5.12kWh & 10.24kWh Powerwall Modules. 5.12kWh & 10.24kWh Modules. Three Phase Off-grid System using 3x 10.24kWh, 51.2V Powerwall Batteries & 3x 5kW LUX Off-grid Inverters. Blue inverter & Dump Load is for 3kW Vertical Axis Wind Turbine (VAWT) mounted atop DART-8 unit. Recommended Meritsun Energy Storage Battery Module Lithium Iron LifePO4 Battery mode list Cell Configuration SPEC Battery Capacity  DISCHARGE  CURRENT CHARGE  CURRENT  Dimensions &  Net Weight per Unit  Parallel Series QTY 48.0V DC 200Ah 9.12kWh 200A 120A 48x65x38cm (89kg) 14 2 30 51.2V DC 200Ah 10.24kWh 200A 120A 48x65x38cm (93kg) 16 2 32 Cycle Life =>6'000   10.24kWh Module Specifications;
