LUX 3kW~100kW OFF-Grid a ON-Grid Hybrid UPS Inverter Range.

Smart Remote Control, Support Solar Panel with 2x MPPT Strings.
Designed to Operate under Harsh Environment.
DC Start & Automatic Self- Diagnostic Function.
Compatible with Both Linear & Non-Linear Load.
Easy to Install & Easy to Operate & Easy to problem Solve.
Low DC Voltage Supports Home & Office Appliances.
Powerful Solar Charge Rate Up to 110Amp.
High Efficiency Design & “Power Saving Mode” to Conserve Energy.
Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration.
40V DC Battery Recover Point, Dedicated for Renewable Energy Systems.
15 seconds Delay Before Transfer when AC Resumes, Protection for Load when used with Generator.
Auto Generator Start (AGS) Function.

INVERTER Model SNA (OFF-Grid)	6.0kW	INVERTER Model LXP (ON-Grid)	6.0kW
Continuous Output Power	6.0kW	Continuous Output Power	6.0kW
Continuous Solar Power	8.0kW	Continuous Solar Power	8.0kW
Surge Rating (20 Seconds)	6.4kW	Surge Rating (20 Seconds)	6.4kW
Nominal Solar Input Voltage	360V DC	Nominal Solar Input Voltage	320V DC
Max. Battery Charge Voltage	60V DC	Max. Battery Charge Voltage	60V DC
Inverter Dimensions (LWH)	505 x 330 x 135mm	Inverter Dimensions (LWH)	565 x 455 x 181mm
Inverter Weight	14.5kg	Inverter Weight	20kg
Shipping Dimensions (LWH)	530 x 350 x 145mm	Shipping Dimensions (LWH)	590 x 475 x 191mm
Shipping Weight (Crated) kg	20kg	Shipping Weight (Crated) kg	25kg

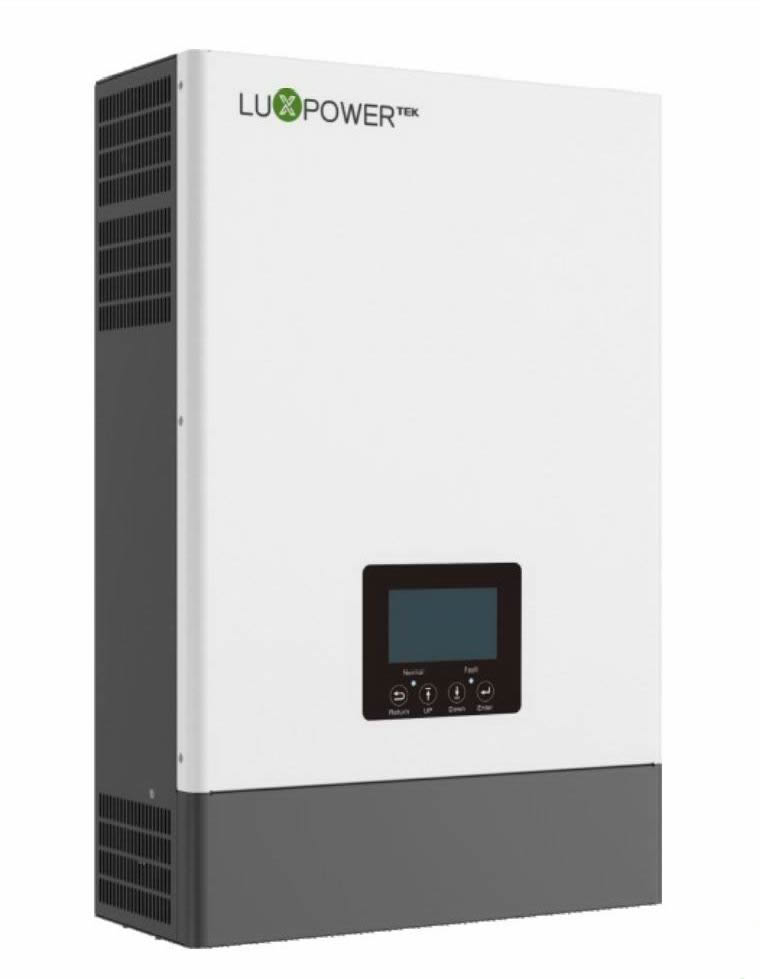

5kW SNA Inverter, Weight 14.5kg.

Crated Dimensions: 530×350×145mm.

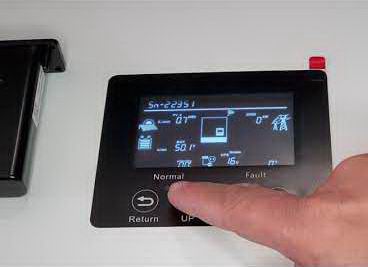

Inverter Control Panel next to WiFi Dongle.

(Click image to Zoom-in)

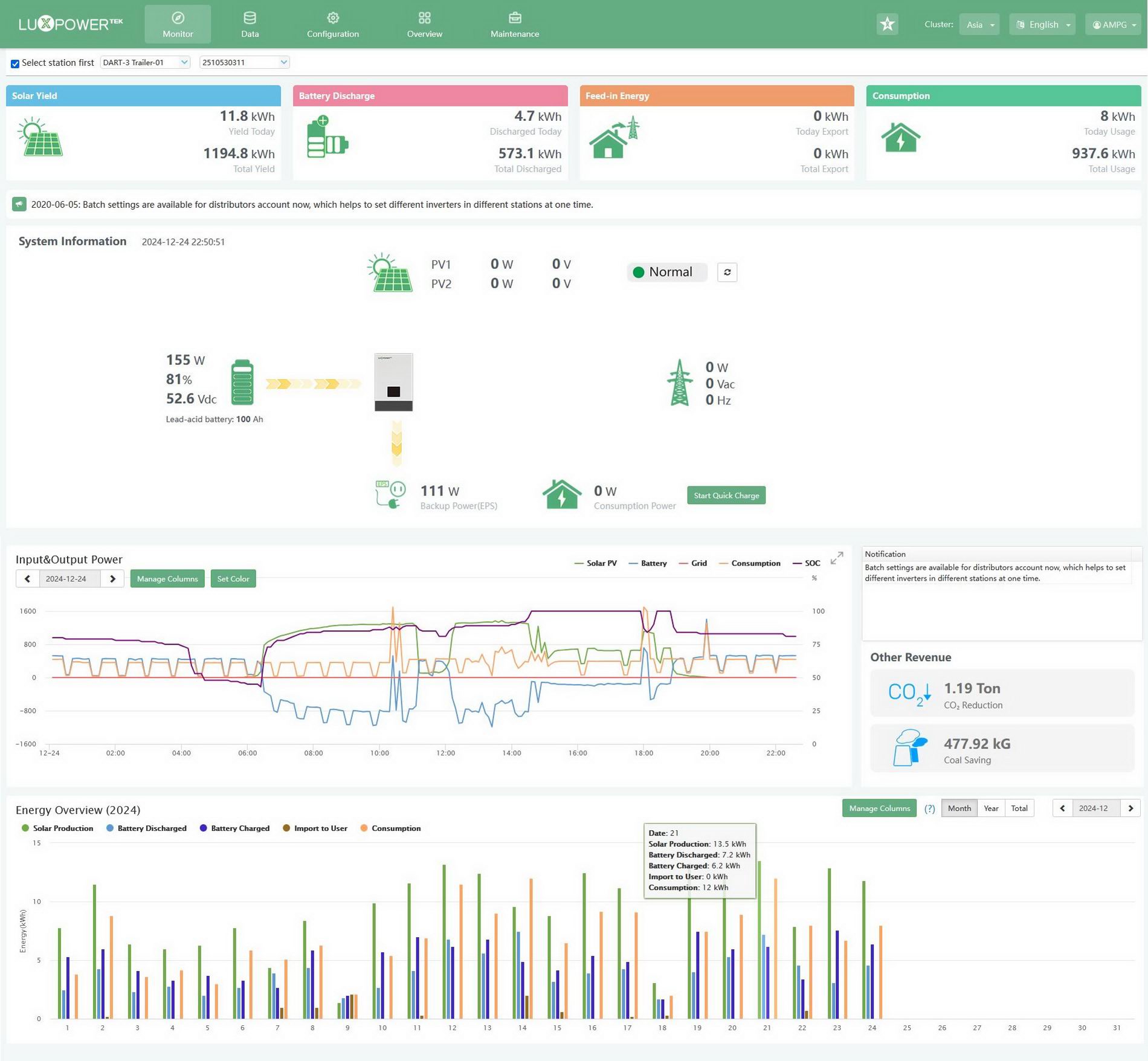

Above is the Generation from our Trailer mounted 1.50kW, DART-3 Power Station.

Data comes from LUX FREE Online easy to use Portal.

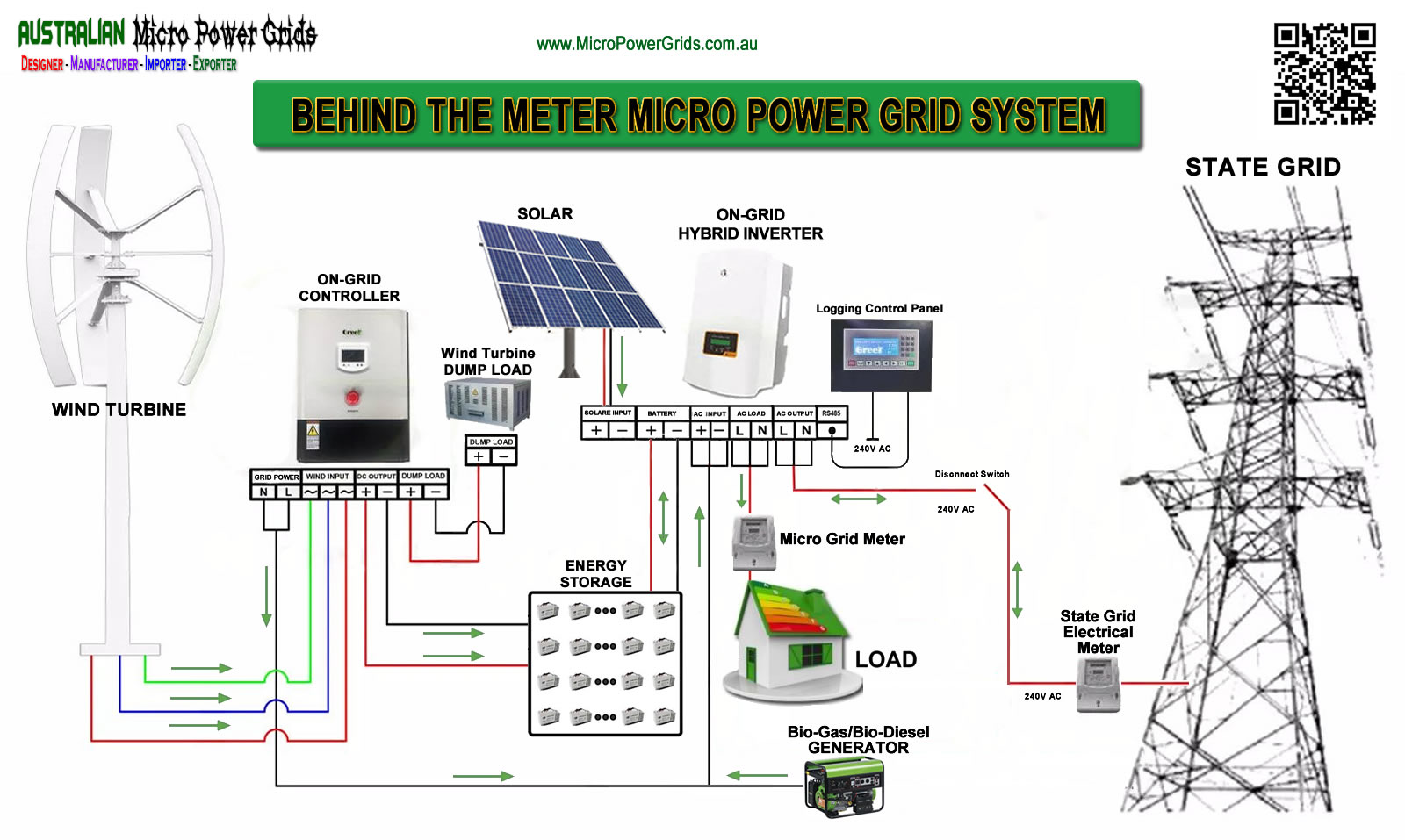

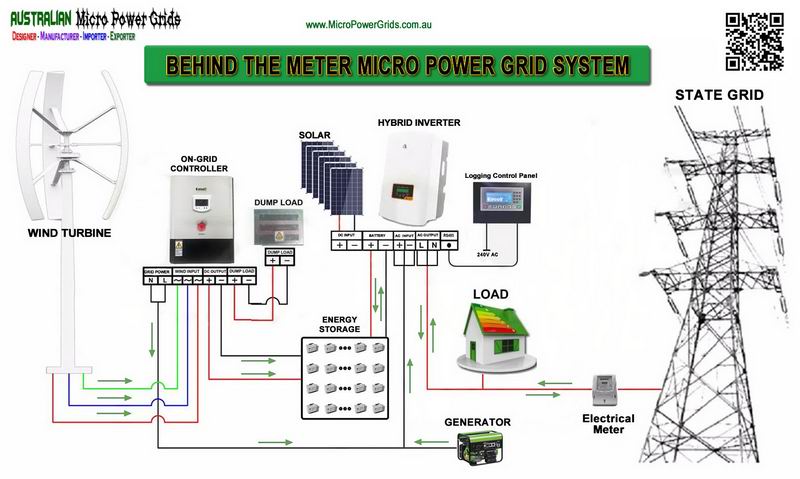

Hybrid Inverters are an integral part of an Energy Storage Systems.

For Single phase Power, a 6kw hybrid inverter is all that is required for ON-grid or OFF-grid system see this Video to see how to Set-up a Single LUX Inverter.

If 3 phase Power is required, we recommend installing Three separate 5kW Inverters, to see how to Configure a Three Phase System, this great video shows how to set-up Three Phase LUX System , We don't recommend purchasing a single 3 phase inverter, as if the inverter fails you will have No power, where with Three inventors, if one Fails you still have Two Phases working.

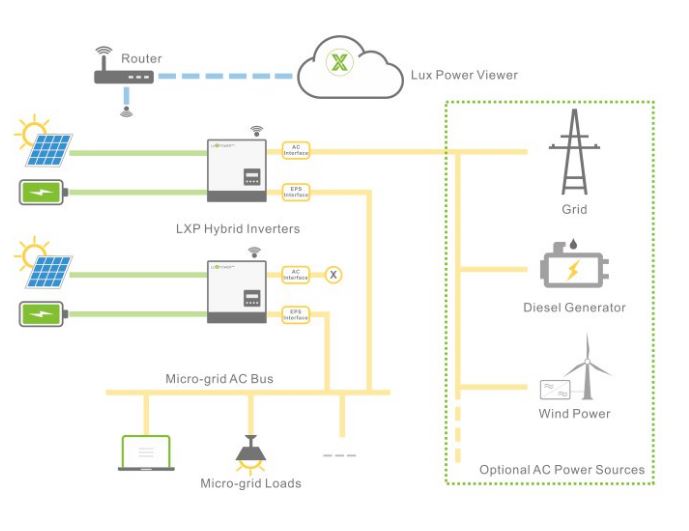

Single-phase or Three-phase, can be installed in parallel to make larger 10kw and 15kw solar power systems with storage and back-up. All monitoring is available on the phone APP, a lot better viewed through a Computer on the internet.

Come and inspect the demonstration inverter that is installed and running the factory in off-grid mode at our Queensland warehouse.

The Luxpower 5kw Hybrid inverter is a fully programmable smart solar energy storage system, designed to increase the usage of your solar energy production and to reduce the cost of buying power from the grid.

It features compact size, outdoor IP65 rating, and enhanced Emergency-power Supply operation, and it also has Remote Monitoring & Maintenance functions already built-in.

This product is available from the factory in a range of 3kW~5kW models, however, we specialise in supply and service of the 5kw model here in Australia. Other models can be ordered for special applications, supplied directly from the factory.

These smart-controlled solar and energy storage inverters have the following features and advantages:

Smarter mode switching for better backup/EPS/UPS applications. Switching from on-grid mode to off-grid/EPS mode takes place within 0.01 seconds when a grid blackout suddenly occurs. This makes sure that important loads will not be affected by sudden grid changes.
Flexible and programmable working modes. The inverter can be set to operate in different working modes, making it more suitable for various system applications. By simply setting it on the inverter itself, or by APP and monitoring platform, the user can set the system to a mode which is customized to suit your specific case.
Better yield and higher efficiency. The operating efficiency is among the highest of all similar types of inverter on the market. With a wide input voltage range and the lowest power loss under high ambient temperature, it can increase the yield and efficiency of the whole solar system significantly. *This inverter's output power de-rating is at 60℃, which is 20% lower than most others, which are mostly de-rated at 50℃ or less.
Reliability and stability. More than 350 tests were carried out on this inverter to make sure that the functional performance, safety, and lifespan is better than other models on the market.
Remote monitoring and upgrading function is built-in. This means the performance can be remotely monitored, and if any adjustments need to be made, they can often be done without even visiting the site.
Better cost control based on updated technology, which means better performance for you, at a lower cost.
Compatible with most lithium-ion battery brands on the market, and also supports lead-acid AGM and Gel battery connection. Recently we have also complied with all recommendations for the Pylon Tech battery.

Click image to ZOOM
