Fixed Flat or Fixed Tilted Solar Panel Racking

We call Fixed Tilted Solar Racking "Cave-Man Racking", as it's the most inefficient Solar Racking for Daily Energy Generation!

The main reason we're Not interested in supplying Fixed Solar Racking (FT), you can Harvest the same daily energy with DART Racking, and a DART unit uses less than Half the Solar Panels & Half the footprint, than FT Solar Racking, and this is for the next 25+ years!

Radiation Tracking is better suited to DART units, as DART Racking Generate up to 60% more Energy over 12 months than any Fixed Tilted (FT) Racking, as shown in this video, and the Further South of the Equator a DART unit is installed, like Melbourne area, it will Generate Power from 5AM to 8PM.

All Ground mounted Racking is easier & Quicker to install if using Ground Screws, as No Concrete is required, allowing installation straight away, Ground Screws are also better for the environment as can be easily removed if you decide to relocate the array!

Unless you live at the very top of Australia, Fixed Flat & Fixed Tilted Racking is the lease effective at Generating Power, especially in Winter as the Sun is a lot lower on the horizon, where DART Racking is the Opposite, the Further South of the Equator you live, more Power will be Generated !

Low mounted Solar Racking are easy to Clean but more difficult to Mow around.

We recommend you have a minimum 100cm Ground Clearance, or 200cm if Grassing Livestock around your Solar Racking.

Roof Mounted Solar Panels Roof Mounted Solar Panels Roof Mounted Solar Panels

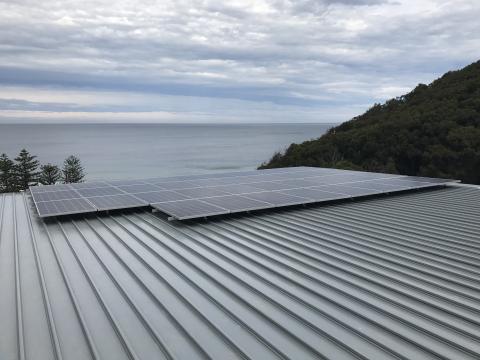

Flat Panel installation.

Typical Tilted Rooftop installation.

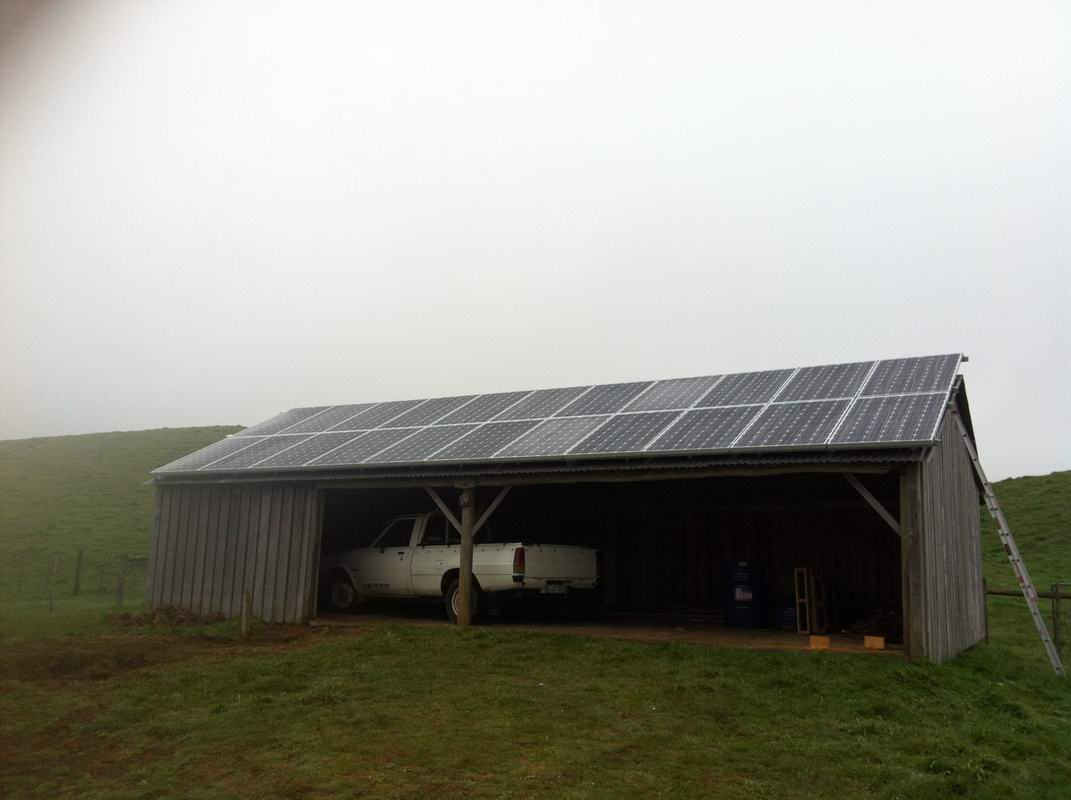

Using a shed roof.

Roof Mounted Solar Panels Roof Mounted Solar Panels Roof Mounted Solar Panels

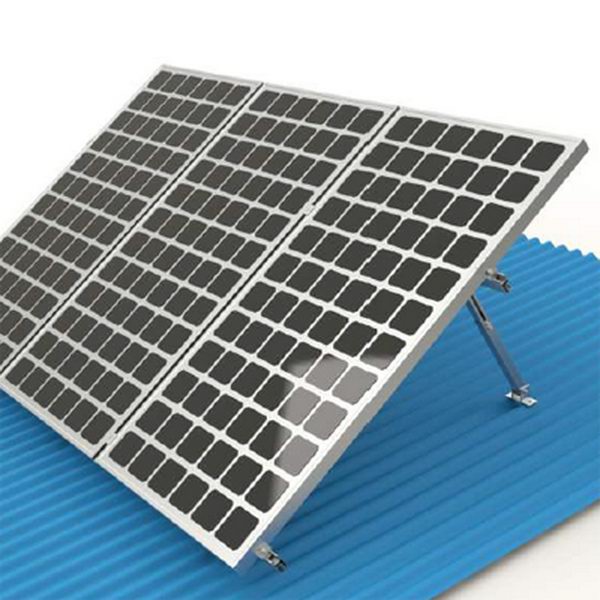

Angled Fixed Panel installation.

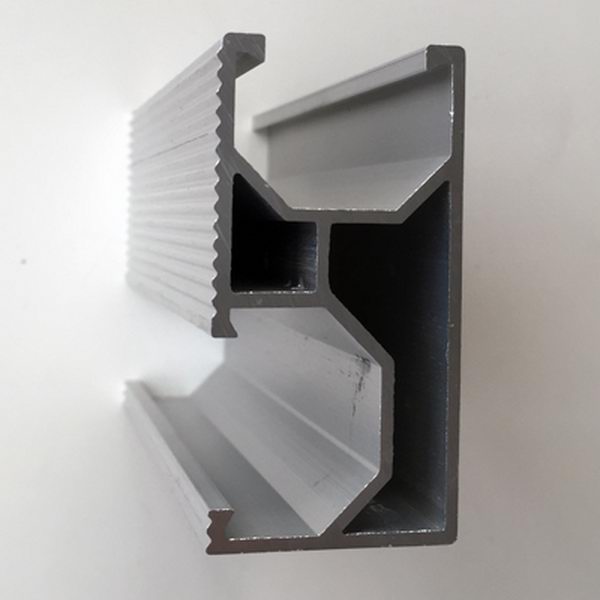

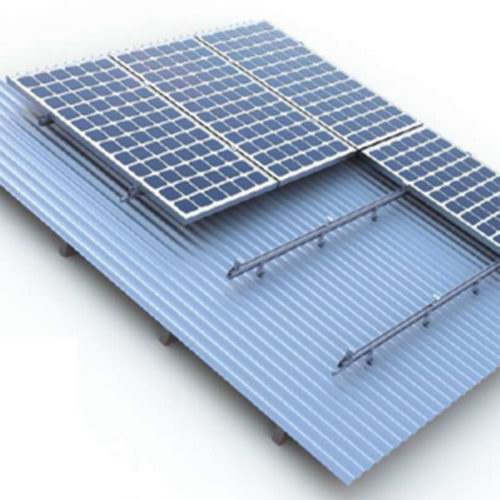

Rooftop Panel Rails.

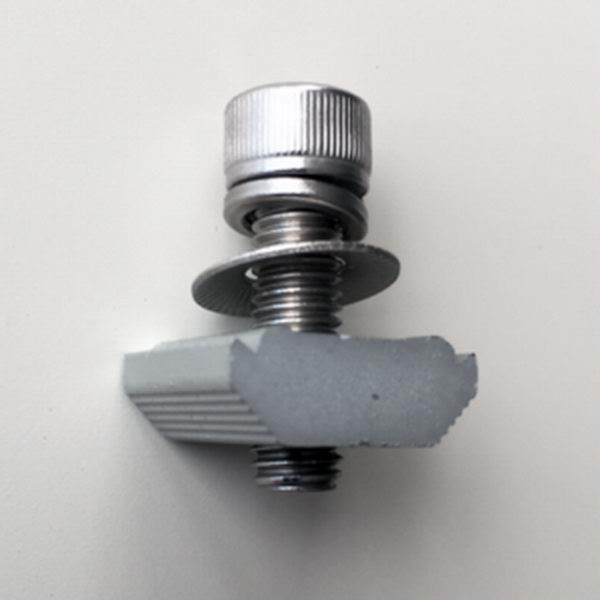

Solar Panel Rail Fixing Lug.

Roof-Top Solar Racking & Brackets are cheap, there are only two Rails per row of Solar Panels, Railing should not cost more than $15 per Panel.

Roof Mounted Solar Panels Roof Mounted Solar Panels Roof Mounted Solar Panels

Adjustable Fixed Tilted Racking.

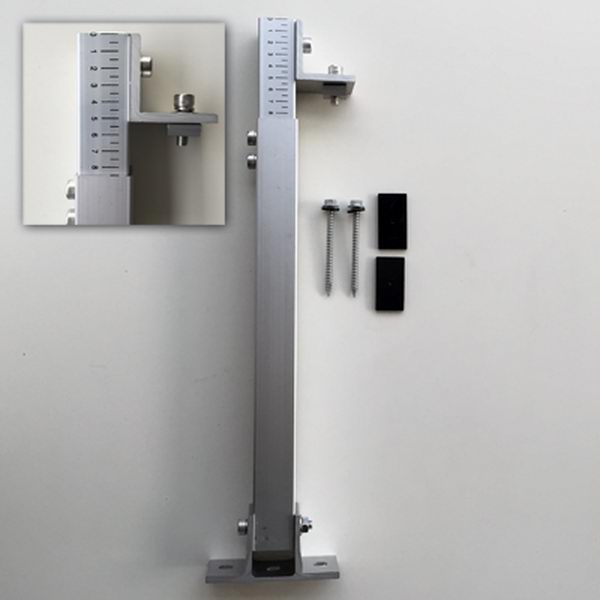

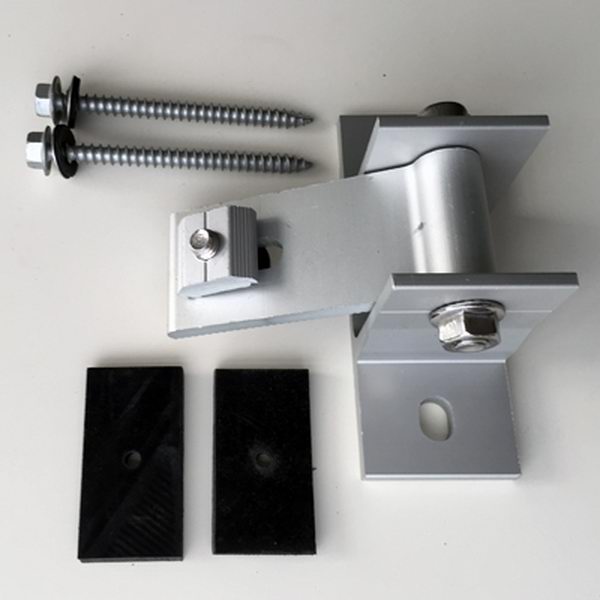

Adjustable Fixed Tilted Bracket.

Fixed Tilted lower Bracket.

Roof Mounted Solar Panels Roof Mounted Solar Panels Roof Mounted Solar Panels

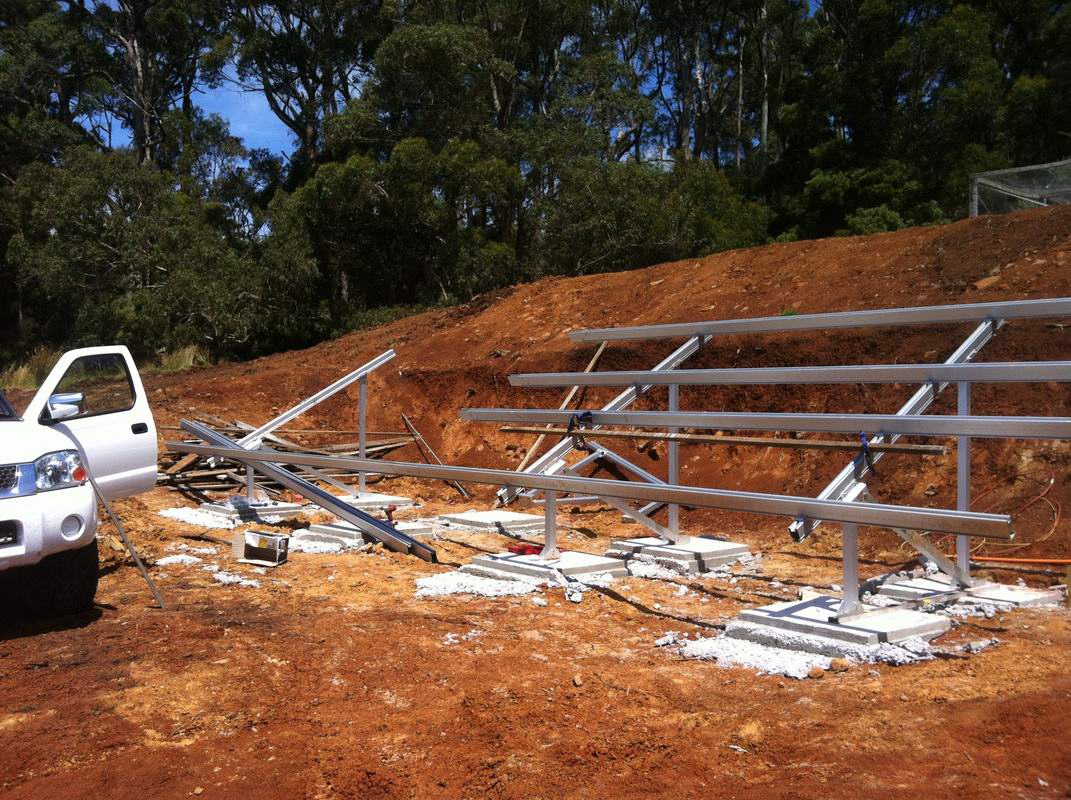

Setting Cement Foundations.

After commissioning.

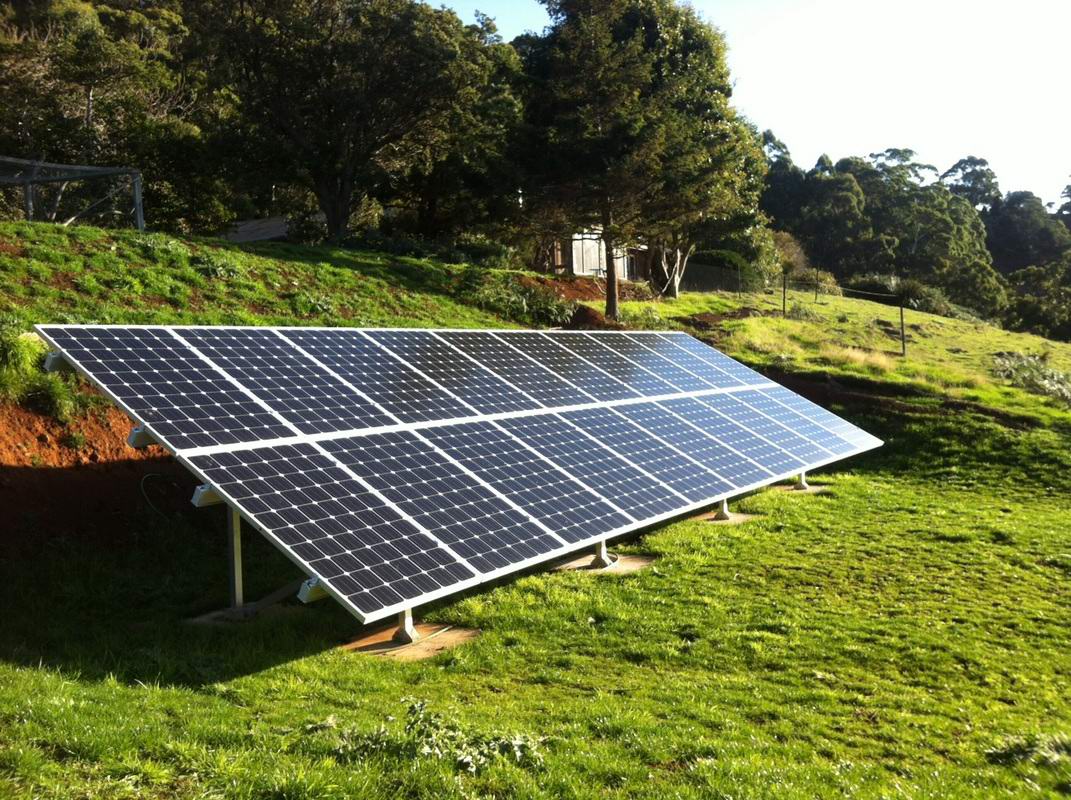

Once the Grass has grown.

Roof Mounted Solar Panels Dual Axis Slew Drive. Dual Axis Slew Drive.

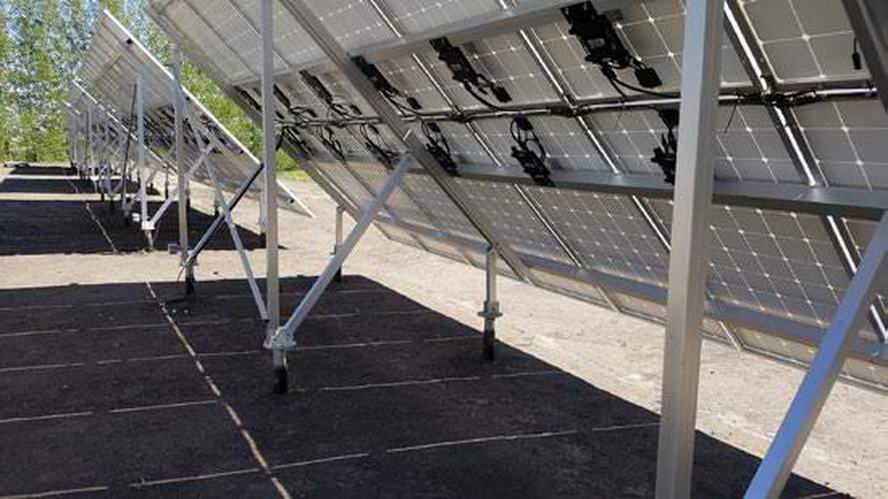

Rear Ground Screw Tilted Racking.

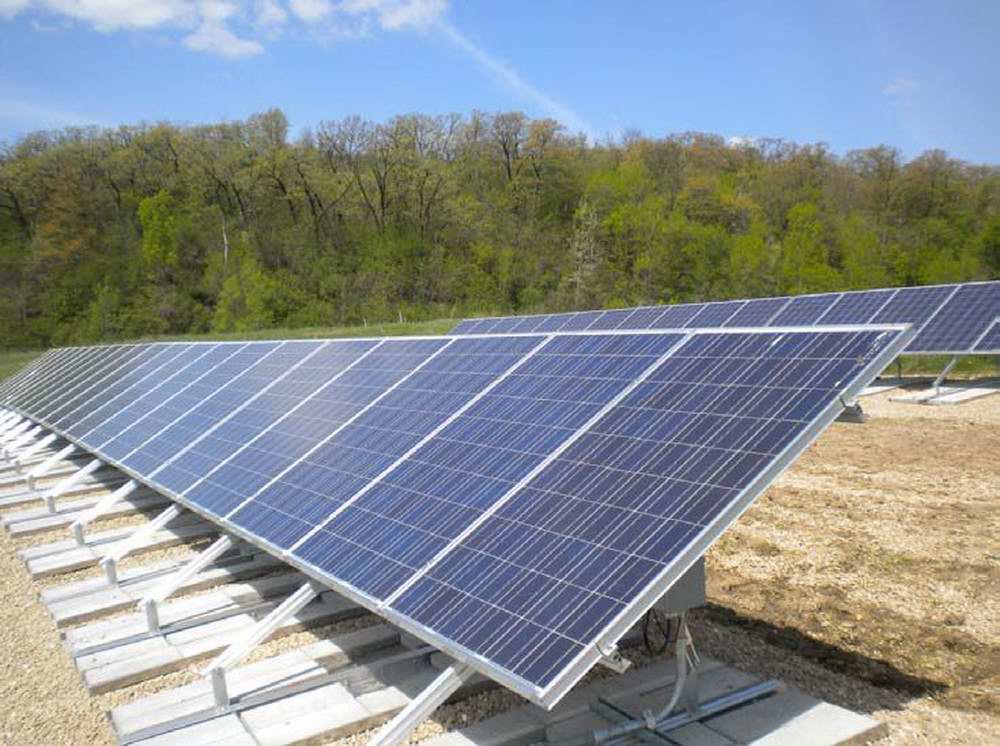

25 Panel, Ballasted

Fixed Tilted Solar Array.

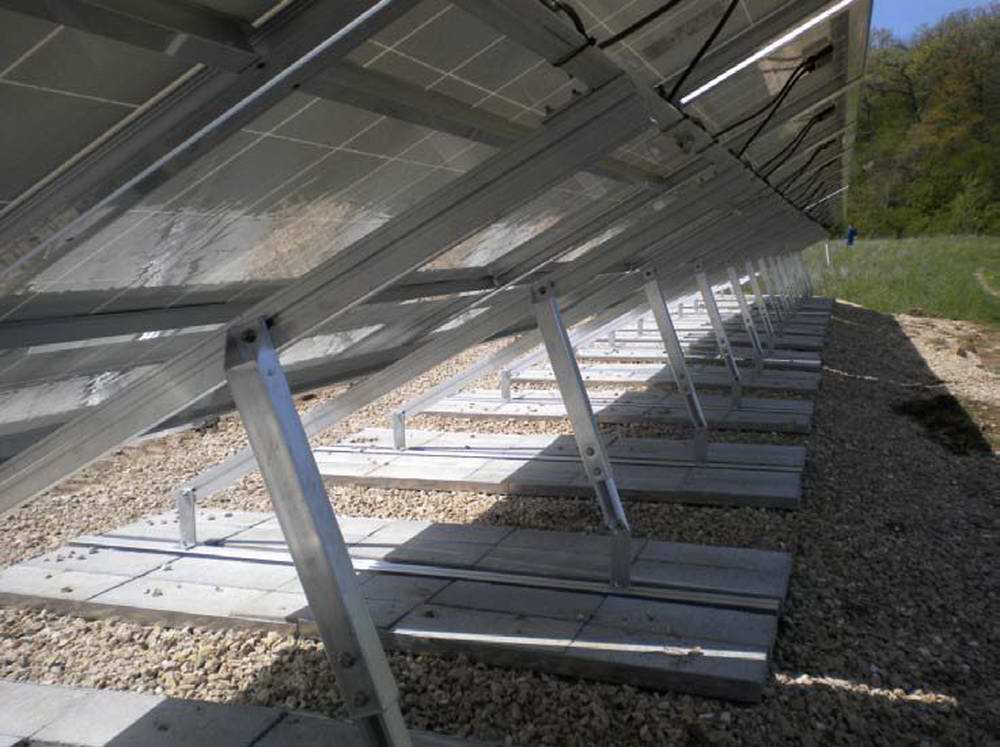

Ballasted Foundation

Fixed Tilted Solar Array.

Dual Axis Slew Drive. Dual Axis Slew Drive. Dual Axis Slew Drive.

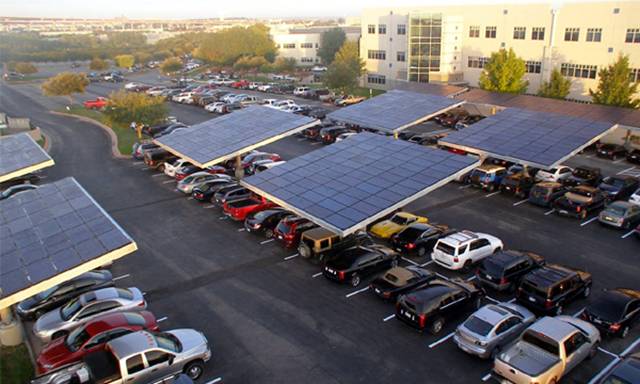

Car Park

Fixed Tilted Array.

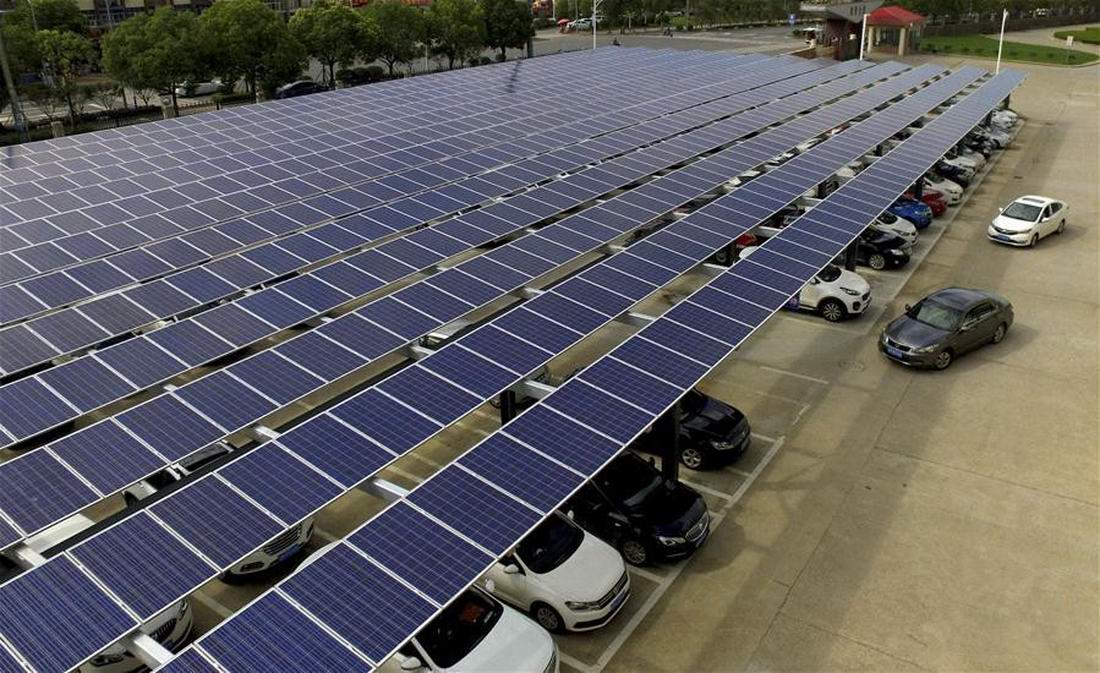

60kW Car Park

Fixed Tilted Solar Array.

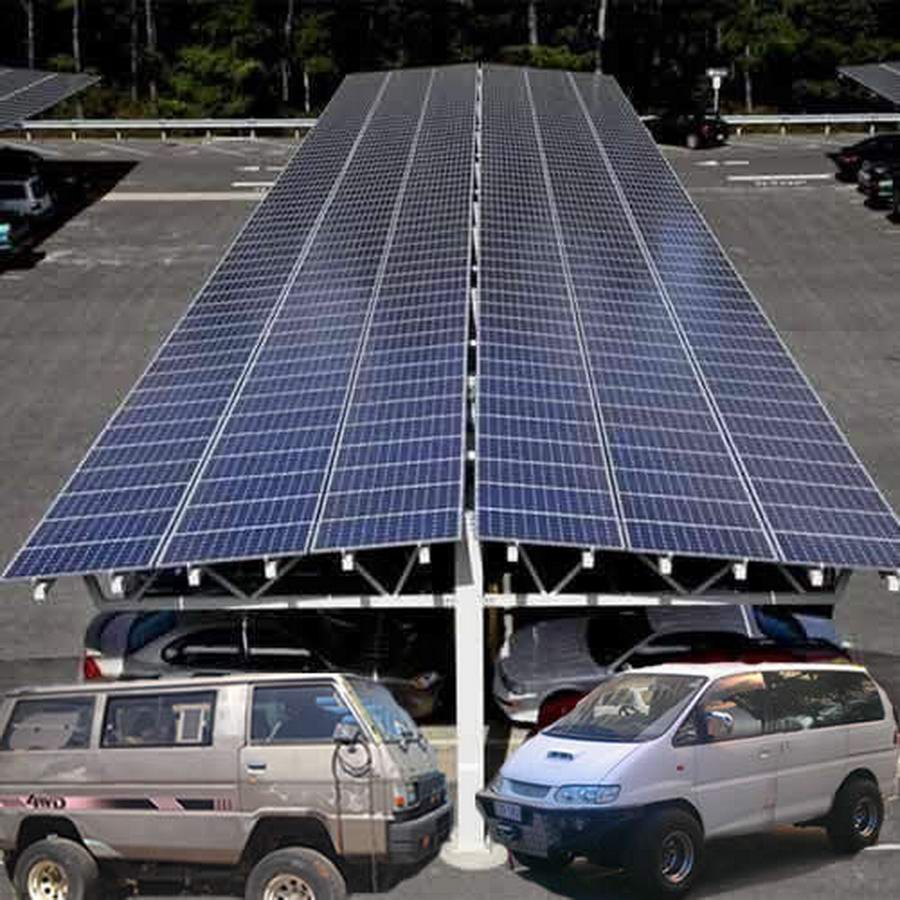

Car park Solar Array.
