8kW GF2-10000SE, 70dB Silenced Diesel Generator.
INFORMATION: (*design changes)
NB: This generator is suitable for Powering most premisses, & during operation can easily Charge any battery banks!
Where most generator energy is normally wasted with NO Loading, it's a lot smarter to capture this energy and charge your battery bank via an AGS inverter, instead of wasting the %, that is NOT been consumed!
A Water Cooled engine jacket absorbs more engine noise, where the 800cc, V2 Cylinder Diesel engine easily drives a 8kW generator, this unit is housed in a quality 3mm high tensile powder coated steel enclosure, secured with an assembly of heavy-duty bolts.
Any Diesel generator can run on processed bio-diesel* and accept blended natural plant based fuels*. Eco-friendly bio-diesel technology produces exactly the same power outputs as conventional Diesel, but with up to 85% less harmful emissions.
This generator is perfect for home, farm and Industrial use as a portable power supply or where mains power is temporarily unavailable. Its heavy-duty, high-performance nature delivers an abundance of energy for all kinds of applications.
Continuous operation up to 11hrs. Please refer to the Service Schedule included in the Manual for more information.
Imagery:
.jpg)
|
.jpg)
|
.jpg)
|

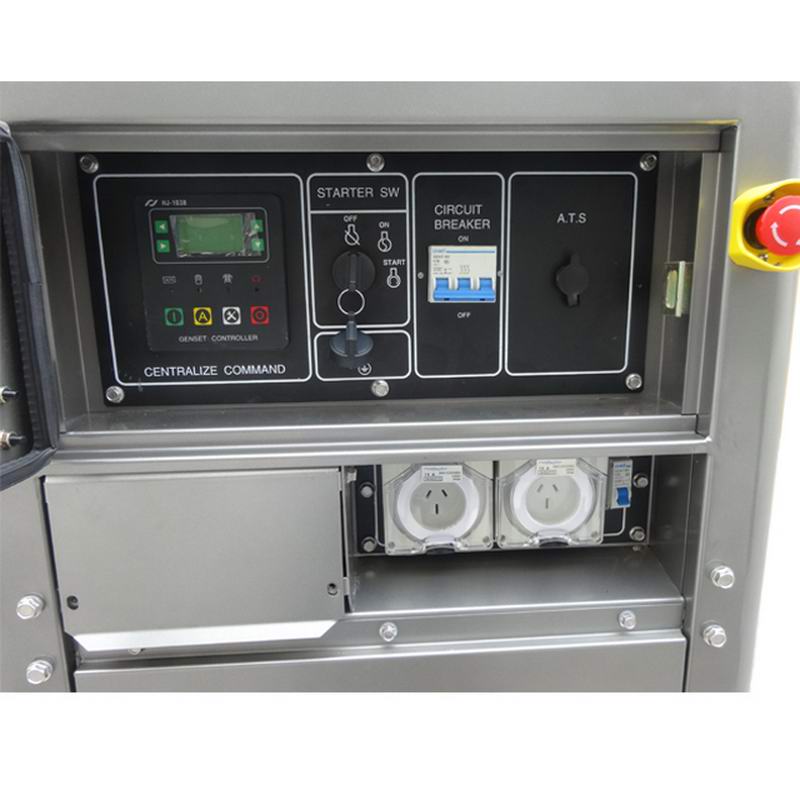

*Australian Control Panel with DC Circuit Breaker Switch. |

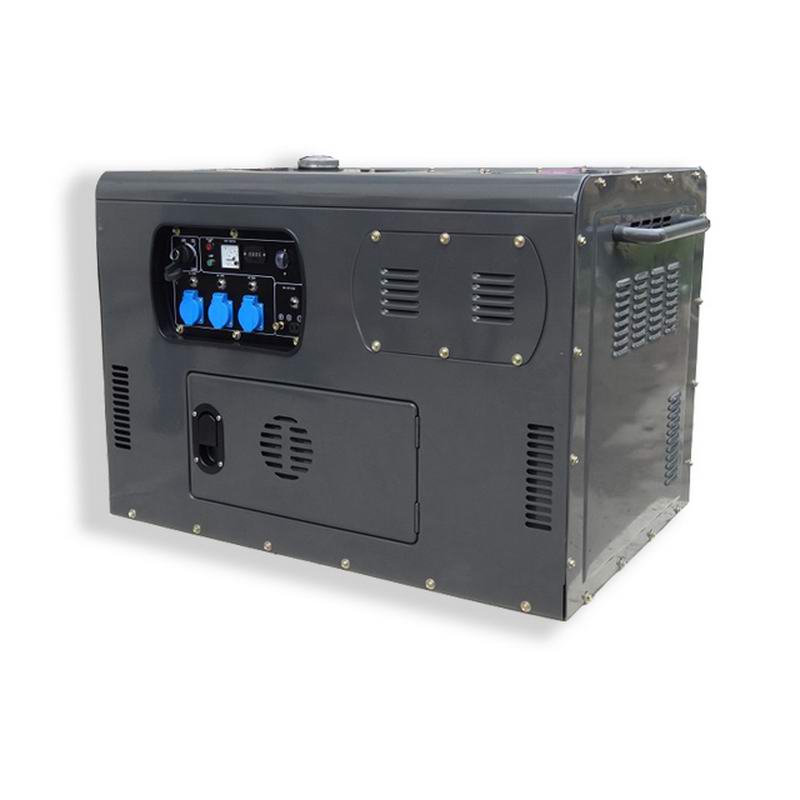

8KW (10KVA Peak) *70dB @7mt distance. |

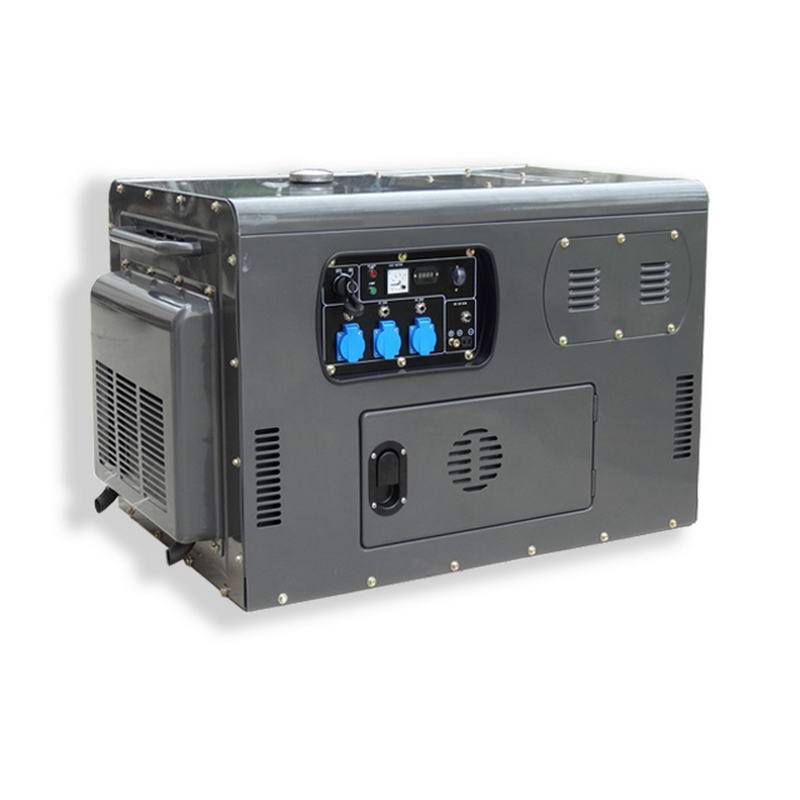

Air-intake end view. |
.jpg)
|
.jpg)
|
.jpg)
|

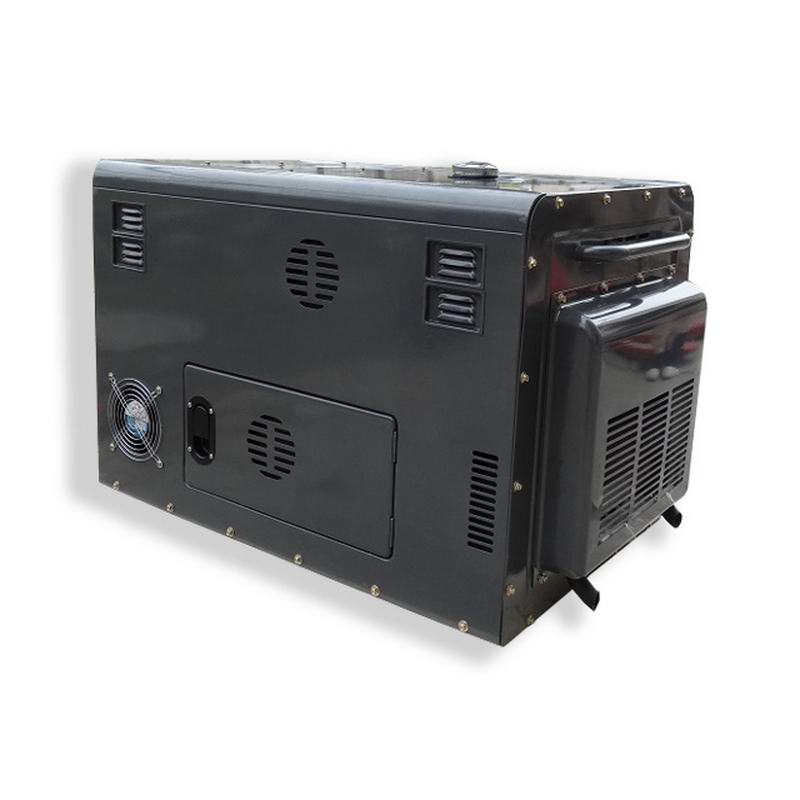

Rear & Exhaust end view. |

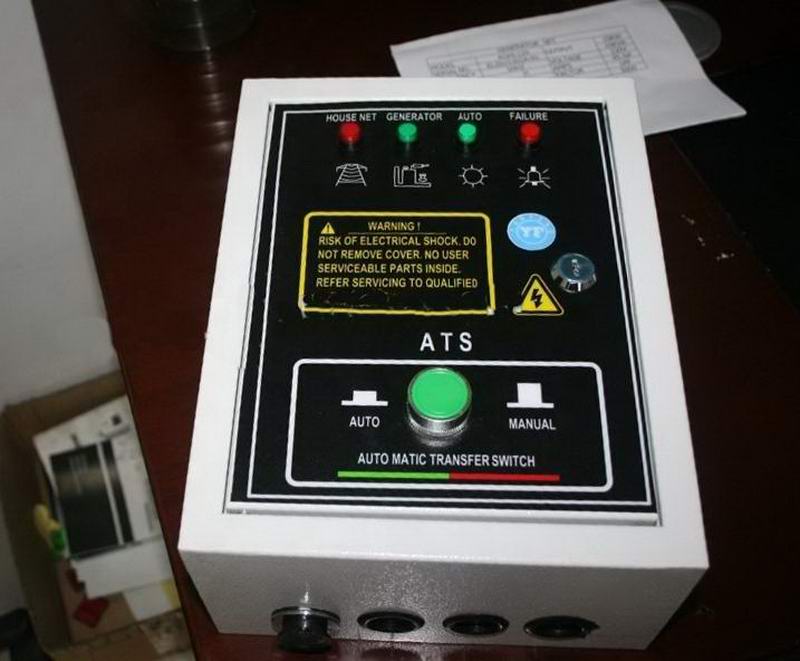

ATS Switch Panel.
(Auto Transfer Switch) |

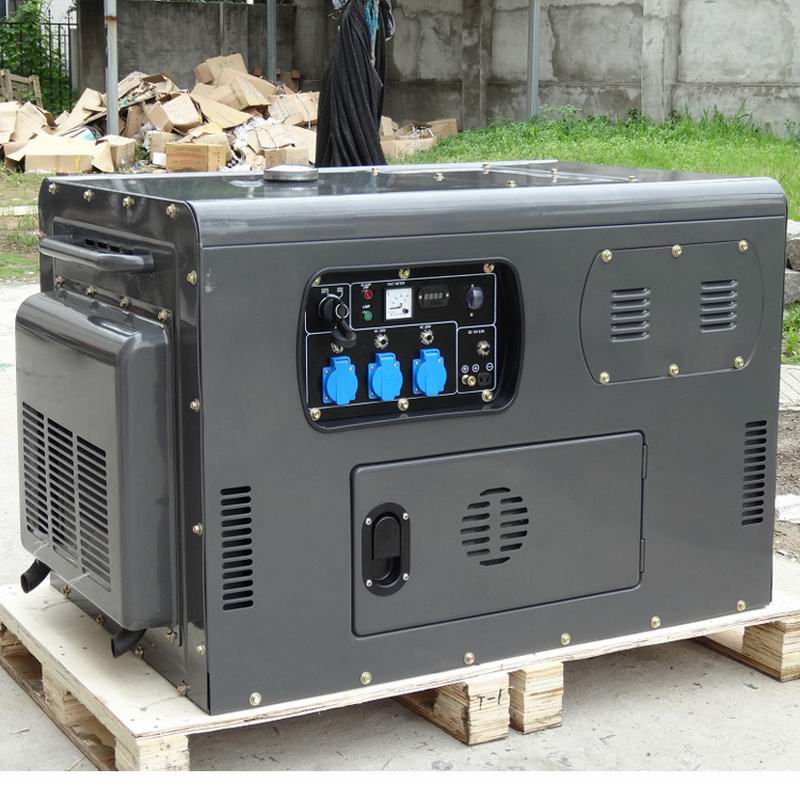

Crate Pallet base. |
If this Diesel Generator suit your power needs Order it now!
| Model |
GF2-10000SE |
| GENERATOR |
Frequency (HZ) |
50Hz |
| Max. output (KVA) |
10 |
| Rated output (KVA) |
9 |
| Rated AC voltage (V) |
240 |
| Power factors |
240, 220/380, 230/400, 240/415 |
| Phase |
12V/8.3A |
| Alternator type |
Single phase or Three phase |
| Starting system |
2pcs |
| Noise level (Dba @7m) |
70 |
| Fuel tank capacity (L) |
37 |
| Continuous running time (hr) |
11 |
| ENGINE |
Engine model |
EV80 |
| Engine type |
V-twin cylinder, 4-stroke water-cooled Diesel engine |
| Bore×Stroke (mm) |
80×79 = Engine Capacity: 804cc |
| Fuel consumption rate (g/kw.h) |
≤260 |
| Fuel (L) |
14 * Litres Diesel / Bio-Diesel |
| Lubrication oil volume (L) |
2.3 Litres |
| STANDARD FEATURES |
Voltmeter |
|
| AC output socket |
260V |
| AC circuit breaker |
Vortex type |
| Oil warning light |
YES |
| Oil alert |
2 |
| OPTIONAL FEATURES |
DC circuit breakers |
4 |
| Control Panel (user data) |
YES |
| Big flywheel wheel |
YES |
| Three phase voltage |
YES |
| ATS |
OPTIONAL |
| Remote control |
OPTIONAL |
| Set Roller Wheels |
OPTIONAL |
| DIMENSIONS |
Packing dimension (LxWxH) |
128cm x 71cm x 91cm |
| Gross weight (kgs) |
260kg |
IN THE BOX
- 1x Single or Three Phase Diesel Generator
- 2x Electric Ignition Keys
- 1x Fuel Funnel
- 1x Set Alligator Jumper Leads
- 1x Tool Kit
* Do your own research. |
