YIY 3~12kW Hybrid UPS Inverter Range
These UPS Inverters are Off-Grid +Solar +Charger +Transfer SW +AGS, All in One Unit!
Available in 1kW, 1.5kW, 2kW, 3kW, 4kW, 5kW, 6kW, 8kW, 10kW and 12kW, all come with features shown below, inc. Battery Management System (BMS), Auto Generator Start (AGS), solar charger controller, inbuilt MPPT 48V/60A, max PV input 110Vdc Function.
Inverters are 12/24/48v with LCD , 240v, AC 50hz.
We recommend a 5kW inverter, then you can upgrade your system anytime.
These inverters are designed to be paired with YIY LiFe-Po4 Batteries or any other Battery Technology.
Features of YIY Inverters:
- Smart Remote Control,
Support Solar Panel with MPPT Function.
- Designed to Operate under Harsh Environment.
- DC Start & Automatic Self- Diagnostic Function.
- Compatible with Both Linear & Non-Linear Load.
- Easy to Install & Easy to Operate & Easy to problem Solve.
- Low DC Voltage Supports Home & Office Appliances.
- Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%.
- High Efficiency Design & “Power Saving Mode” to Conserve Energy.
- Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration.
- 13 Vdc Battery Recover Point, Dedicated for Renewable Energy Systems.
- 8 Pre Set Battery Type Selector, Plus De-sulphation for Totally Flat Batteries.
- 4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger.
- 8 ms Typical Transfer Time Between Utility & Battery, Guarantees Power Continuity.
- 15 seconds Delay Before Transfer when AC Resumes, Protection for Load when used with Generator.
- Download: 1~12kW Single Phase INVERTER Specifications .pdf document.
- Download: 1~12kW Single Phase INVERTER User Manual .pdf document.
- Download: 3~45kW Three Phase INVERTER User Manual .pdf document.
|
INVERTER Model |
1.0kW |
1.5kW |
2.0kW |
3.0kW |
4.0kW |
5.0kW |
6.0kW |
8.0kW |
10.0kW |
12.0kW |
Continuous Output Power |
1.0kW |
1.5kW |
2.0kW |
3.0kW |
4.0kW |
5.0kW |
6.0kW |
8.0kW |
10.0kW |
12.0kW |
| Surge Rating (20 Seconds) |
3.0kW |
4.5kW |
6.0kW |
9.0kW |
12.0kW |
15.0kW |
18.0kW |
24.0kW |
30.0kW |
36.0kW |
Nominal Input
Voltage |
12Vdc / 24Vdc / 48Vdc |
24Vdc / 48Vdc |
48Vdc |
Inverter Dimensions (L*W*H) |
388 x 415 x 200mm |
488 x 415 x 200mm |
588 x 415 x 200mm |
Inverter Weight (Solar Chg) kg |
21+2.5 |
22+2.5 |
23+2.5 |
27+2.5 |
38+2.5 |
48+2.5 |
49+2.5 |
60+2.5 |
66+2.5 |
70+2.5 |
Shipping Dimensions (L*W*H) |
55*52*31cm |
65*52*31cm |
75*52*31cm |
Shipping Weight (Solar Chg) kg |
23+2.5 |
24+2.5 |
25+2.5 |
29+2.5 |
40+2.5 |
50+2.5 |
51+2.5 |
62+2.5 |
68+2.5 |
72+2.5 |
|
.jpg)

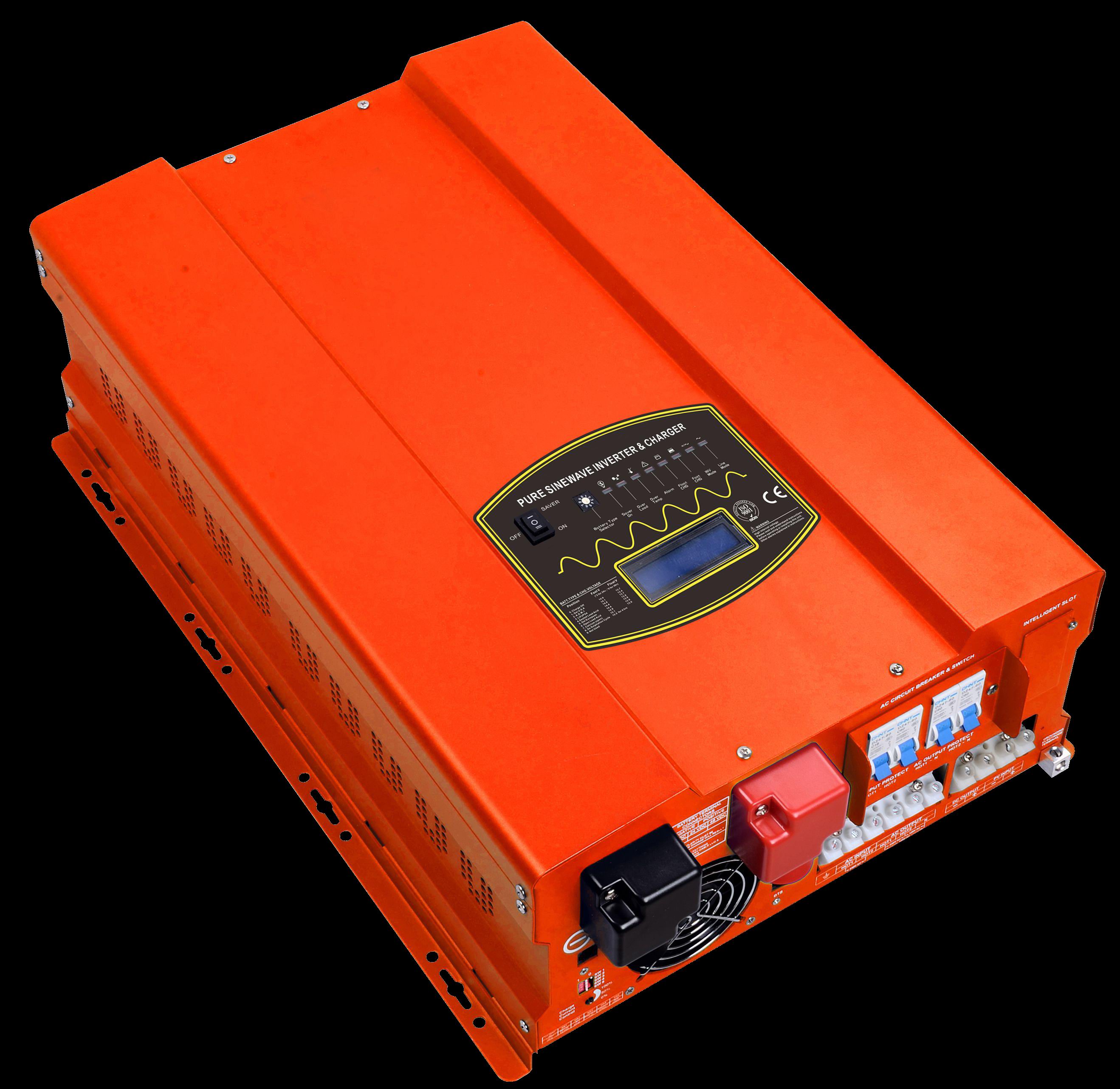

5kW Inverter, Weight 48kg.
Packed dimensions 65×52×31cm. |
.jpg)

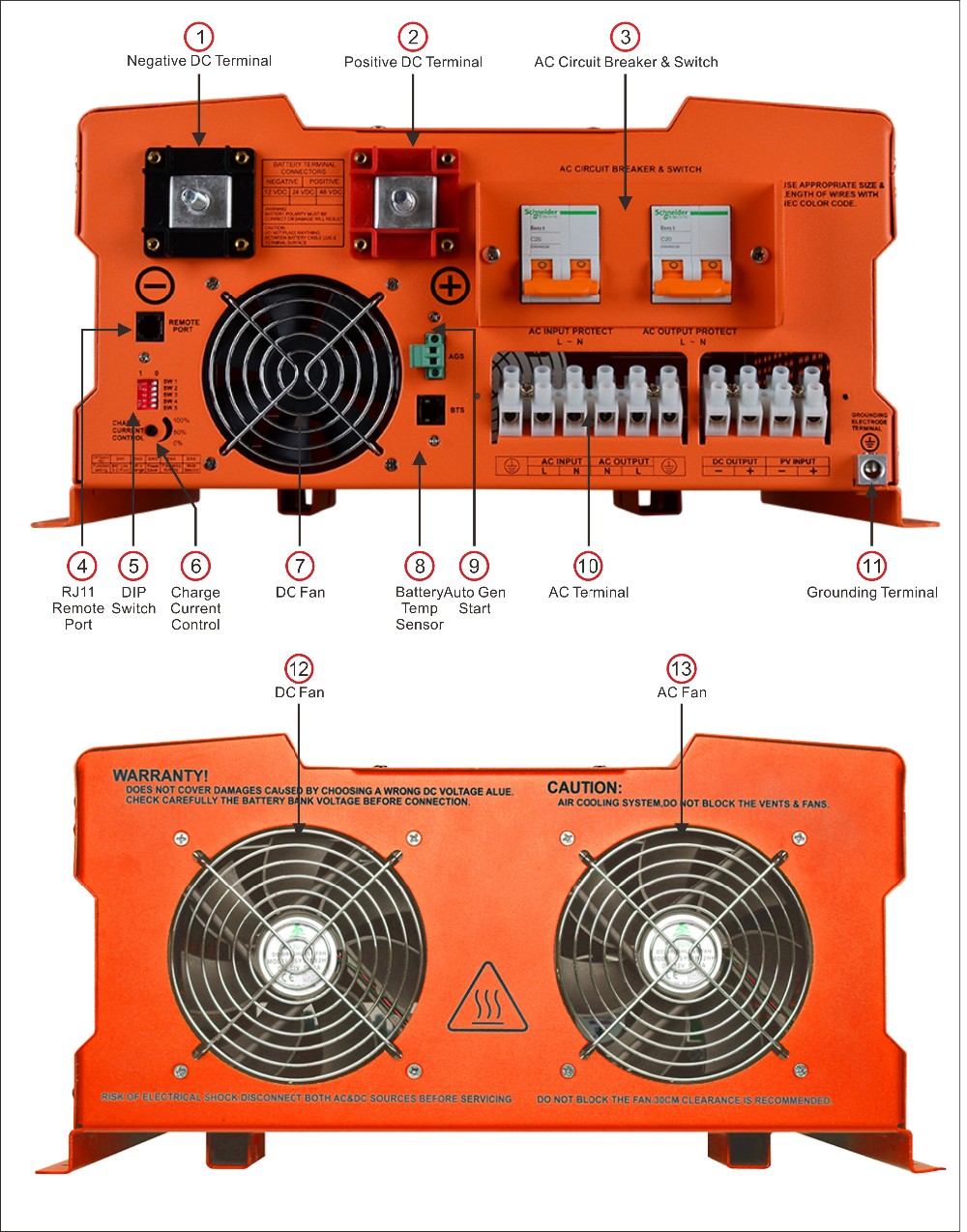

Components of 5kWh Inverter. |
.jpg)

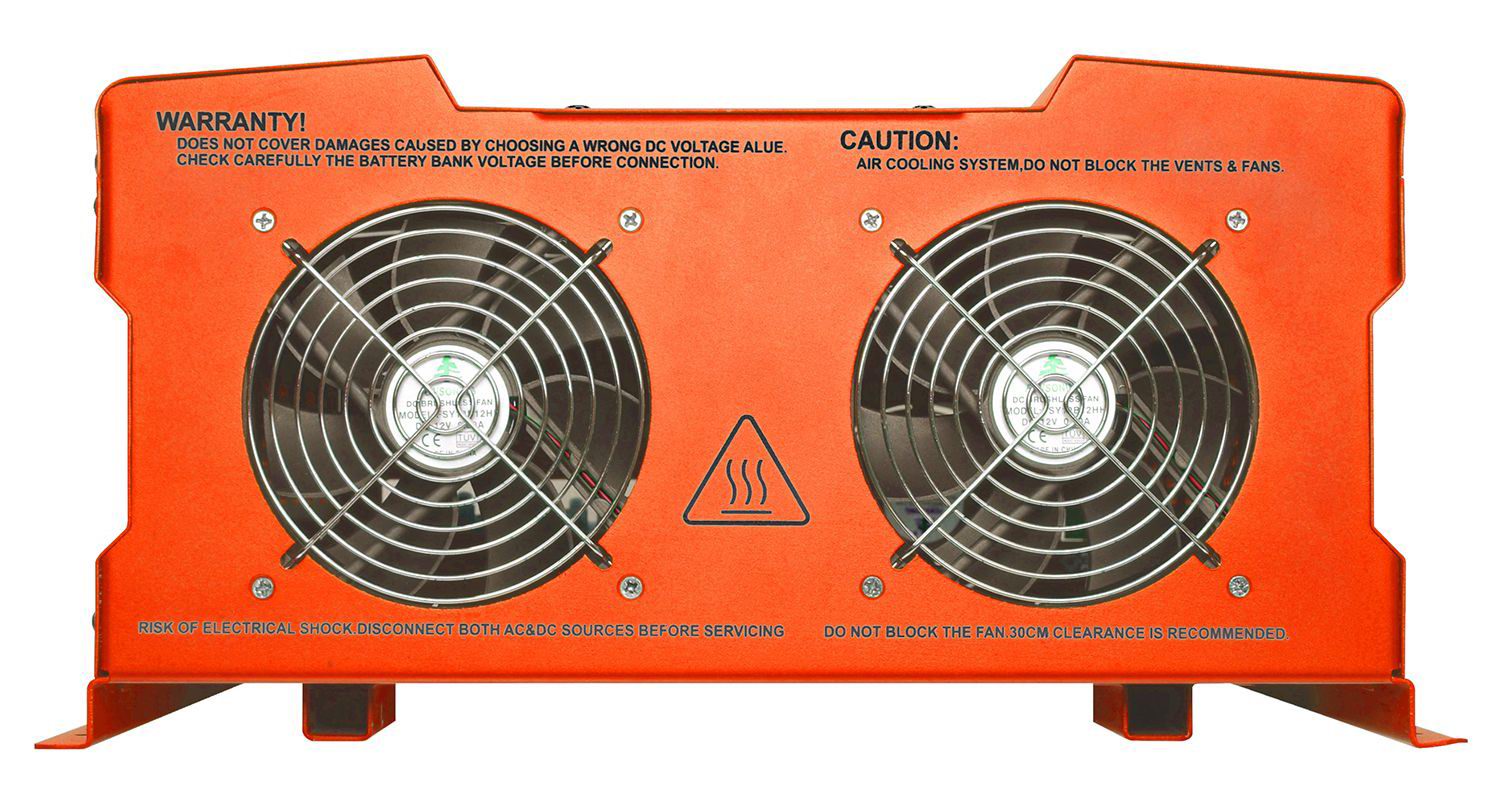

Bottom/Rear of 5kW Inverter. |
.jpg)
Top/Front of 5kW Inverter. |

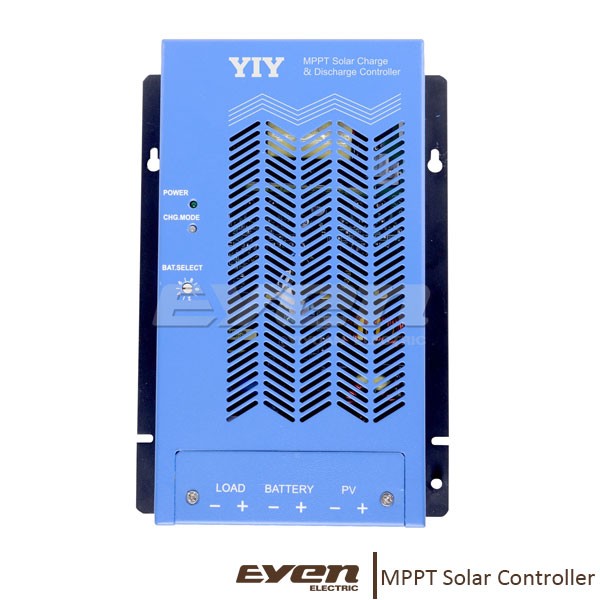

old stand alone MPPT Charger. |
.jpg)

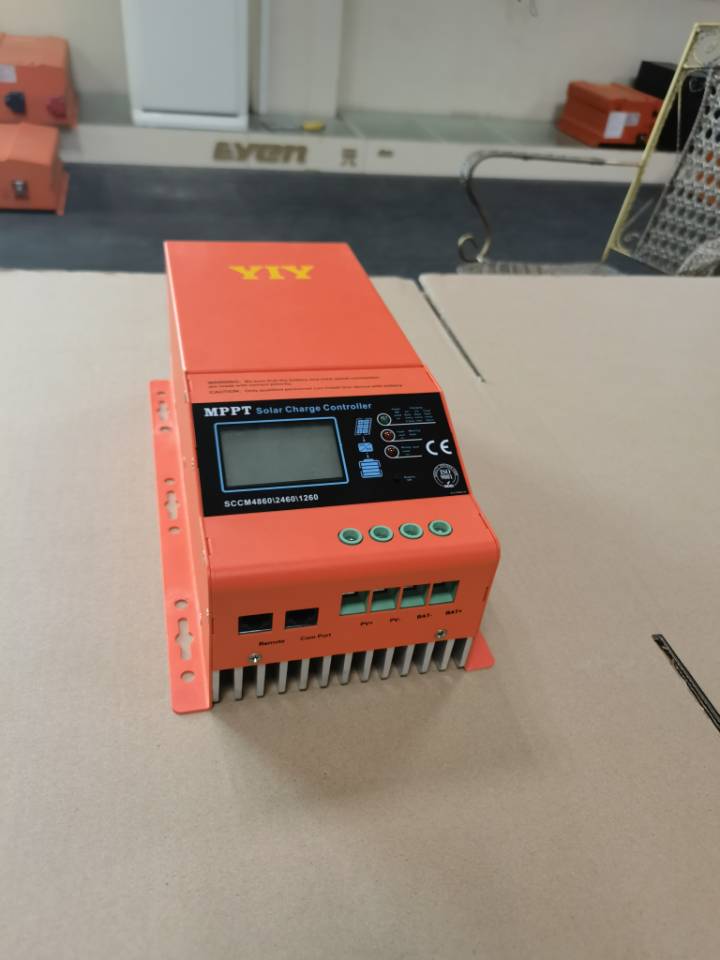

3kW stand alone MPPT Charge Controller.
Download the .pdf Manual & Specifications. |
|
.jpg)
/YiY/YiY_images/10.24_ESS-(1b).jpg)
|
|
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
/YiY/YiY_images/10.24_ESS-(1a).jpg)
