YIY 3~12kW Hybrid UPS Inverter Range.

Available in 3kW 4.5kW 6kW 9kW 12kW 15kW 18kW 24kW 3kW 36kW 45kW, all come with features shown below, inc. Battery Management System (BMS), Auto Generator Start (AGS), solar charger controller, inbuilt MPPT 48V/60A, max PV input 110Vdc Function.

Inverters are 12/24/48v with LCD , 240v, AC 50hz.

We recommend a minimum 4.5kW inverter, then you can upgrade your system anytime.

These inverters are designed to be paired with YIY LiFe-Po4 Batteries or any other Battery Technology.

Features of YIY Inverters:

High output capacity up to 45KW.
Unbalance Load Acceptable.
Idle Consumption-Search Mode, less than 100W when Power Saver On.
DC input voltage 12VDC/24VDC/48VDC.
Powerful charge rate max charge current up to 450A (150A*3).
Intelligent communication port RS 232, RS 485, CAN port.
Advanced MPPT solar charger controller Available.
LED + LCD Display.
Remote control optional (LED or LCD remote).
Pure sine wave output.
Ultra Low THD, less than 3% under full linear load (battery low).
13Vdc battery Recover Point, Dedicated for Renewable Energy Systems.
Download: 3~45kW Three Phase INVERTER Specifications & Manual .pdf document.

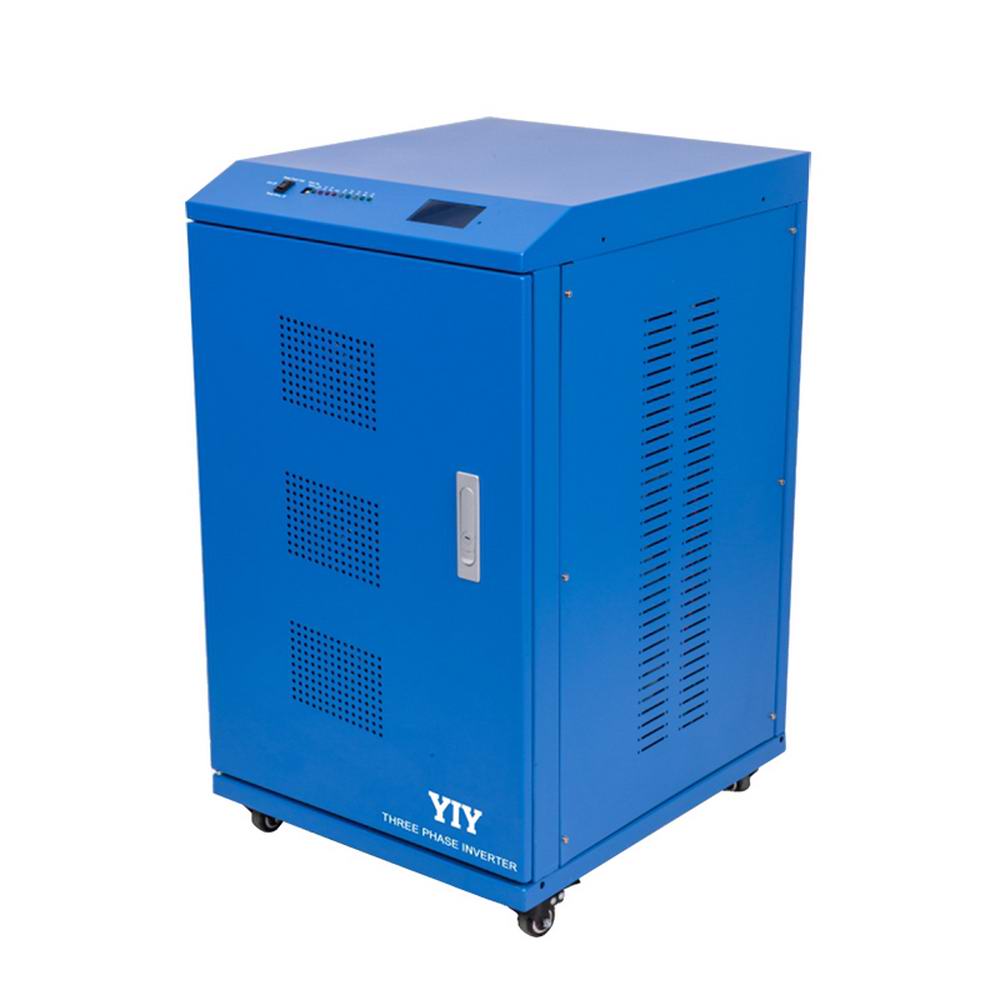

3 Phase Inverter.

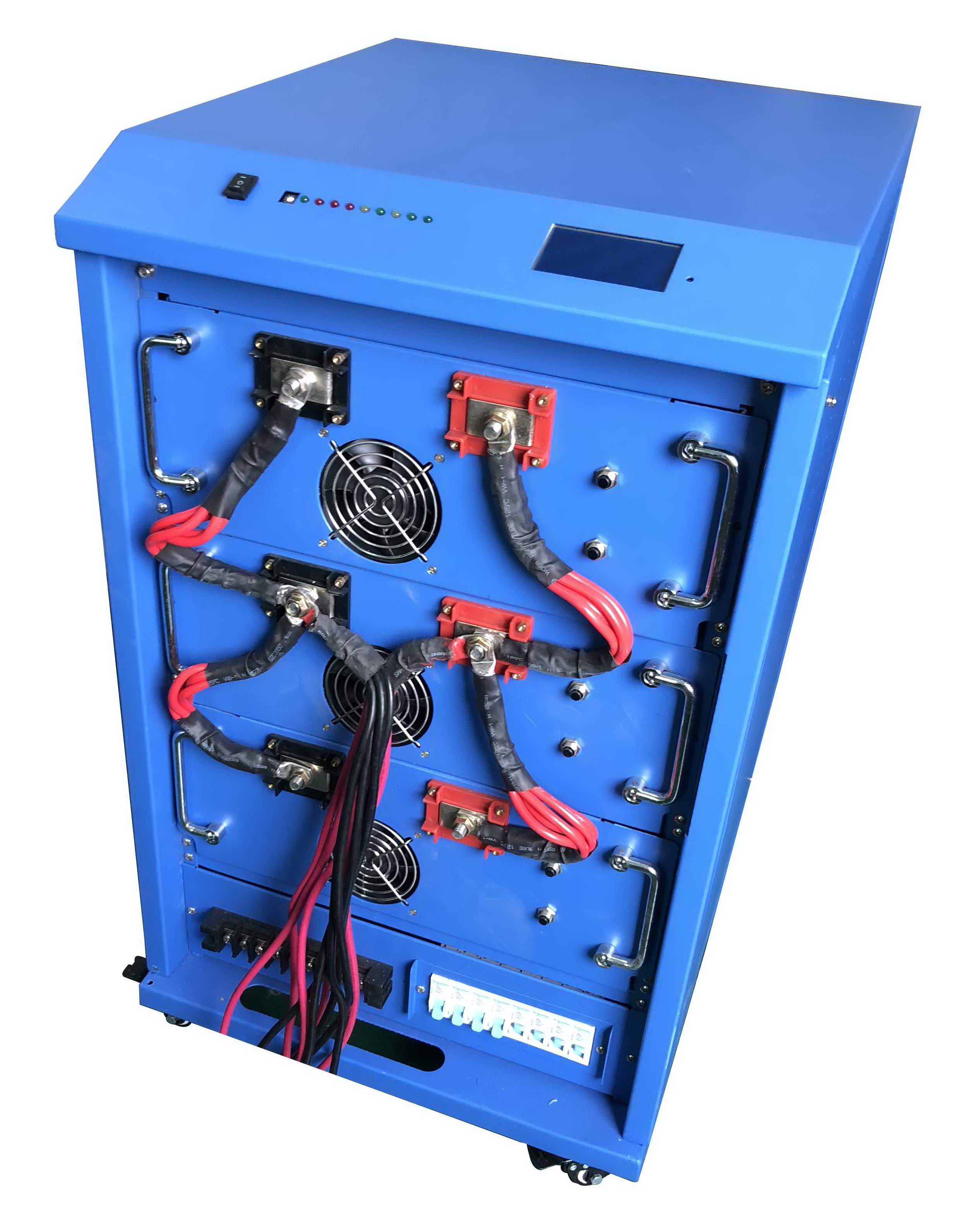

With front door removed.

Electrical Specifications:

Model

TPP 3kW

TPP 4.5kW

TPP 6kW

TPP 9kW

TPP 12kW

TPP 15kW

TPP 18KW

TPP 24kW

TPP 30kW

TPP 36kW

TPP 45kW

Inverter Output

Continuous Output Power

3'000W

4'500W

6'000W

9'000W

12'000W

15'000W

18'000W

24'000W

30'000W

36'000W

45'000W

Surge Rating (20s)

9'000W

13'500W

18'000W

27'000W

36'000W

45'000W

54'000W

72'000W

90'000W

108'000W

135'000W

Capable of Starting Electric Motor

3HP

4.5HP

6HP

9HP

12HP

15HP

18HP

24HP

30HP

36HP

45HP

Unbalance Load Acceptable

100%

DC Input Voltage

12.0/24.0/48.0Vdc

24.0/48.0Vdc

48Vdc

Output Waveform

Pure Sine wave/Same as input(Bypass mode)

Nominal Efficiency

89%(Peak)

Line Mode Efficiency

>95%

Power Factor

0.9-1.0

Connection mode

3-phase 4-wire system+Ground

Output voltage rating

3AC/N 400V/207V

Output phase voltage

230V AC

Output Voltage Regulation

±10% RMS

Output Frequency

50/60Hz ± 0.3Hz

Short Circuit Protection

Yes, Current Limit Function (Fault after 60ms)

Typical transfer Time

Typical 6-8ms,10ms(Max)

THD

< 3%（Linear Load）

DC Input

Nominal Input Voltage

12.0/24.0/48.0Vdc

24.0/48.0Vdc

48Vdc

Minimum Start Voltage

10.5Vdc / 11.0Vdc ( *2 for 24Vdc, *4 for 48Vdc)

Low Battery Alarm

10.5Vdc / 11.0Vdc ( *2 for 24Vdc, *4 for 48Vdc)

Low Battery Trip

10.0Vdc / 10.5Vdc ( *2 for 24Vdc, *4 for 48Vdc)

High Voltage Alarm & Fault

16.0Vdc ( *2 for 24Vdc, *4 for 48Vdc)

High DC Input Recovery

15.5Vdc ( *2 for 24Vdc, *4 for 48Vdc)

Low Battery Voltage Recover

13.0Vdc ( *2 for 24Vdc, *4 for 48Vdc)

Idle Consumption-Search Mode

< 100 W when Power Saver On

Charge

Input Voltage Range

Narrow: 96~132VAC / 184~253VAC;Wide: 70~135VAC / 140-270VAC;

Input Frequency Range

Narrow: 47-55±0.3Hz for 50Hz, 57-65±0.3Hz for 60Hz
Wide:40-70±0.3Hz for 50Hz/60Hz

Output Voltage

Same as input

Charger Breaker Rating (230Vac)

10A

20A

30A

40A

50A

60A

80A

Max Charge Rate

40A*3

60A*3

80A*3

120A*3

160A*3

100A*3

120A*3

80A*3

100A*3

120A*3

150A*3

1/2 for 24Vdc, 1/4 for 48Vdc

1/2 for 48Vdc

48Vdc

Power Factor

0.97 MAX

Over Charge Protection Shutdown

15.7V for 12Vdc ( *2 for 24Vdc, *4 for 48Vdc)

Battery type

Fast Vdc

Float Vdc

Gel U.S.A

14.0

13.7

A.G.M 1

14.1

13.4

A.G.M 2

14.6

13.7

Sealed Lead Acid

14.4

13.6

Gel Euro

14.4

13.8

Open Lead Acid

14.8

13.3

Calcium

15.1

13.6

De-sulphation

15.5 for 4hrs

Remote Control

Yes. Optional（LED/LCD）

Bypass & Protection

Input Voltage Waveform

Sine wave (Grid or Generator)

Nominal Voltage

230Vac

Low Voltage Trip

184V/154V±4%

Low Voltage re engage

194V/164V±4%

High Voltage Trip

253V/260V±4%

High Voltage re-engage

243V/270V±4%

Max Input AC Voltage

300VAC

Nominal Input Frequency

50Hz or 60Hz (Auto detect)

Low Freq Trip

Narrow: 47±0.3Hz for 50Hz, Wide:40±0.3Hz for 50Hz

Low Freq re engage

Narrow: 48±0.3Hz for 50Hz, Wide:42±0.3Hz for 50Hz

High Freq Trip

Narrow: 55±0.3Hz for 50Hz, Wide:70±0.3Hz for 50Hz

High Freq re engage

Narrow: 54±0.3Hz for 50Hz, Wide:68±0.3Hz for 50Hz

Output Short circuit protection

Circuit breaker

Bypass breaker rating(230Vac)

10A

20A

30A

40A

50A

60A

80A

Other

Communication methods

RS232/458/CAN

Display

LED+LCD
