Mobile Dual Axis-solar Tracker & Portable Power Stations.

This is our first professional bespoke Mobile Trailer Mounted Solar Power Station, the foundation for this build is X-SES Trailer fitted with a 5kW On-Grid Hybrid Inverter, 30.76kWh (2x 16.38kWh) Stackable Energy Storage and the Customers 6kW Caged Generator to provide 24/7 Power security !

We have just finished the Manufacturing a bespoke 4 Panel Slide-out Solar Racking with Two Fixed 720W Solar Panels in the centre, and two 720W Slide-out Solar Panels, one on each side, providing a 2.88kW Solar Array.

This Behind the Meter Power Station, this is exactly what all Solar & Battery Systems are, before any connection to the State Grid if it's there.

It is legal to connect this Power Station to any Premises using a 32A Wall Plug or 15A Wall Plug, as it is no difference to a common fixed Solar system with Batteries, other than being Mobile.

If you want to Export Power into the State Grid, you need to do this Legally by using an ON-Grid inverter with Anti-islanding function, in other words, an Inverter is NOT allowed to Export Power into the State Grid unless it has Anti-islanding function, as if the State Grid has an outage, Workers repairing the lines miles down the road can be Electrocuted by Voltage been illegally Exported !

If interested in Purchasing a Trailer Mounted DART Power Station, Ordered Here.

There are also Unique Mobile SOLAR Generators, these can be Order Here.

Below images are of a bespoke Mobile Trailer mounted DART-4 Power Station;

EX-SES Trailer measurements, to fit a Mast Hinge to.	Batteries fitted onto a commercial 4x Wheeled Battery Trolley.	2x 16.38kWh (30.76kWh) 320Ah, XD LiFePO4 Batteries Wired in Parallel, and Operational.

Installed a Hinge on a sheet of Marine Plywood, that just makes it easier to install the Inverter.	Testing the Hinge & Inverter Clearance, to give easy access to wiring.	Battery & Inverter Installed.

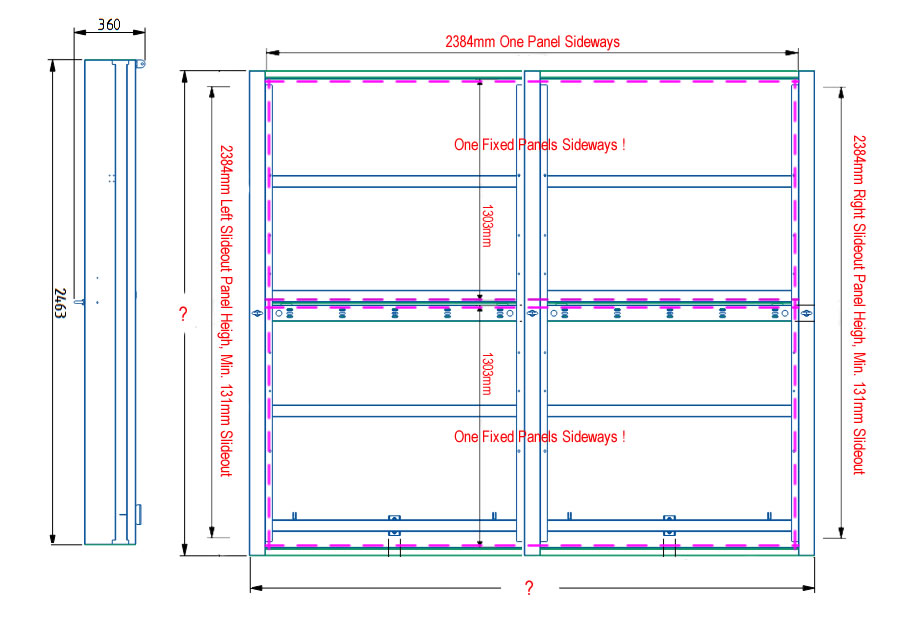

Power Distribution Board for Generator input & multiple 240V Output Power.	Racking Design for 4x 735W Slide-out Solar Panel Racking.	Pre-Manufacturing 4x Panel Slide-out Solar Panel Racking.

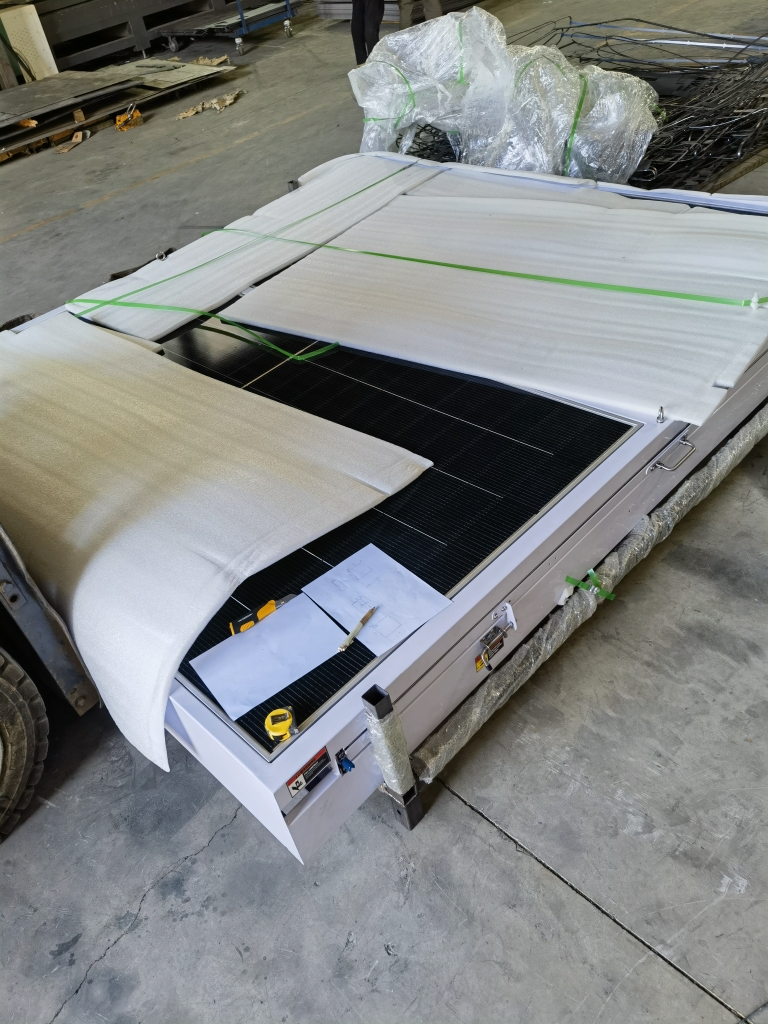

Above is a Standard small three Panel Slide-out Solar Racking.	Our Latest Design 4x Panel 735W Solar Panel Racking, with Two that Slide-Out.	Finished bespoke Slide-out Solar Racking ready to Fit the Vertical Mast & Double Slew Drive.



This bespoke Mast Hinge is currently being manufactured, and will be installed between the Toolboxes, to Raise & Lower the Panel Racking for Transportation.	Our bespoke Mast Hinge, with Double Slew Drive & Purloin, the Slide-out Solar Racking is fitted to.	5" Double Slew Drive & Purloins.

This is the recommended Power Board we can supply with each Mobile Power Station	A Single Power Board Outlet we can supply with Mobile Power Station	Our Polish DART Controller, uses Quality Automotive MOSFETS instead of Relays.

Switch and 15A Wall Mounted Power Point.	240V, 3 Pin, 15A Wall Mounted Power Point to connect Single Phase Power Cable into a Home or Premises.	240V, 3 Pin, 15A Wall Mounted Power Point to connect Single Phase Power from Plug.

240V, 3 Pin, 15A Waterproof Plug for Single Phase Power into the Wall plug above.	This 240V, 3 Pin, 15A Waterproof Plug connects Single Phase Power into the Wall plug above.

240V, 32A, 3Pin Waterproof Output Power Point, to connect a Single Phase Cable from Power Station into a Home or Premises.	240V, 32A, 3Pin Waterproof Output Power Point, to connect a Single Phase Cable from Power Station into a Home or Premises.	240V, 32A, 3Pin Waterproof Input Power Point to connect Single Phase Power into Home or Premises.
