Mobile Dual Axis-solar Tracker & Portable Power Stations.

This is our first 2025 Mobile Solar Power Station, it will be Towed to QLD, Parked and set-up to Power Two, Two Bedroom Mobile Cabins on an unpowered Beachfront site !

The Trailer is fitted with a 5kW On-Grid Hybrid Inverter, 30.72kWh (2x 15.36kWh) of Energy Storage and the Customers 6kW Caged Generator to provide 24/7 Power security !

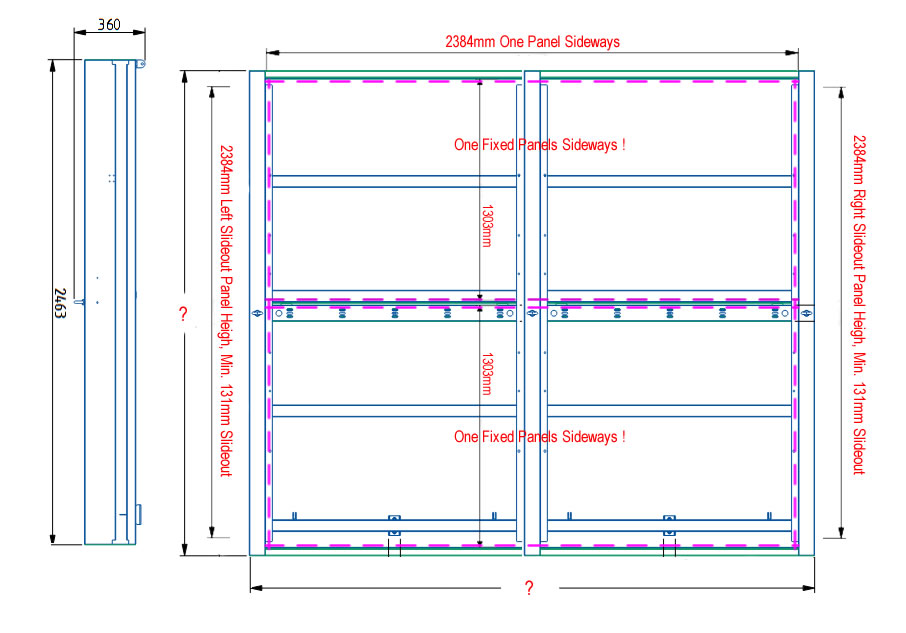

We are currently Manufacturing a bespoke 4 Panel Slide-out Solar Racking with Two Fixed 720W Solar Panels in the centre, and a 720W Slide-out Solar Panels on each side, providing a 2.88kW Solar Array.

This Behind the Meter Power Station, this is exactly what all Solar & Battery Systems are, before being connected into the State Grid if it's there.

You can legally connect this Power Station to any Premises using a 32A Wall Plug or 15A Wall Plug.

If you want to Export Power into the State Grid, you need to do this Legally by using an ON-Grid inverter with Anti-islanding function, in other words, an Inverter is NOT allowed to Export Power into the State Grid unless it has Anti-islanding function, as if the State Grid has an outage, Workers repairing the lines miles down the road can be Electrocuted by Voltage been illegally Exported !

If interested in Purchasing a Trailer Mounted DART Power Station, Fill in this Form.

There are also Unique Mobile Solar Generators that can be Order Here.

Below images are of Mobile Trailer mounted DART-4 Power Station;

Split Toolbox Trailer dimensions, for Manufacturing a Mast Hinge.	The Mast Hinge will be installed between the Toolboxes.	Batteries fitted into Trailer on commercial 4x Wheeled Trolley.

Installed a Hinged sheet of Marine Plywood & Inverter Hang Bracket.	Testing the Hinge & Inverter Clearance, to give easy access to wiring.	Battery & Inverter Installed.

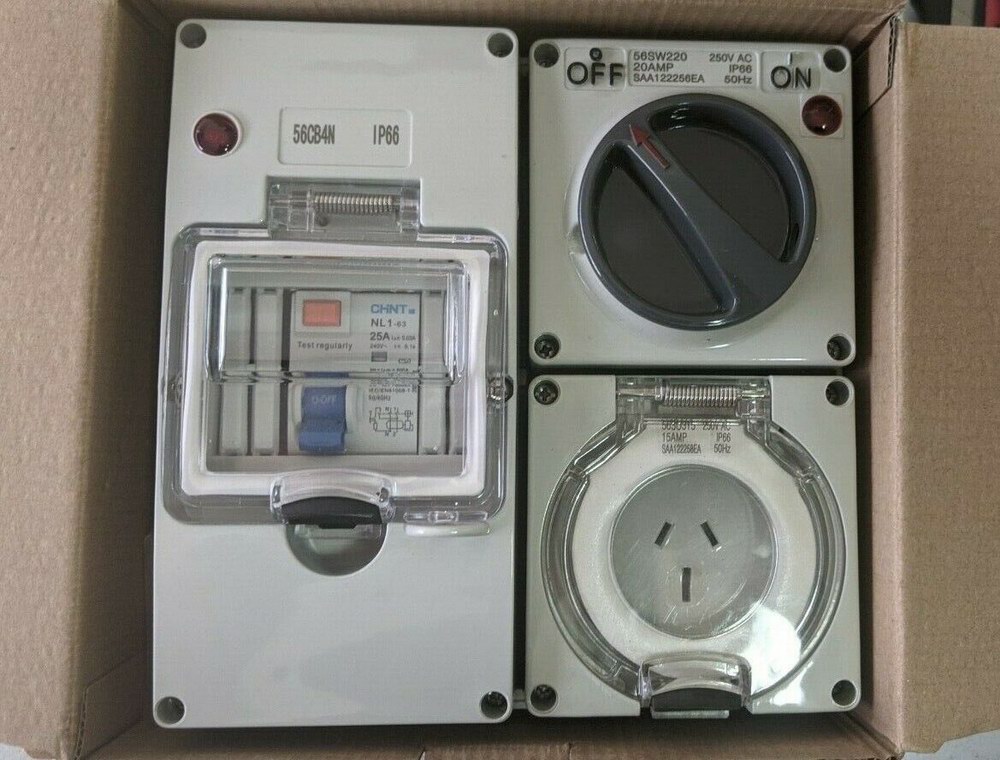

2x 15.36kWh (30.72kWh) 300Ah, XD LiFePO4 Batteries Wired in Parallel, and Operational.	Power Distribution Board for Generator input & multiple 240V Output Power.	Power Distribution Board for Generator input & multiple 240V Output Power.

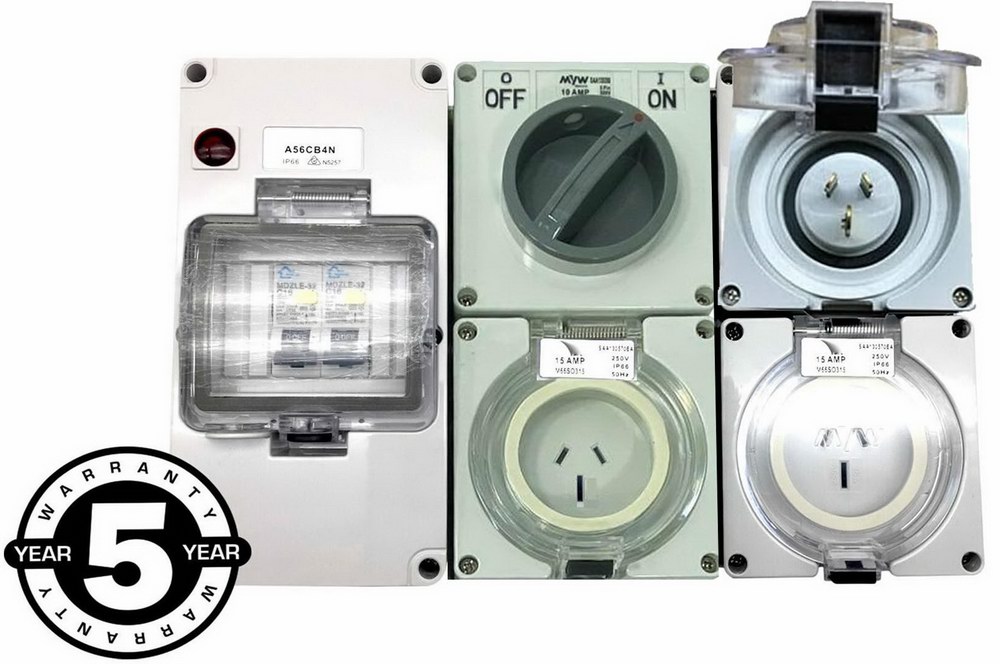

This is the recommended Power Board we can supply with each Mobile Power Station	Another recommended Power Board we can supply with each Mobile Power Station	Our Polish DART Controller, uses Quality Automotive MOSFETS instead of Relays.

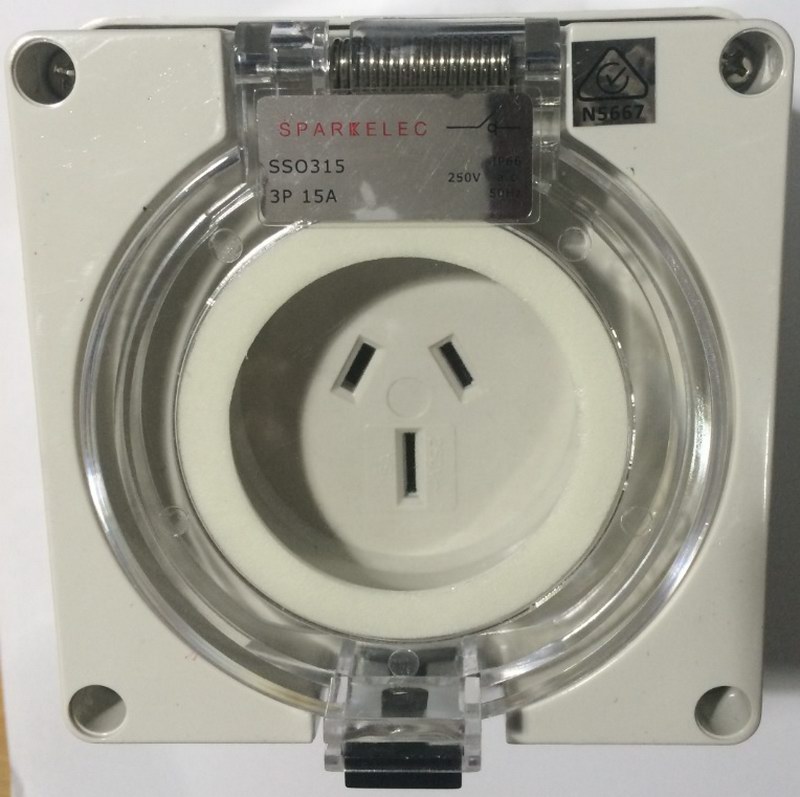

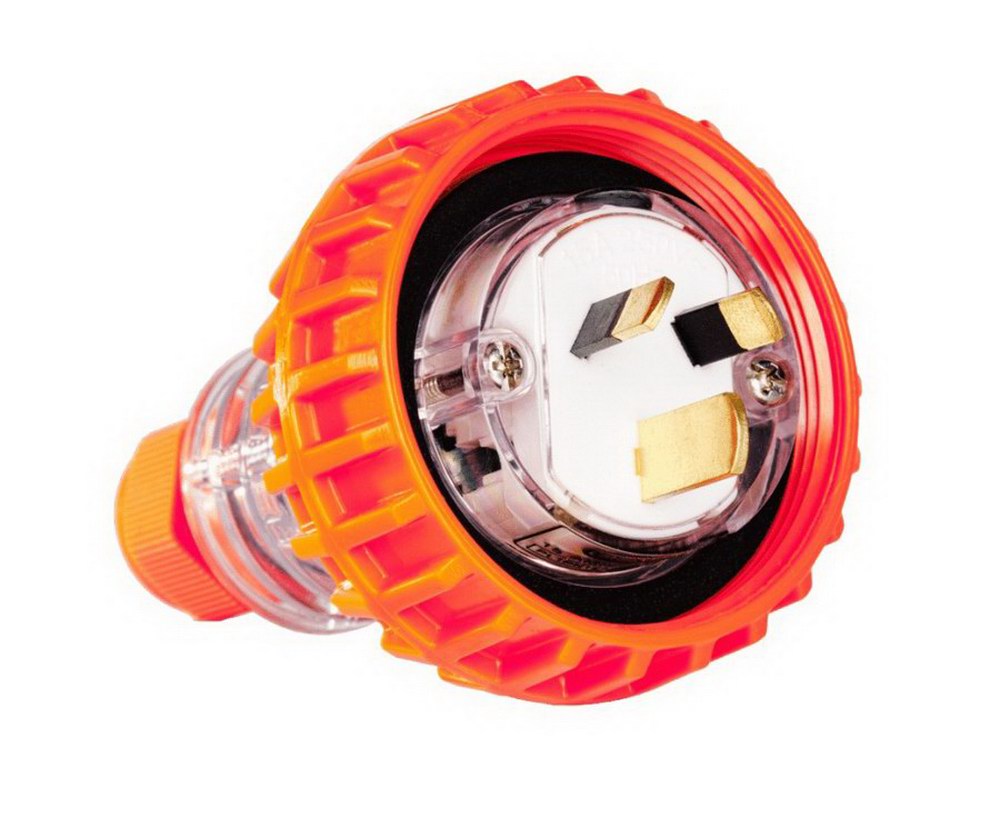

240V, 3 Pin, 15A Wall Mounted Power Point to connect Single Phase Power Cable into a Home or Premises.	This 240V, 3 Pin, 15A Waterproof Plug connects Single Phase Power into the Wall plug to the left.

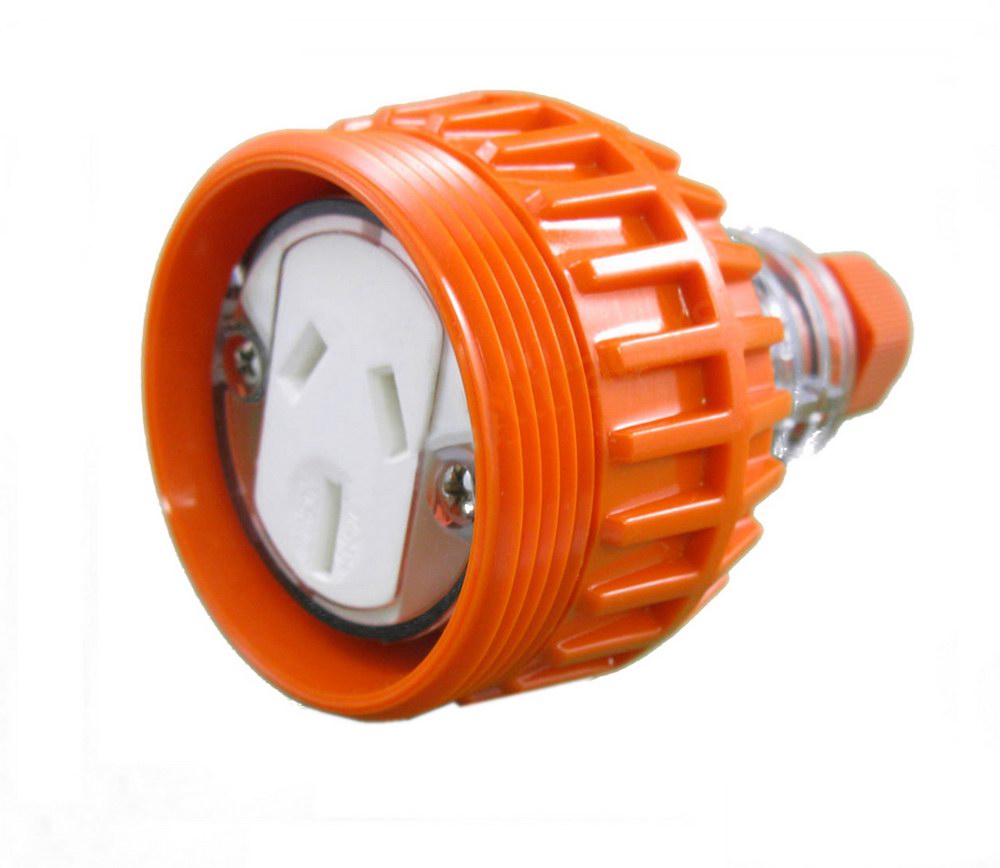

240V, 3 Pin, 15A Wall Mounted Power Point to connect Single Phase Power from Plug.	240V, 3 Pin, 15A Waterproof Plug for Single Phase Power into the Wall plug to the left.

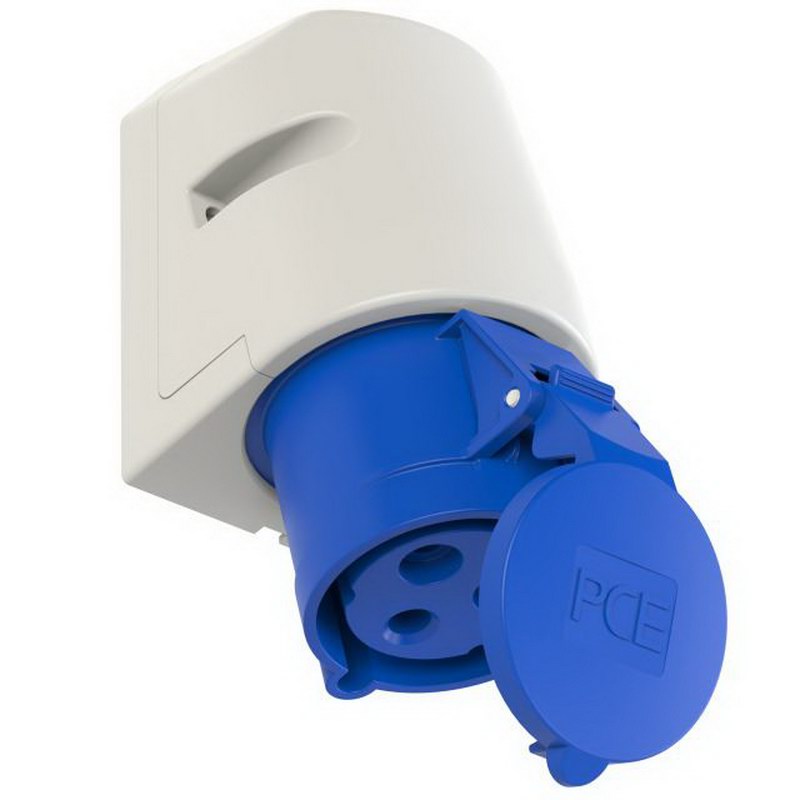

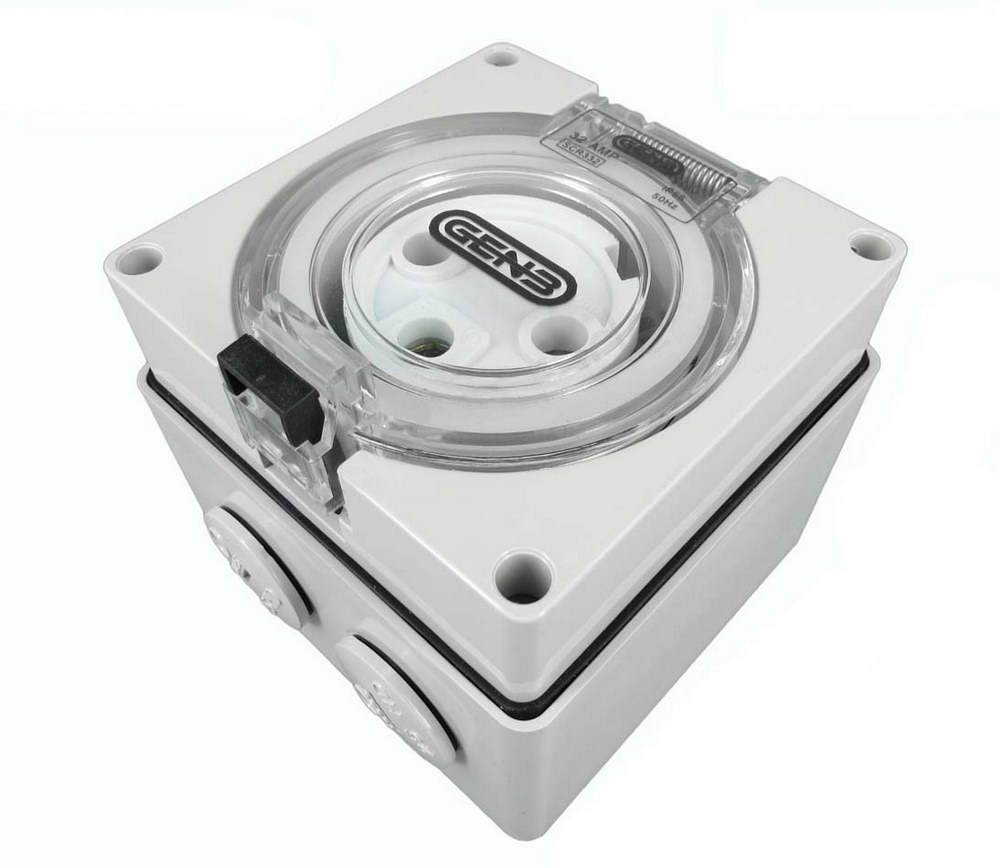

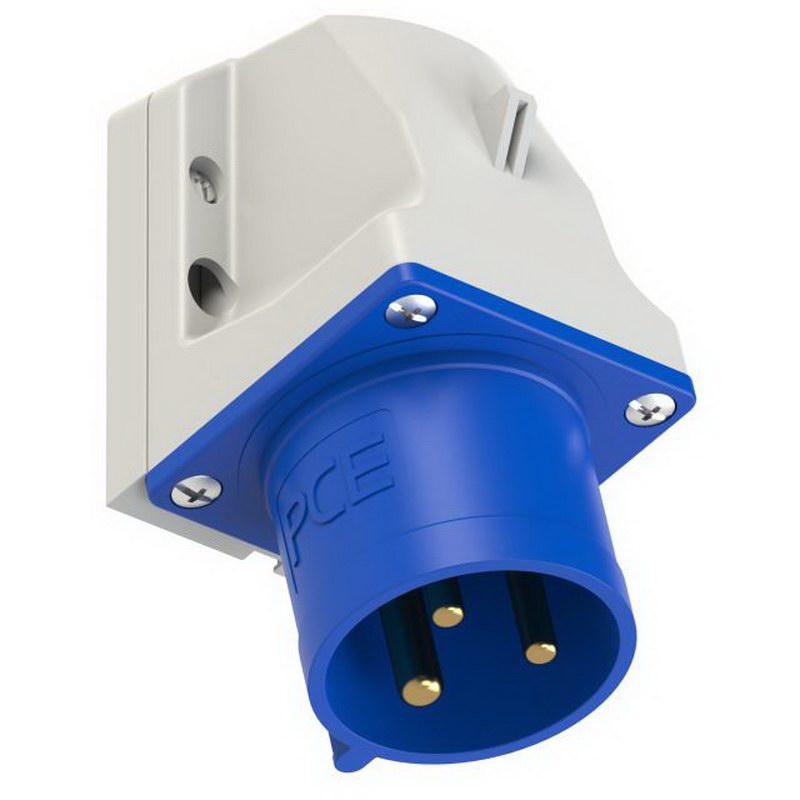

240V, 32A, 3Pin Waterproof Output Power Point, to connect a Single Phase Cable from Power Station into a Home or Premises.	240V, 32A, 3Pin Waterproof Output Power Point, to connect a Single Phase Cable from Power Station into a Home or Premises.	240V, 32A, 3Pin Waterproof Input Power Point to connect Single Phase Power into Home or Premises.
