DART-15 Solar Tracking Unit (47m2 Racking)

Fitted with 15x 380W panels will Generate 66kWh/p 10hr Day .
Fitted with 15x 580W panels will Generate 82kWh/p 10hr Day.
Each DART Unit Fitted with 15x 700W panels will Generate 105kWh/p 10hr Day .

Ideal for Commercial & Industrial energy consumption.

This sized DART module supplies enough Energy for a large Residence or Semi-Commerecial Business.

DART-15 with 380W Solar Panels.

DART-15 with 380W Solar Panels Accessible from the back of a Ute.

DART-15 with 200cm Main Mast.

380W BlueSun Solar Panels.

Under the Racking.

24V DC Anemometer (Wind Sensor).

Oversized Trench - Undersized Conduit.

Foundation Cages Made in Australia.

The Main Mast levied.

Setting up the Main Mast Level.

The Installation of the DART Units.

270cm Flange Plate.

DART-15 Spacing Brisbane Latitude.

DART-15 Spacing Sydney Latitude.

DART-15 Spacing Melbourne Latitude.

The Angles or Rotation of our DART Racking.

For those looking to Dig or Auger there own Foundation holes;

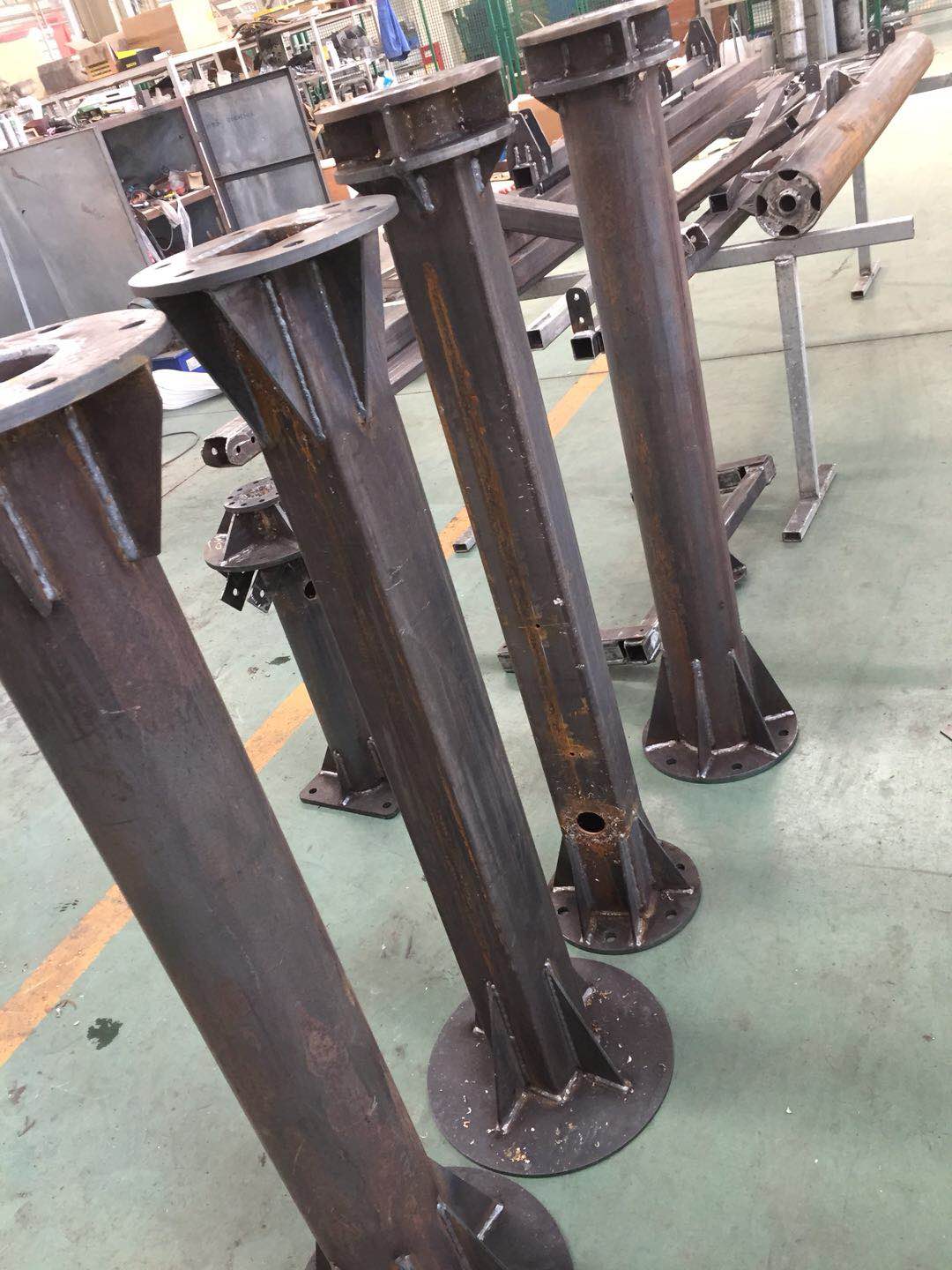

A DART-15 Double Flanged Foundation Pole requires a minimum 90cm Diameter Foundation Hole.
Tripod Braced double Flanged Foundation Pole requires 3 additional Trenches for Bracing.
A Caged re-bar Foundation requires a 90cm Diameter Foundation Hole.

NB: It is important to allow an additional 30cm Hole depth, this provides a 30cm Cement Bed below the bottom Flange Plate to take the vertical load of the DART.

We advisable to install a Earth/Ground spike at the same time, old school would be a Re-bar or Star Picket.

The Below information is required before we manufacture a DART unit to your Specification;

1. Required Panel Clearance from the ground, when Racking is at 60 degree tilt ?

2. Tell us how many kWh of Energy you want to Generate per Day ?
